Evaluation Board for CGGP.18.2.A.02 GPS/GALILEO/GLONASS 18*18*2mm Dual-Band Patch Antenna

CGGPD.18.D

Evaluation Board for Passive GPS/GLONASS/GALILEO Patch Antenna
1575-1610MHz
3dBi Peak Gain (on 70*70mm ground-plane)
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Evaluation Board Dimension: 70*70mm

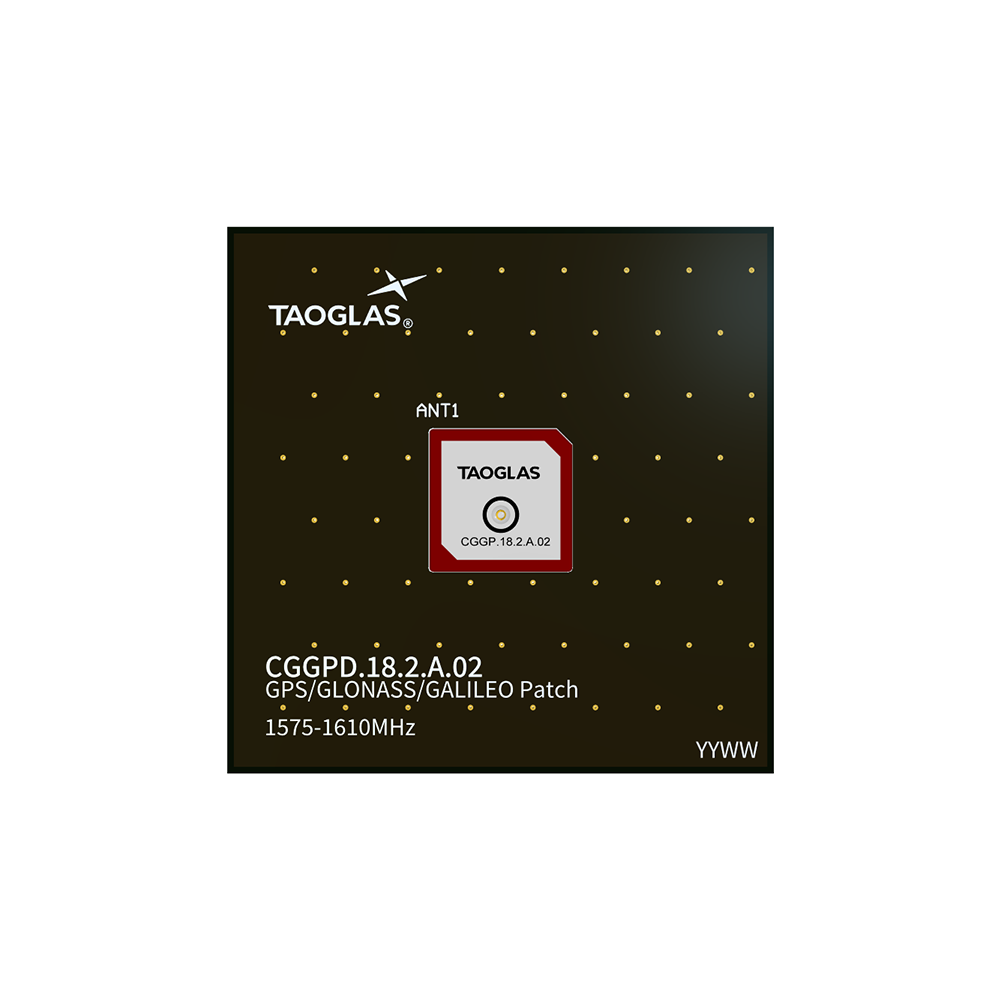

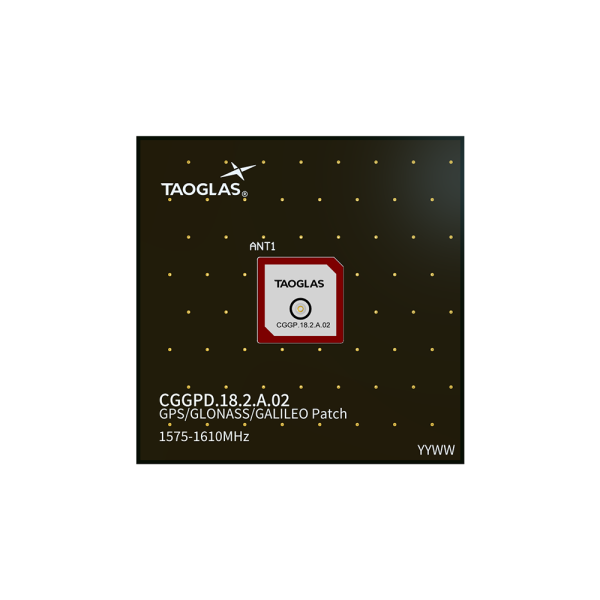

Image CGGPD.18.D

CGGPD.18.D

Evaluation Board for CGGP.18.2.A.02 GPS/GALILEO/GLONASS 18*18*2mm Dual-Band Patch Antenna

Overview

Evaluation Board for CGGP.18.2.A.02 GPS/GALILEO/GLONASS

The CGGP.18.2.A.02 is a 18mm ceramic GPS/GLONASS/GALILEO embedded passive patch antenna, with a 2mm low profile. It is designed for vehicle telematic applications as well as other M2M/IoT devices. Typical applicable industries are transportation, defense, marine, agriculture, and navigation. The antenna has been tuned and tested on a 70 x 70 mm ground plane, working at GPS 1575.42MHz and GLONASS 1602MHz, with 3.23dBi gain and 3.53dBi gain, respectively. The low profile design makes this antenna perfect for applications where space is limited. It can be easily through-hole mounted on PCB via pin.

Double-sided adhesive on the bottom of the patch helps to keep it in place while undergoing mounting. The CGGP.18.2.A.02 is manufactured and tested in a TS16949 first tier automotive approved facility. Like all antennas, at least some detuning will occur when placed in a different device environment or on a different ground-plane. For large volume GPS/GLONASS/GALILEO projects where performance is paramount, tuning for customer-specific device environment and ground-plane size is needed, so custom tuned patch antennas should always be used. Taoglas can also provide different pin length for these antennas, all subject to potential NRE and MOQ. For more details please contact your regional Taoglas sales office.
