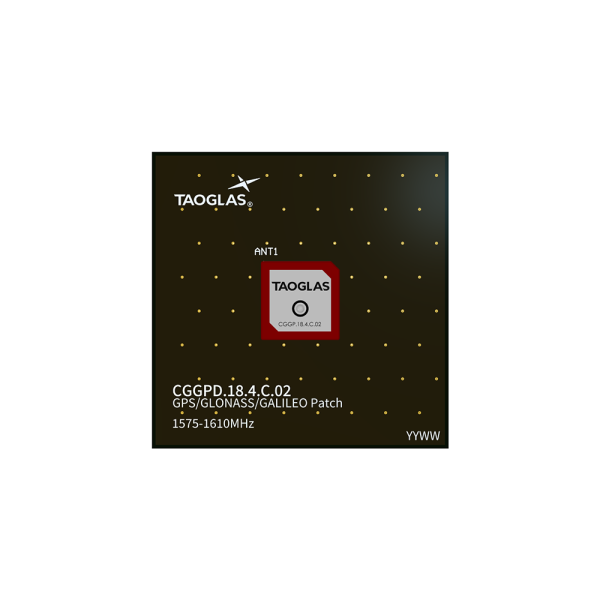

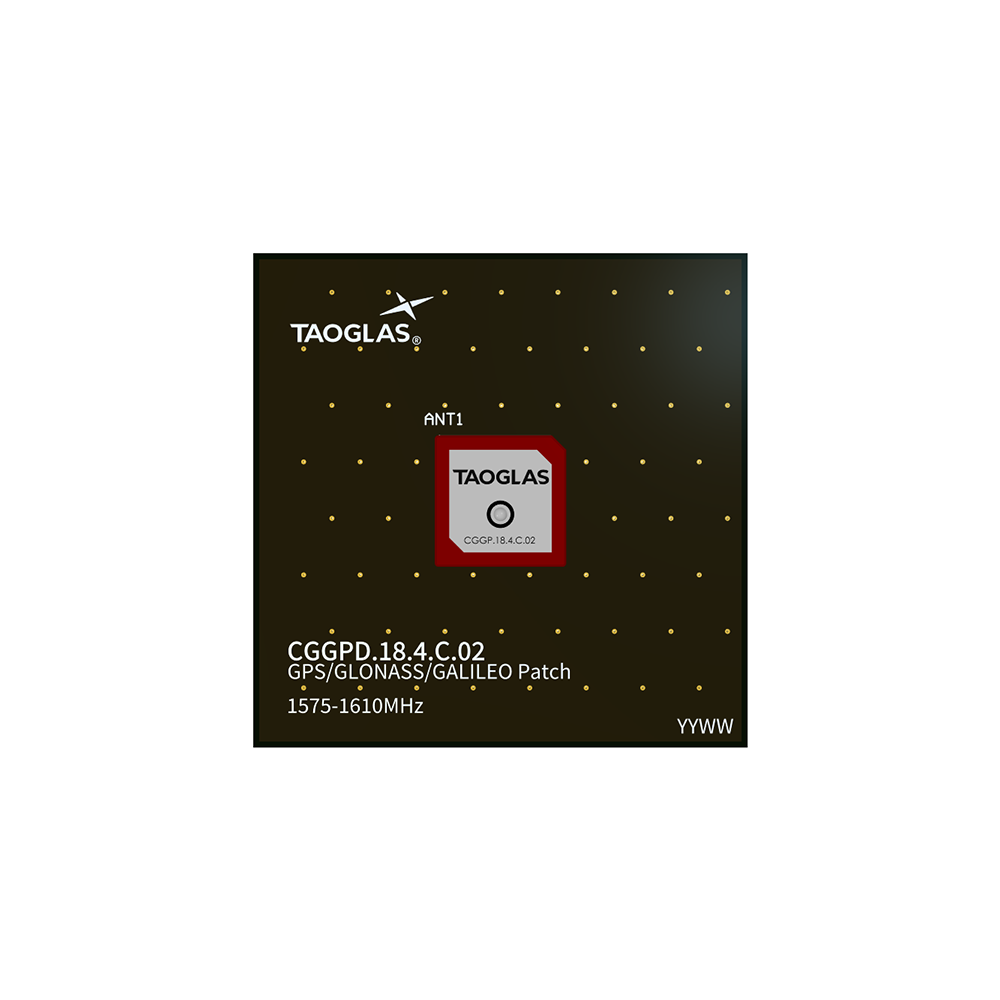

Evaluation Board for GPS/GLONASS Patch Antenna for Automotive Applications
Manufactured and tested in an IATF16949 first tier automotive approved facility, this antenna has been tuned for a center position on a 70mm*70mm ground-plane. The CGGP.18.4.C.02 is an 18mm ceramic GPS/Glonass patch antenna, by means of a double resonance design. It has a unique wide-band operation over the whole operating bands of GPS and Glonass systems from 1575MHz to 1610MHz. It is mounted via pin and double-sided adhesive for ease of installation.
For further optimization to customer-specific device environments where positioning is off-center or on different ground-plane sizes, custom-tuned patch antennas can be supplied. For more details please contact your regional customer services office.
