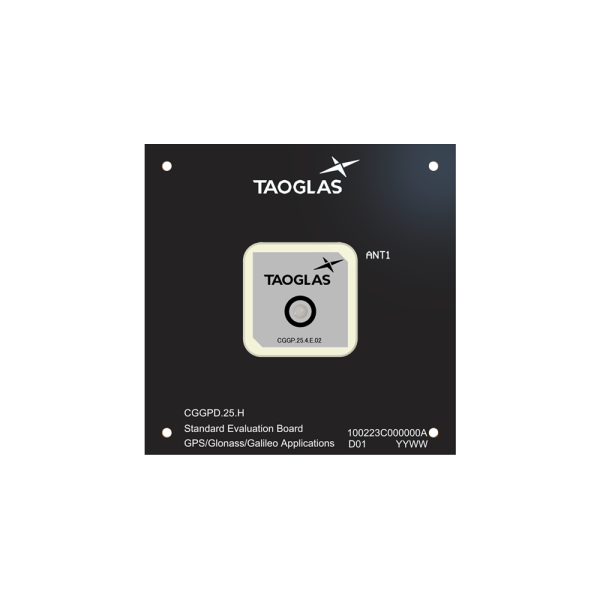

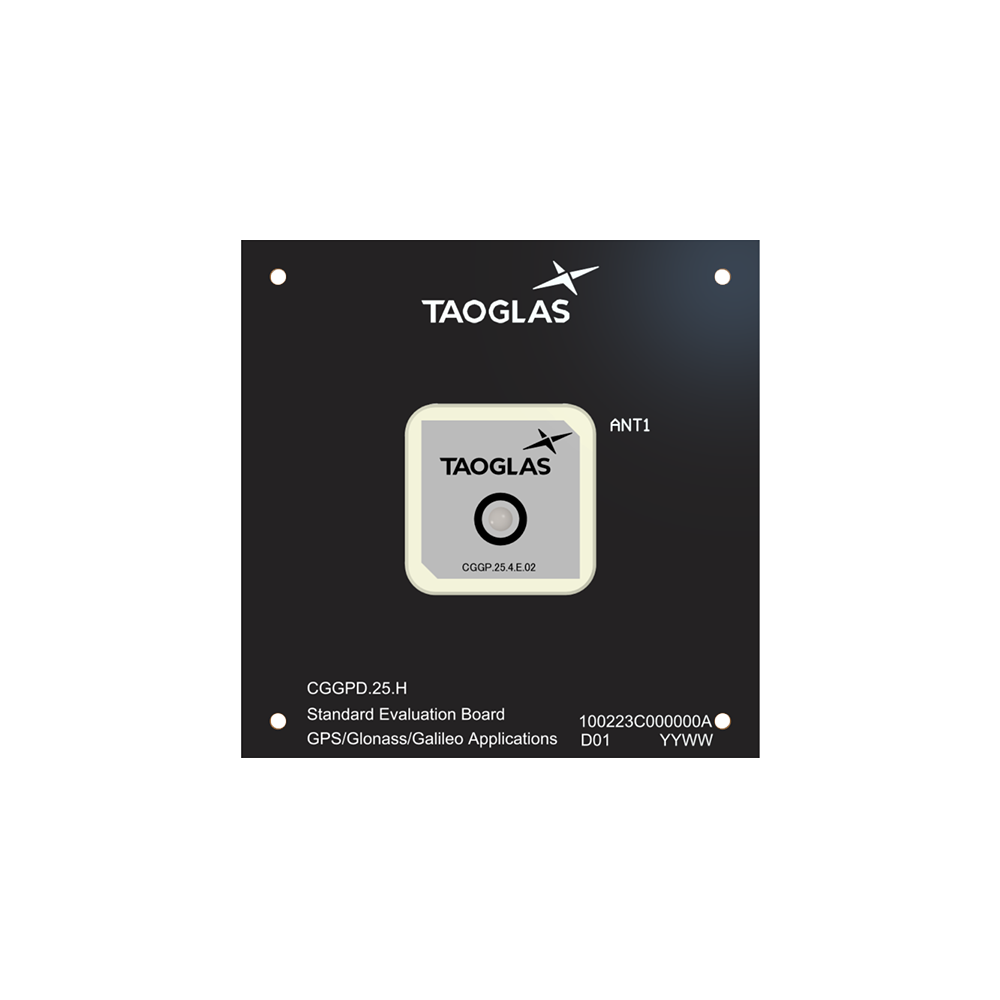

Evaluation Board for Passive GPS/GLONASS/Galileo Patch Antenna
1575-1610MHz
5dBi Peak Gain (on 70*70mm ground-plane)
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Evaluation Board Dimensions: 70*70mm
Evaluation Board for High-Efficiency Antenna for GPS and RTK
The CGGP.25.4.E.02 is a is a high-efficiency antenna for GPS and RTK applications. The 25*25*4mm embedded ceramic GPS/GLONASS/GALILEO Patch antenna. It features a double resonance design at GPS/GALILEO and GLONASS bands, 1575.42 MHz, and 1602 MHz respectively. This antenna has been tuned for a center position on a 70mm*70mm ground plane. Return loss is -28 dB at 1575.42MHz and -22 dB at GLONASS. Overall the antenna has greater than 60% efficiency.
For further optimization to customer-specific device environments where positioning is off center or a different ground-plane size, custom-tuned patch antennas can be supplied. For more information, please contact your regional customer services office.
Name | Value |
---|---|
For Use With/Related Products | CGGP.25.4.E.02 |
Technology | Evaluation Boards, GNSS |
Width (mm) | 70 |
Length (mm) | 70 |
Height (mm) | 0.3 |
Materials | Ceramic |
