Evaluation Board for CGGP.35.3.A.02 GPS/GLONASS/GALILEO 35*35*3.5mm Dual-Band Patch Antenna

CGGPD.35.A

Evaluation Board for Passive GPS/GLONASS/GALILEO Patch Antenna
1575-1610MHz
1.5dBi Peak Gain
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Evaluation Board Dimensions: 70*70mm

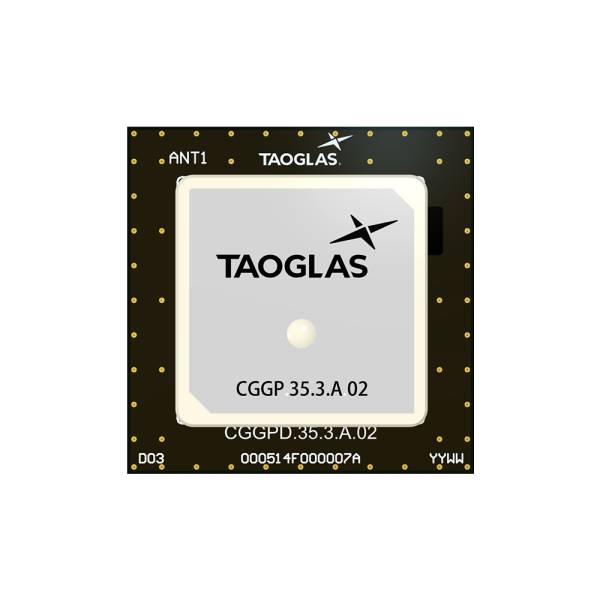

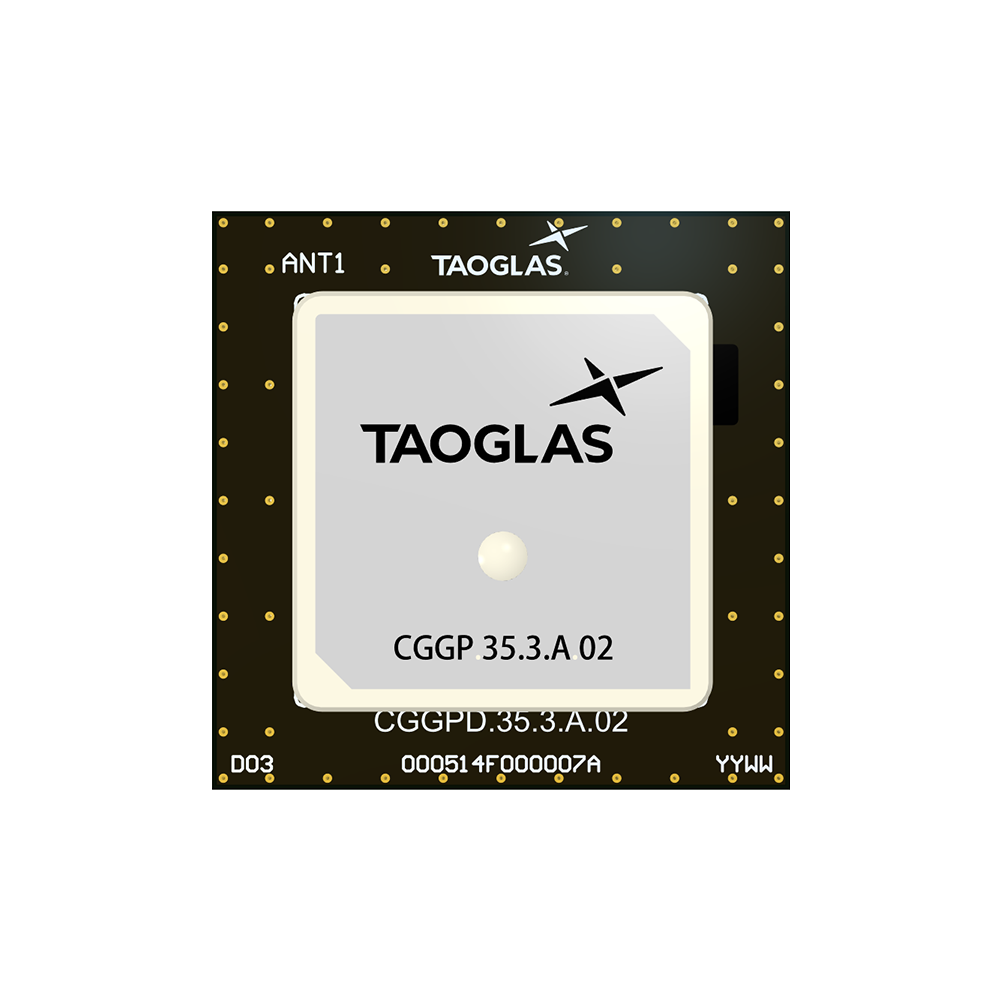

Image CGGPD.35.A

CGGPD.35.A

Evaluation Board for CGGP.35.3.A.02 GPS/GLONASS/GALILEO 35*35*3.5mm Dual-Band Patch Antenna

Overview

Evaluation Board for CGGP.35.3.A.02 GPS/GLONASS/GALILEO 35*35*3.5mm Dual-Band Patch Antenna

This 35mm ceramic GPS/GLONASS/GALILEO patch antenna, by means of a double resonance design, has unique wide-band operation over the whole operating bands of GPS/GALILEO and GLONASS systems from 1575MHz to 1610MHz. It is mounted via pin and double-sided adhesive. This antenna has been tuned for a center position on a 50mm*50mm ground-plane. It is manufactured and tested in a TS16949 first tier automotive approved facility.

For further optimization to customer-specific device environments where positioning is off-center or on different ground-plane sizes, custom-tuned patch antennas can be supplied. Taoglas can also provide different pin lengths for these antennas, subject to potential NRE and MOQ. For more details please contact your regional Taoglas sales office.
