Evaluation Board for DXP.02.A – SMD L1/L2/L5 SAW Multi-Band GNSS Diplexer


L5 1176.45 / L2 1227 / L1 1575.42 MHz
SAW Diplexer SMD Direct Mount
Evaluation Board Dimensions 23.16 x 24mm
Low Insertion Loss In band
High Isolation Port to Port
RoHS and REACH Compliant

Image DXPD.02.A

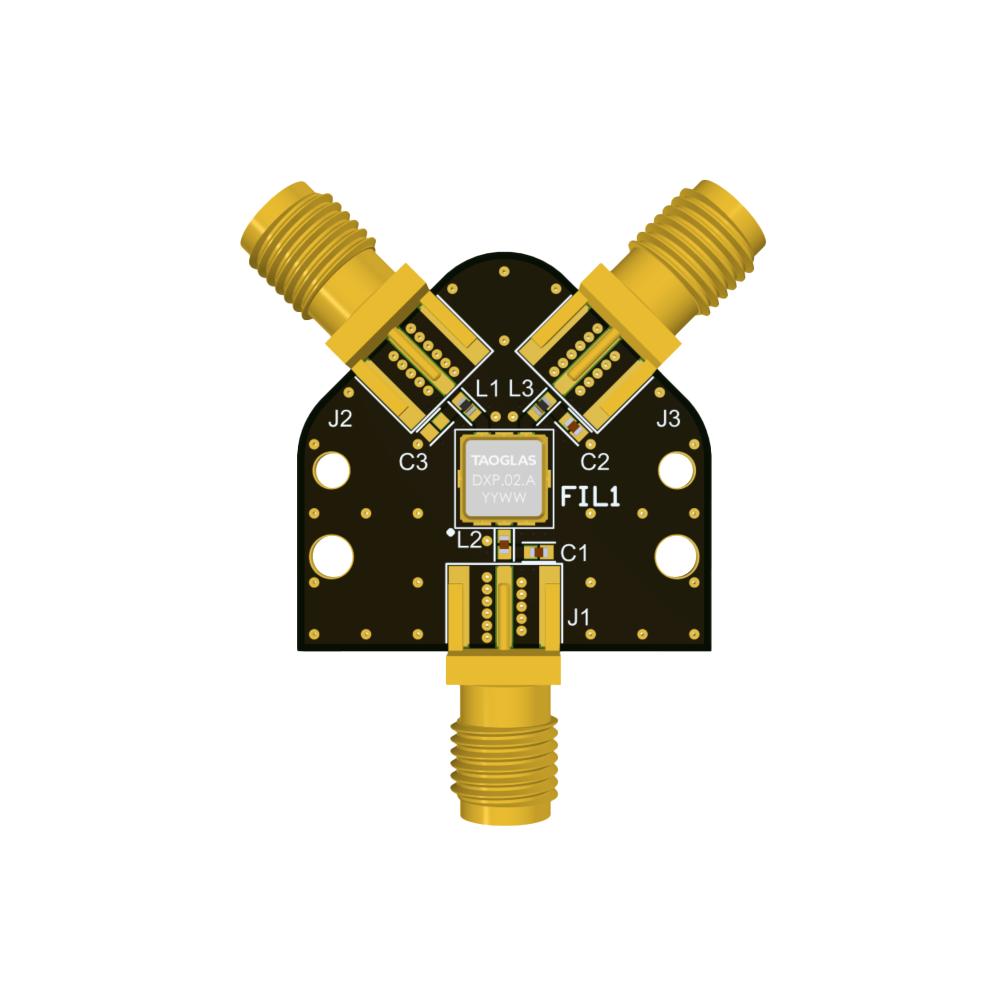

Evaluation Board for DXP.02.A – SMD L1/L2/L5 SAW Multi-Band GNSS Diplexer


Evaluation Board for Multi-Band GNSS Diplexer

The Taoglas DXP.02.A is a compact SAW diplexer for use in any navigation system application using the GPS/GALILEO L1, L2 & L5 bands.

The diplexer is designed to function as both a bandpass filter for each band and to either split one path into three or to combine the bands back into one RF feed. For example, a customer who wanted to use passive antenna elements would need to implement a diplexer in some cases to split the bands out into separate paths. It is also designed to isolate and reject any unwanted GPS signals from getting to the application port.

It is housed in a compact 5*5*1.7mm over-molded laminate package and is easy to integrate using SMD process mounting directly onto the target PCB.

Technical Specification
Name Value
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
