Evaluation Board for GPS/GLONASS/Galileo/BeiDou 2mm Low Profile Embedded 35mm Patch Antenna

CGGBPD.35.2.A

Evaluation Board for GPS/GLONASS/GALILEO/BeiDou

Pin Type, Low Profile, Ceramic Patch Antenna
Manufactured in an IATF16949 Approved Facility
Evaluation Board Dimensions: 70*70mm
RoHS & REACH Compliant

Taoglas can also provide different pin lengths for these antennas, subject to potential NRE and MOQ. For more details please contact your regional Taoglas sales office.

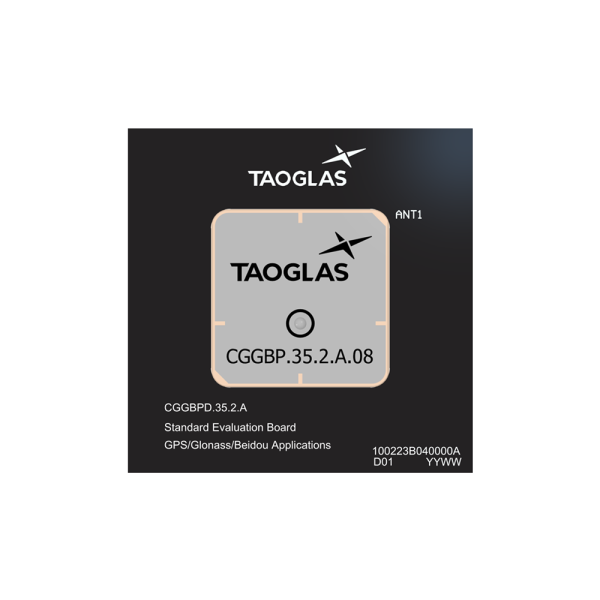

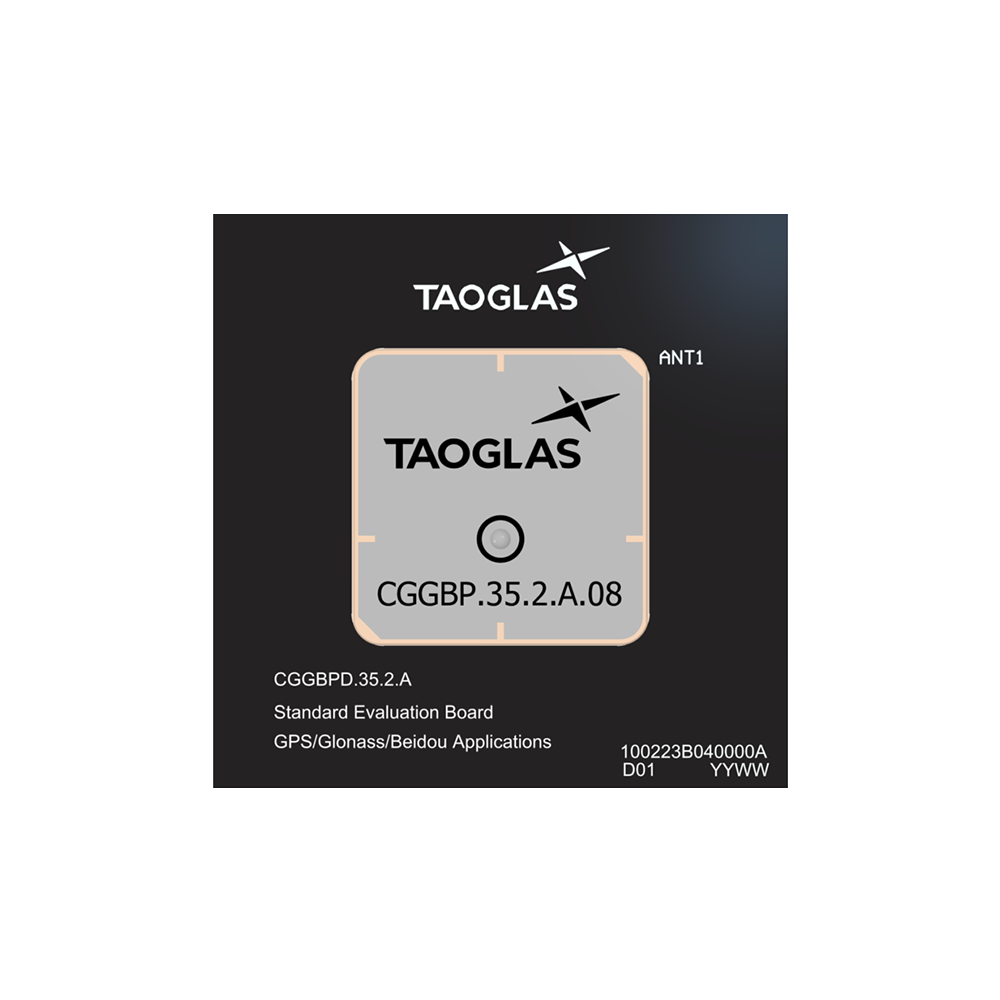

Image CGGBPD.35.2.A

CGGBPD.35.2.A

Evaluation Board for GPS/GLONASS/Galileo/BeiDou 2mm Low Profile Embedded 35mm Patch Antenna

Overview

Evaluation Board for Low Profile, High-Performance GNSS Antenna

The CGGBP.35.2.A.08 is a low profile, high-performance GNSS antenna. It is a ceramic GNSS L1 GPS/GLONASS/GALILEO/BeiDou embedded passive patch antenna, with a low profile of 2mm thickness. It is designed for professional applications in-vehicle automotive navigation devices as well as other M2M devices. Typical uses are in transportation, defense, marine, agriculture, and navigation. Compared to using a smaller antenna, this will translate into the GNSS system having much higher location accuracy, improved reliability of lock-in urban areas, better signal reception, with more satellites acquired and a quicker time to first fix.

The patch is mounted via pin and double-sided adhesive. While the antenna will work very well in most device environments (Note: cannot be covered with metal enclosure), tuning and further optimization of this antenna to different ground-planes and enclosures can be done if required, also including a pin length change, subject to possible NRE and minimum order quantity.

Contact your local Taoglas sales office for more details.





Technical Specification
Name Value
For Use With/Related Products CGGBP.35.2.A.08
Technology GNSS
Materials Ceramic
Length (mm) 70
Width (mm) 70
Height (mm) 0.3
Weight (g) 1
