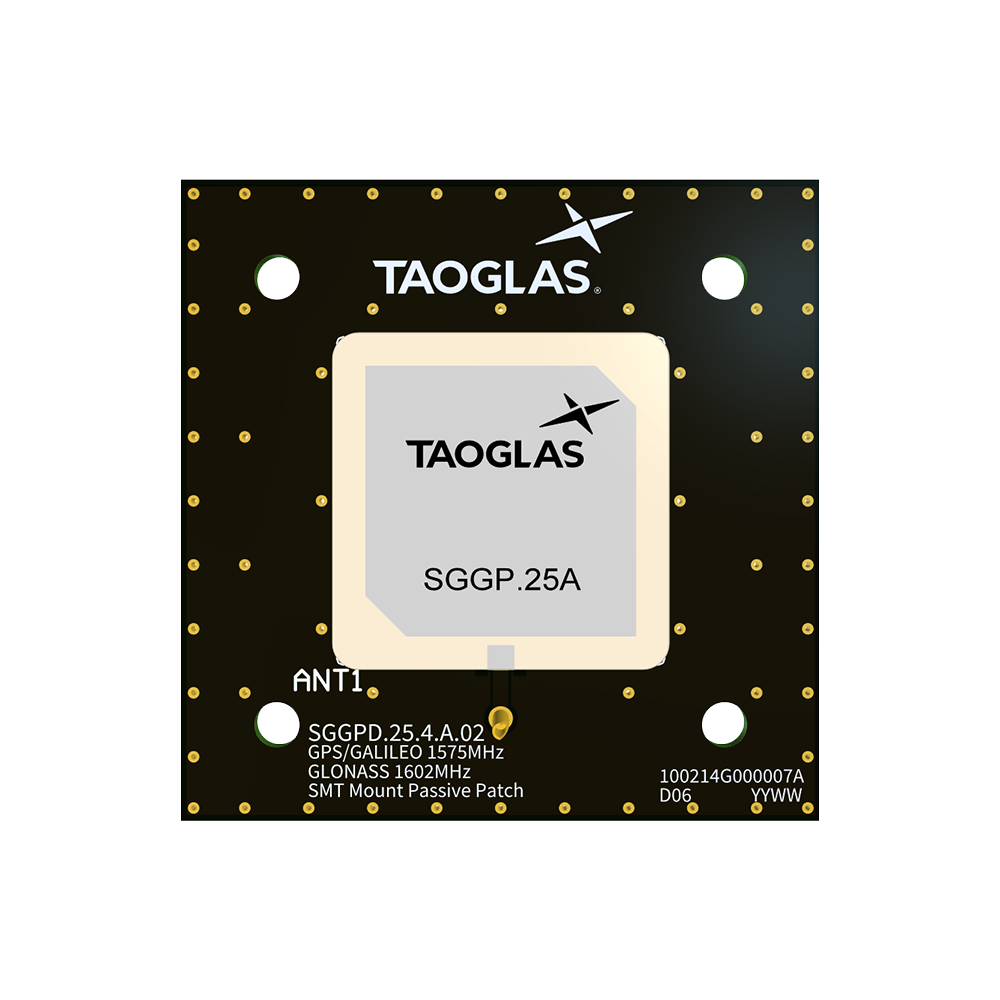

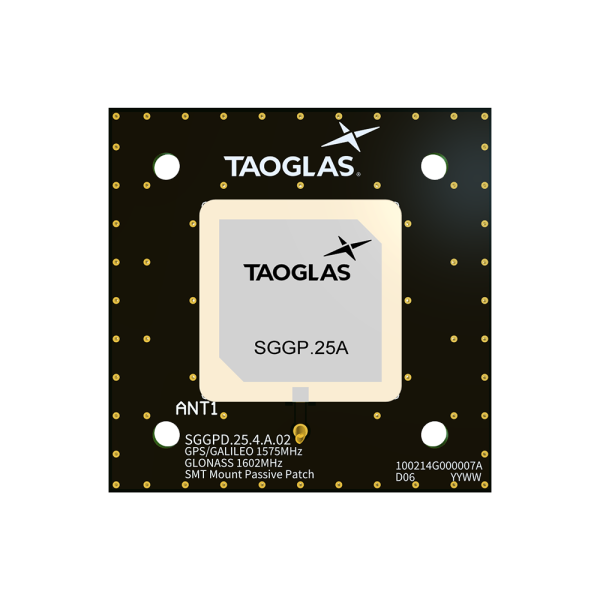

Evaluation Board for SGGP.25.4.A.02 GPS/GLONASS/GALILEO 25*25*4mm SMD Mount Patch

SGGPD.25.A

Evaluation Board for SGGP.25A Series
SMD Mount Passive GPS-GLONASS-GALILEO Patch Antenna
GPS/GALILEO 1575MHz
GLONASS 1602MHz
Single Feed SMD
Delivered on Tape and Reel and mounted during standard reflow process
Evaluation Board Dimensions 50*50mm

Buy Now Get Quote
Image SGGPD.25.A

SGGPD.25.A

Evaluation Board for SGGP.25.4.A.02 GPS/GLONASS/GALILEO 25*25*4mm SMD Mount Patch

Datasheet
Image CE Certification
Overview

Evaluation Board for SGGP.25.4.A.02 GPS/GLONASS/GALILEO Antenna

This ceramic 25*25*4mm GPS/GLONASS/GALILEO patch antenna is mounted via SMT process and has been pre-tuned for a 50*50mm ground plane. Custom part no’s tuned for different ground-plane or layout positions and taking into account the specific conditions in your device can be created and supplied by Taoglas.
