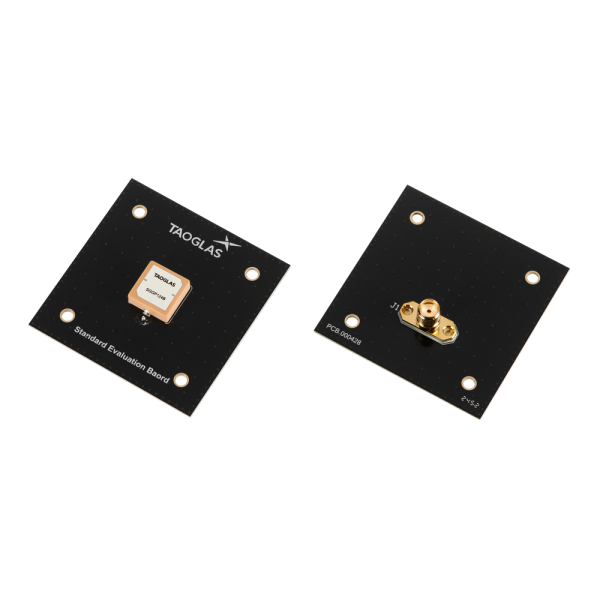

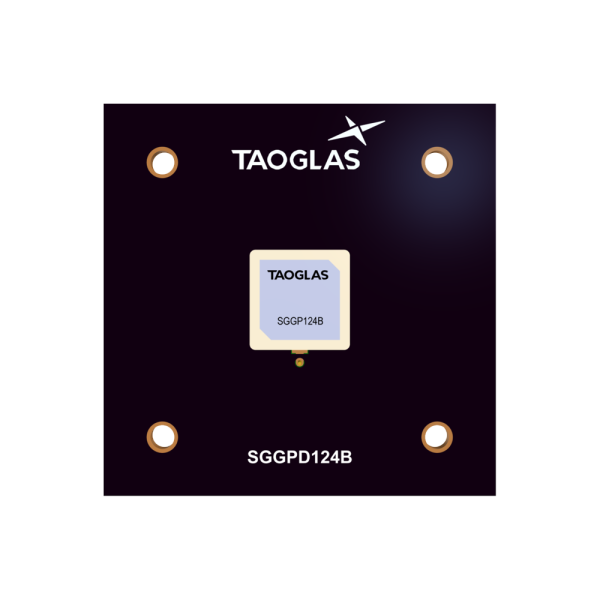

Evaluation Board for SGGP124B Patch Antenna with 5pcs

Evaluation Board for SGGP124B Patch Antenna with 5pcs

The SSGP124B is a compact ceramic GPS/GLONASS/GALILEO/BEIDOU passive patch antenna, measuring just 12mm x 12mm with a low-profile height of 4mm. Its small form factor makes it ideal for space-constrained
applications such as compact telematics devices, vehicle tracking and fleet management systems, wearables, and navigation devices.

The antenna is optimized for a 50mm x 50mm ground plane, operating at 1575.42MHz, 1602MHz and 1561MHz with a peak gain of 0.72dBi gain, 1.17dBi gain-5.06dBi gain. Designed for SMT mounting, the ceramic
patch includes an additional solder mask to enhance durability and prevent cracking due to heat expansion during high-volume, cost-sensitive assembly processes.

Typical applications include:

• Vehicle Tracking and Fleet Management Systems
• Wearables
• Navigation Devices

The SSGP Series can be manufactured in a TS16949 first-tier automotive-approved facility and tested to AECQ200 certification if required. Further to this, full PPAP and IMDS documentation can be provided upon request.
Please discuss your quality and reliability requirements with our team prior to ordering.

Taoglas also offers custom tuning services based on minimum order quantities, contact your regional Taoglas customer support team for further information.
