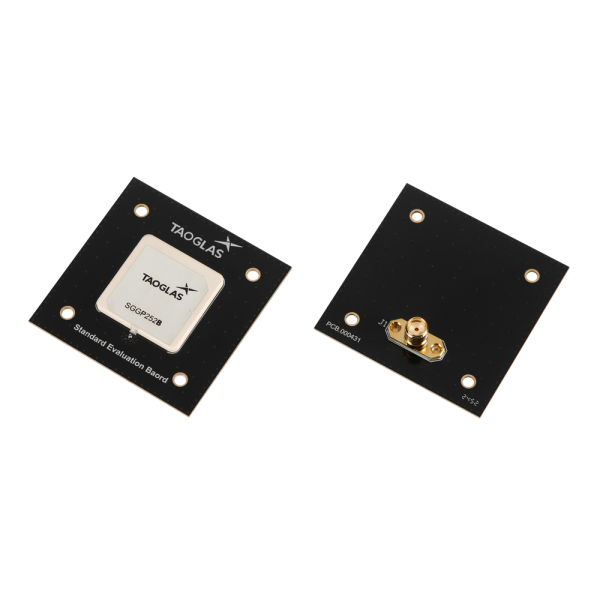

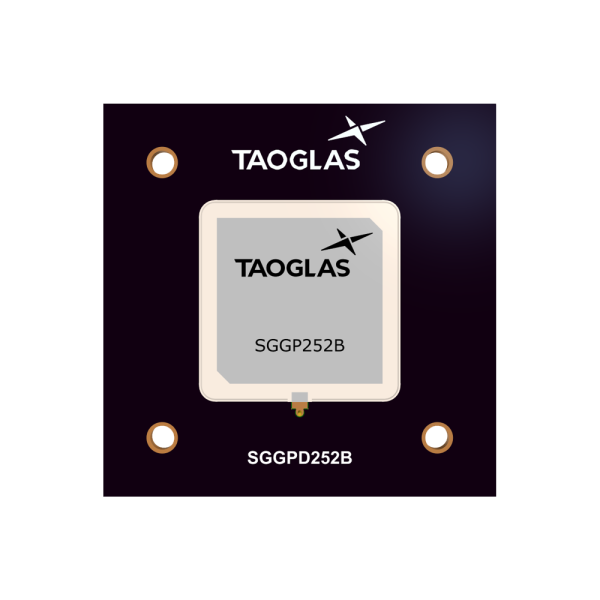

Evaluation Board for SGGP252B Patch Antenna with 5pcs

Evaluation Board for SGGP252B Patch Antenna with 5pcs

The SGGP252B is a compact ceramic GPS/GLONASS/GALILEO/BEIDOU passive patch antenna, measuring just 25mm x 25mm with a low-profile height of 2mm. Its small form factor makes it ideal for space-constrained
applications such as compact telematics devices, vehicle tracking and fleet management systems, wearables, and navigation devices.

The antenna is optimized for a 50mm x 50mm ground plane, operating at 1575.42MHz and 1602MHz with a peak gain of 1.06 dBi gain and 1.40 dBi gain. Designed for SMT mounting, the ceramic patch includes an
additional solder mask to enhance durability and prevent cracking due to heat expansion during high-volume, cost-sensitive assembly processes.

Typical applications include:

• Vehicle Tracking and Fleet Management Systems
• Wearables
• Navigation Devices

The SSGP Series can be manufactured in a TS16949 first-tier automotive-approved facility and tested to AECQ200 certification if required. Further to this, full PPAP and IMDS documentation can be provided upon request.
Please discuss your quality and reliability requirements with our team prior to ordering.

Taoglas also offers custom tuning services based on minimum order quantities, contact your regional Taoglas customer support team for further information.
