Evaluation Board for 4.9~5.8GHz Ceramic Patch Antenna
ISM, Wi-Fi®, Public Safety and ZigBee®
Peak Gain: +6.0dBic typ.
Efficiency: 40-91%
Evaluation Board Dimensions: 70*70mm

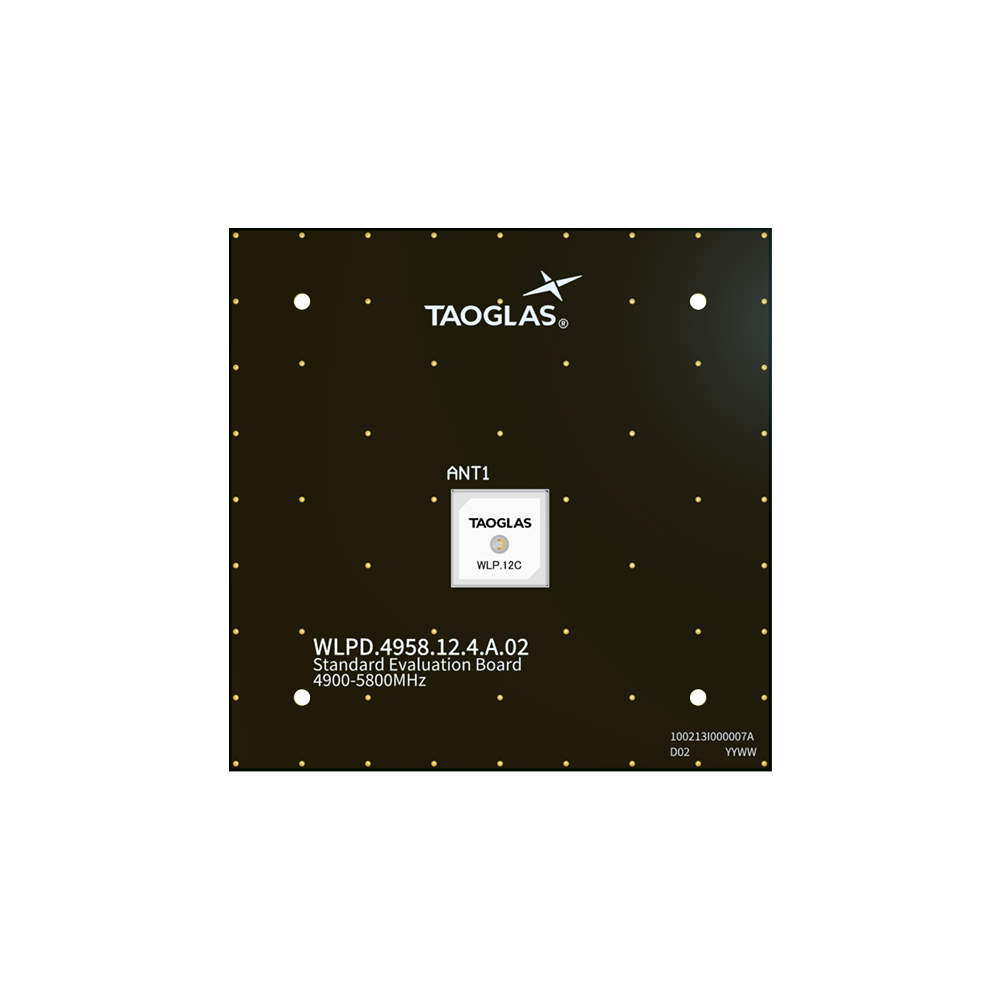

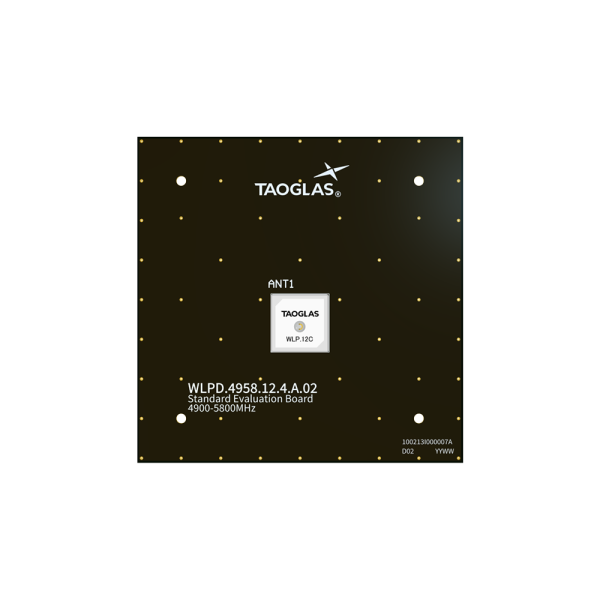

Evaluation Board for WLP.4958.12.4.A.02 4900~5825MHz 12*11.8*4mm Patch Antenna
WLPD.4958.12.4.A.02
WLPD.4958.12.4.A.02
Evaluation Board for WLP.4958.12.4.A.02 4900~5825MHz 12*11.8*4mm Patch Antenna
Overview
Evaluation Board for WLP.4958.12.4.A.02 4900~5825MHz Patch Antenna
This 12mm*12mm*4mm 6dBi high gain 4.9~5.8GHz patch pin fed antenna is ideally suited for high performance industrial and consumer applications in Wi-Fi®, ISM, Public Safety, and ZigBee® bands. It can also be placed anywhere on the device ground-plane, unlike most chip or loop antennas which need to be edge mounted. The antenna can be matched by a PI matching circuit, or by creating a custom tuned part for a specific layout configuration on a board.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | WLP.4958.12.4.A. |
| Technology | Evaluation Boards, Wi-Fi®/Bluetooth® |
| Width (mm) | 70 |
| Length (mm) | 70 |
| Height (mm) | 0.8 |
| Materials | Ceramic |
