FAKRA GEN 1 Code Z Water Blue Male Plug for RG-174/RG-316/TGC-1.5DS

FK0MZDK

Optimized for automated manufacturing
Full Series of colours available
RF performance up to 6GHz
Primary and Secondary Locks
Tulip contact / anti-stubbing
Housing inner ring / anti-scooping
Fully compliant to USCAR requirements

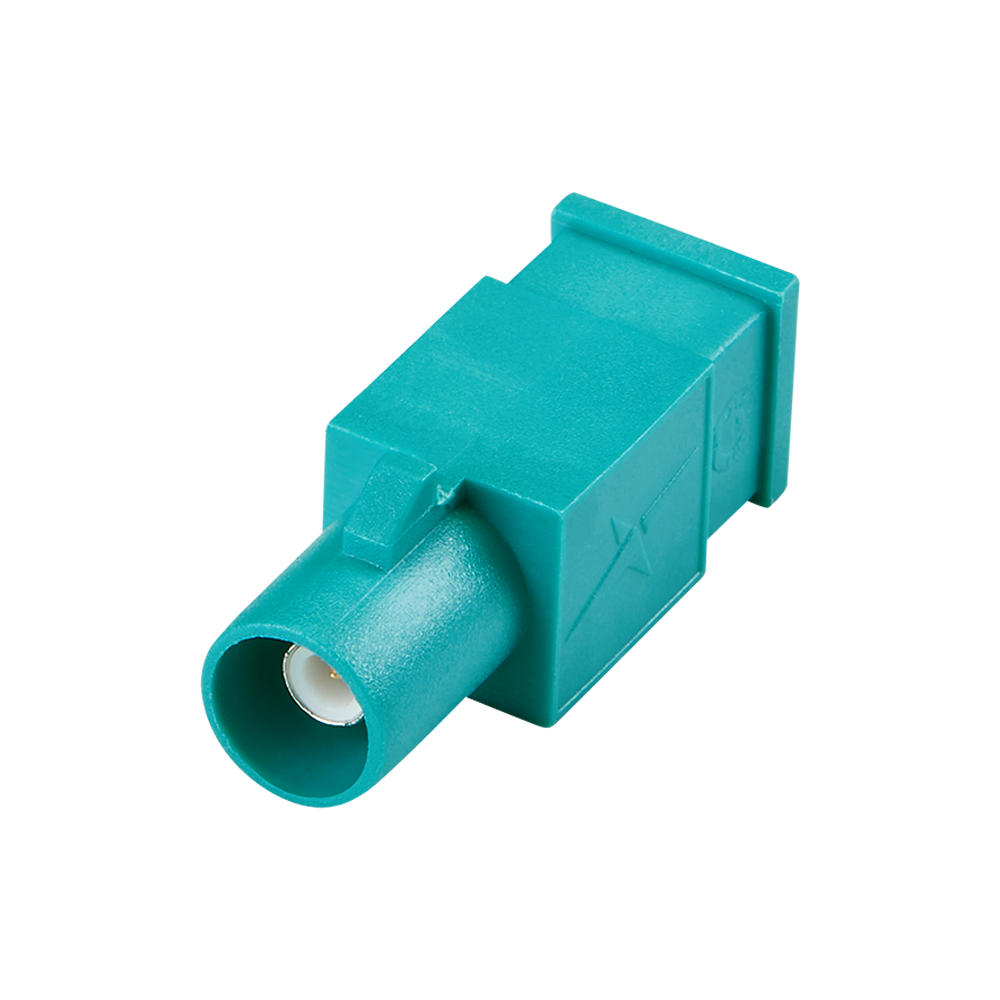

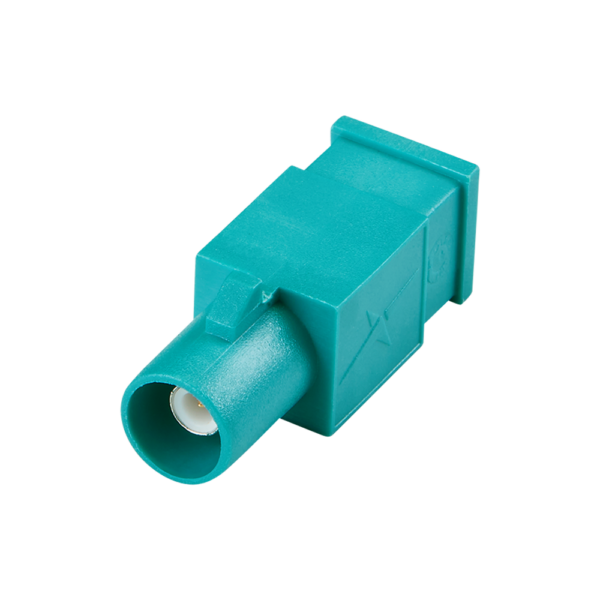

Image FK0MZDK

FK0MZDK

FAKRA GEN 1 Code Z Water Blue Male Plug for RG-174/RG-316/TGC-1.5DS

Overview

FAKRA GEN 1 Code Z Water Blue Male Plug for RG-174/RG-316/TGC-1.5DS

Taoglas is a leading provider of advanced technology for a smarter world. Our solutions include advanced components and technologies and help OEMs, enterprises, and communities to resolve the complexities of bringing digital transformation solutions to market quickly and cost effectively. Focused on best-in-class, high-performance antenna and RF design with advanced positioning, imaging, audio and artificial intelligence technologies, Taoglas understands the importance of high-performance connections.

Taoglas FAKRA GEN 1 connectors utilize a metal SMB connector embedded within a plastic enclosure that is colour coded and keyed for ease of identification and assembly. They have been designed with a swivel style housing for ease of installation. They are designed for high-volume production, automated harness assembly and provide superior performance. They are manufactured with the highest precision and are thoroughly tested to meet USCAR-2 and USCAR-17 standards.

All Taoglas connectors are RoHS & REACH compliant. The Water Blue Code Z connector is typically used for DSRC/ other connections and is available in both Jack and Plug and for multiple cable diameters.

Technical Specification
Name Value
Connector Style Straight
Connector Type FAKRA CODE Z Blue
Contact Termination Cable
Shield Termination M
Impedance 50
Mounting Type Cable Mount
Cable Group RG-174/RG-316/TGC-1.5DS
Frequency - Max (GHz) 6
Number of Ports 1
Housing Color Water Blue
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
