GA.170.305111 5G/4G Monsoon with 3000mm TGC-200 & SMA(M)ST


1*5G/4G Antenna
Worldwide 5G/4G Bands, 600MHz-6GHz
IP69K Rated, Robust ABS+PC Enclosure
Permanent (Screw) Mount Antenna
Cable: 3M TGC-200
Connector: SMA(M)ST
Dimensions: 204*69*31 mm
RoHS and Reach Compliant

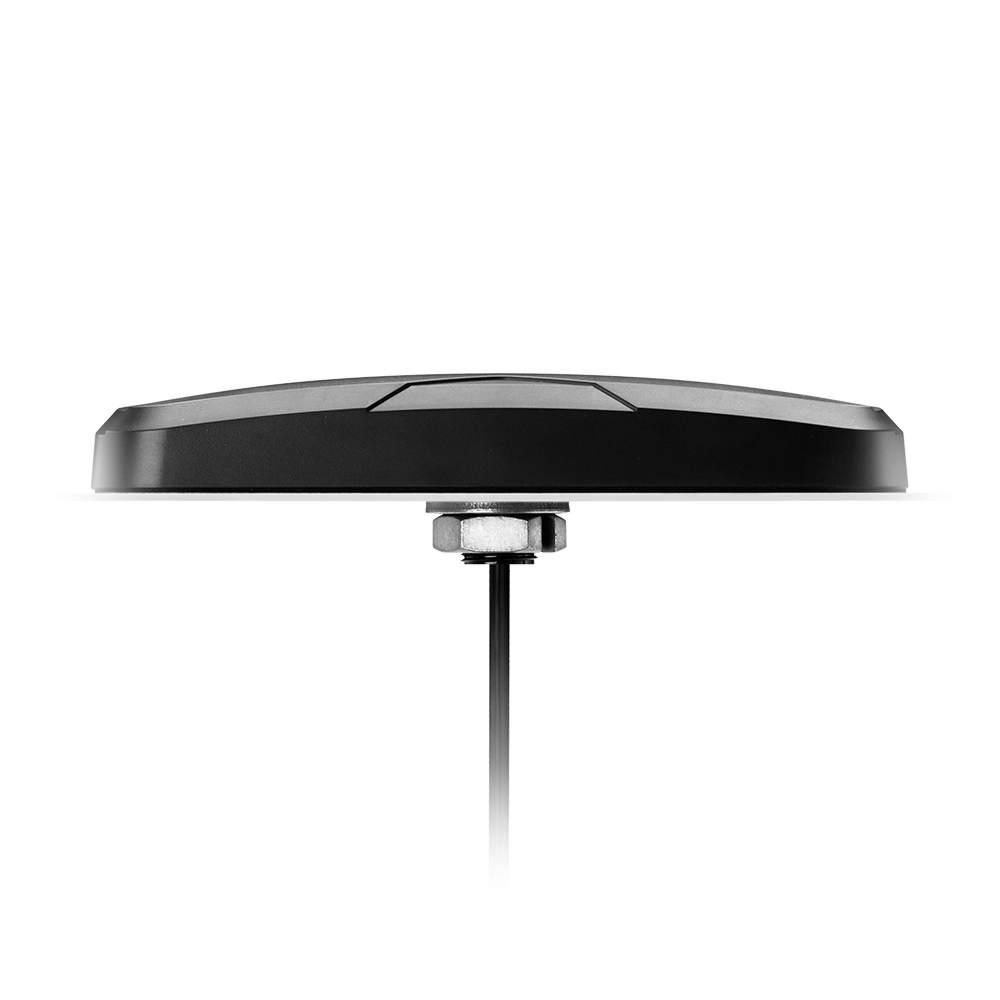

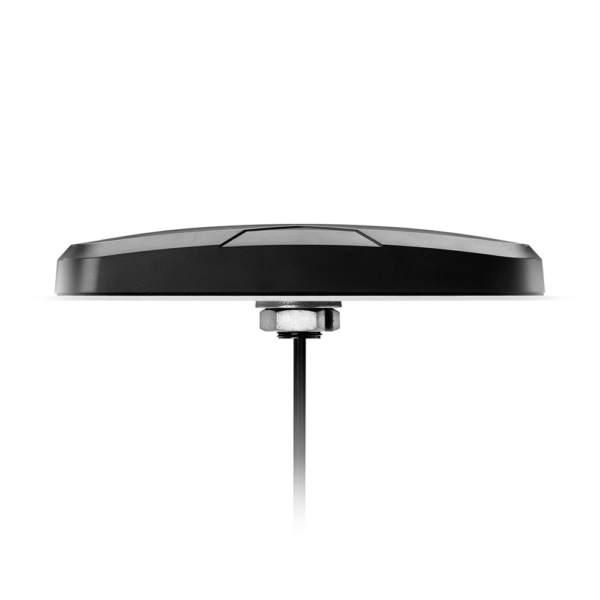

Image GA.170.305111


GA.170.305111 5G/4G Monsoon with 3000mm TGC-200 & SMA(M)ST


Monsoon 5G/4G First Responder Antenna

The Taoglas GA.170 Monsoon antenna is a low profile, fully IP69K waterproof external M2M antenna for use on containers for global telematics services. The GA.170 delivers best-in-class 5G/4G antenna performance from 600-6000MHz.

Typical applications include:
– HD Video over LTE
– First Responder and Emergency Services
– Intelligent Transport Systems
– Internet of Things (IoT market)
– High Definition Video Broadcast Systems
– Wireless LTE M2M Devices
– Digital Signage

5G/4G applications demand high speed data uplink and downlink. A high-efficiency and high-gain antenna is required to achieve the required signal to noise ratio and throughput required to solve these challenges. The GA.170 does not require a ground plane. Low loss cables are used to keep efficiency high over long cable lengths.

Cables and connectors are fully customizable. Contact your regional Taoglas customer support team for further information.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity None
Cable Length (mm) 3000
Packaging Tray, Carton, Box
IP Rating IP69k
RoHS Yes
Gain (Max) 4.03
Length (mm) 203.95
Width (mm) 68.96
Height (mm) 30.95
Weight (g) 550
