GA.107 5G/4G Cellular Mini Magnetic Mount, 2M RG-174

GA.107.201111

5G/4G Cellular Magnetic Whip Antenna
600MHz to 6000MHz
Magnetic Mount – Superior Super Magnet – Neodymium N35
2M RG-174, SMA(M)
Dimensions: Base Ø: 29.5mm, L: 116mm

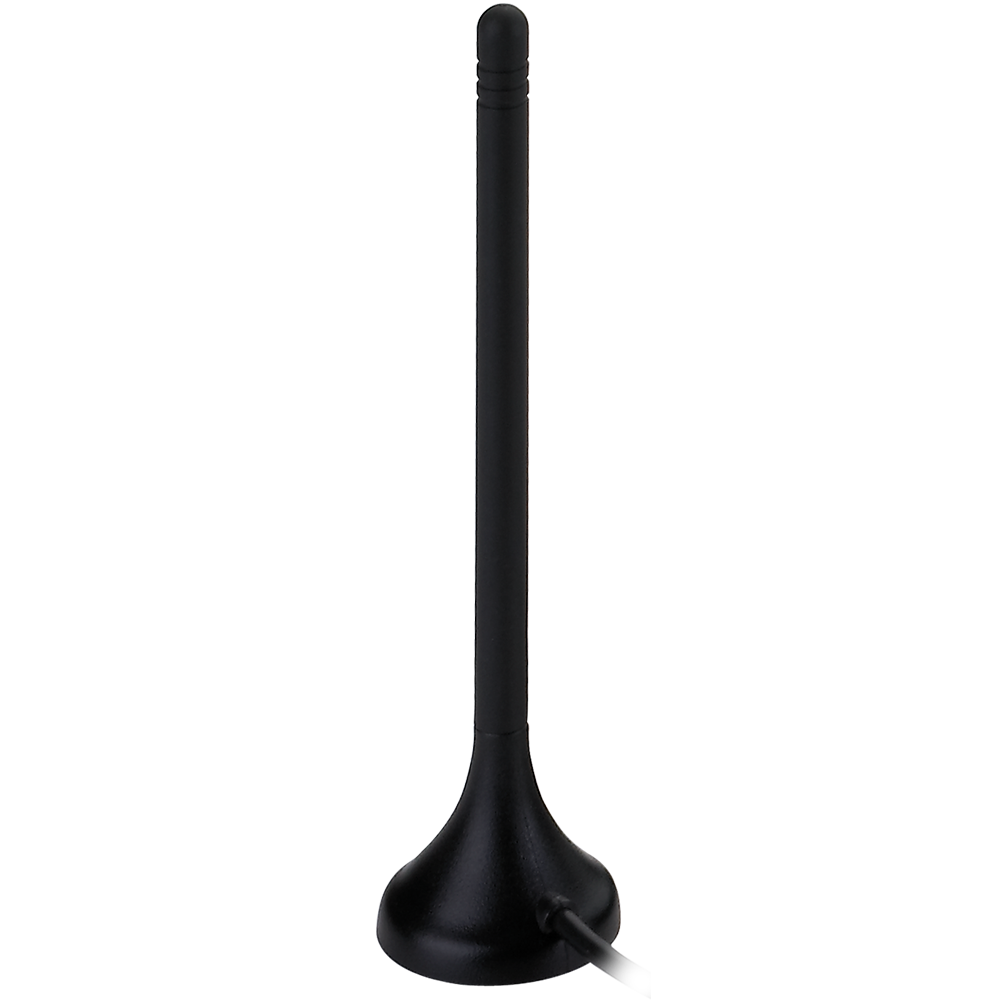

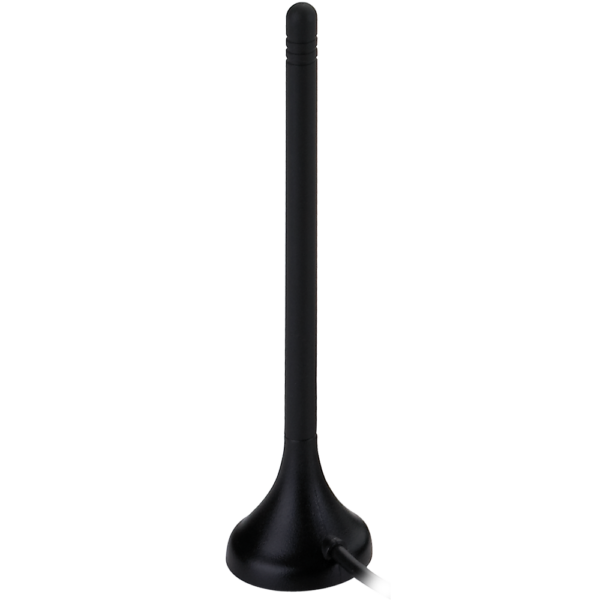

Image GA.107.201111

GA.107.201111

GA.107 5G/4G Cellular Mini Magnetic Mount, 2M RG-174

Overview

The GA.107 magnetic cellular band antenna delivers marked improvements in efficiency and gain across all common frequencies in use for cellular bands today. Now one antenna can be used in place of multiple part numbers. Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance. The GA.107 features a superior super magnet made form Neodymium N35, giving the antenna a maximum pull-force of 1.92 kilogram-force (kgf). A reliable return loss of <10dB when mounted on a metal plate ensures it complies with the industry standards set by module makers and networks worldwide.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) 2000
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 1.82
Length (mm) 29.5
Width (mm) 29.5
Height (mm) 116
Weight (g) 39
