Gemini LMA100 4G/3G/2G LTE MIMO Antenna


Gemini 4G/3G/2G LTE MIMO 2×2 Antenna for Routers and Application Points
2 x 4G/3G/2G LTE MIMO Antenna
2*MIMO 1M CFD-200 SMA(M)
IP65 Enclosure
Wall Mount or Desk Top
Dims: 164*164*36.5mm

Watch the video below.

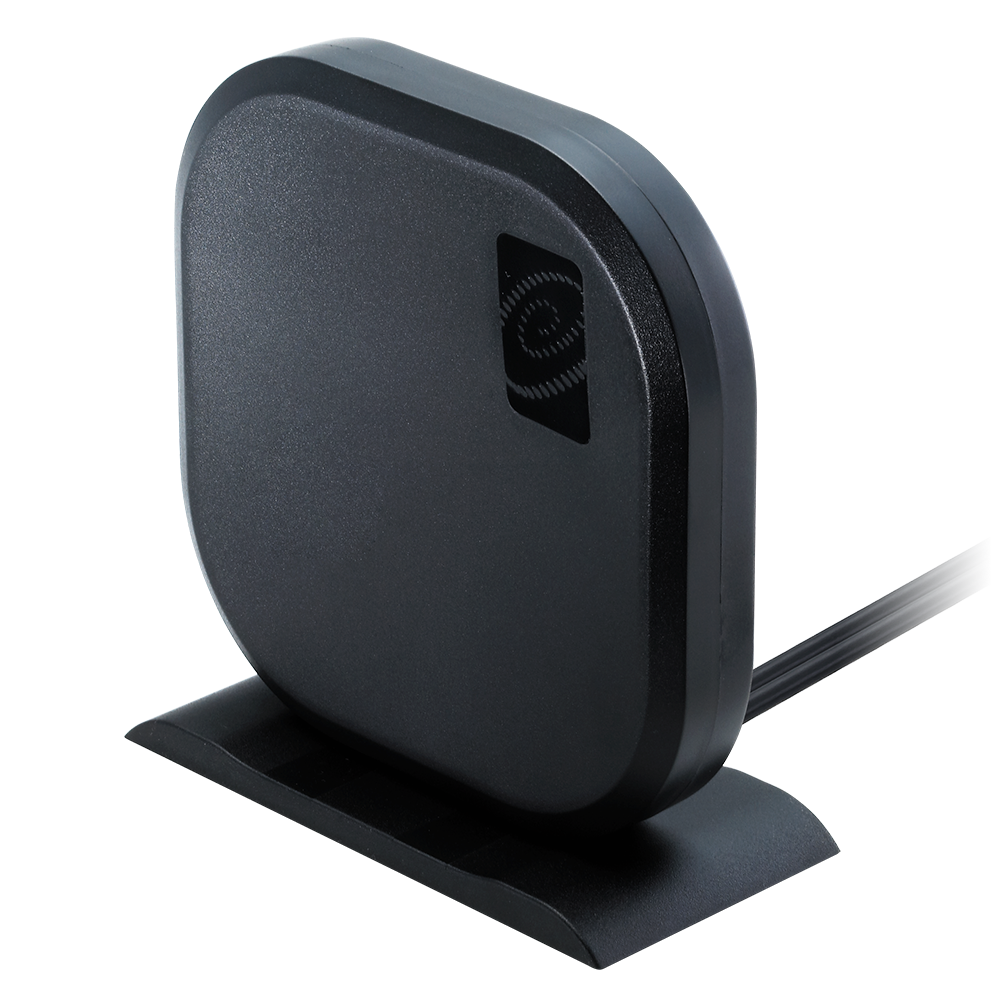

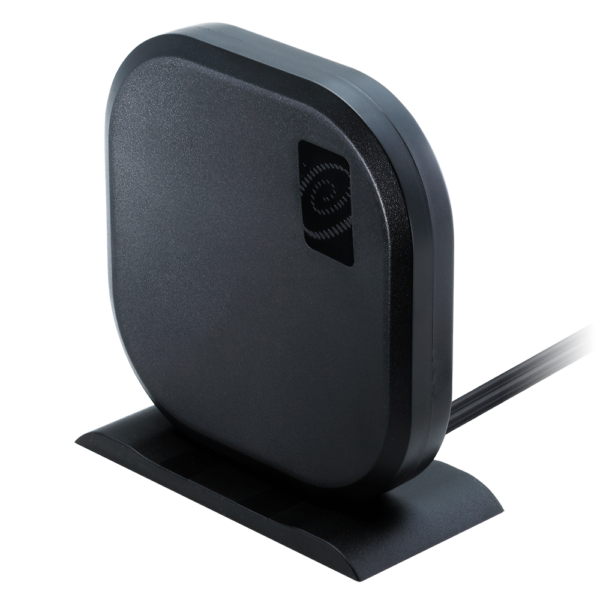

Image LMA100.A.BI.001


Gemini LMA100 4G/3G/2G LTE MIMO Antenna

High Efficiency LTE MIMO Antennas

The Gemini LTE 4G MIMO 2X2 includes two embedded high-efficiency LTE MIMO antennas. It is a robust external antenna that is fully IP65 waterproof for use with all 4G/3G/2G MIMO cellular routers and Access points worldwide. The antenna elements operate at all common and 4G LTE bands worldwide; 698-960MHz, 1710-2170MHz, 2490-2690MHz, which also include the 3G and 2G bands, meaning the antenna can also be used as fallback on 3G or 2G applications. High isolation and low ECC between the two embedded antennas prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths up to 5 meters.

This unique antenna offers two methods for easy installation, both indoors and outdoors. A bracket on the back of the antenna enables easy wall installation, keeping your work area clean and spacious. The antenna can also be placed on a flat surface using the stand
holder for easy and quick installation.

Typical Applications:
  • HD Real-time Streaming Video over LTE
  • Intelligent Transport Systems
  • Internet of Things (IoT market)
  • Digital Signage
  • HD Broadcast Systems
  • Wireless 4G LTE MIMO M2M devices with Legacy 3G Functionality

Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/DeskTop
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 700-3000MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging Carton
IP Rating IP65
RoHS Yes
Gain (Max) 5
Length (mm) 164
Width (mm) 164
Height (mm) 36.5
Weight (g) 400
