Genesis MA240 3-in-1 GPS/GLONASS/Galileo & 4G/3G/2G 2xMIMO Adhesive Mount Antenna 205.8*68*12.7mm

MA240.LBI.001

Genesis – LTE MIMO/GPS/GLONASS 3in1 Adhesive Mount Antenna
GPS-GLONASS 1575-1610MHz 2M RG-174 SMA(M)
GPS-GLONASS 2 Stage LNA 30dB
LTE (MIMO 1&2) 698MHz-960MHz/1710MHz-2690MHz 2M NFC-200 SMA(M)
LTE MIMO 1 – Efficiency 42%(avg)
LTE MIMO 2 – Efficiency 52%(avg)
No Ground Plane Required
High Grade 3M Double Sided Tape
205.8*68*12.7mm
Waterproof IP65 Rated

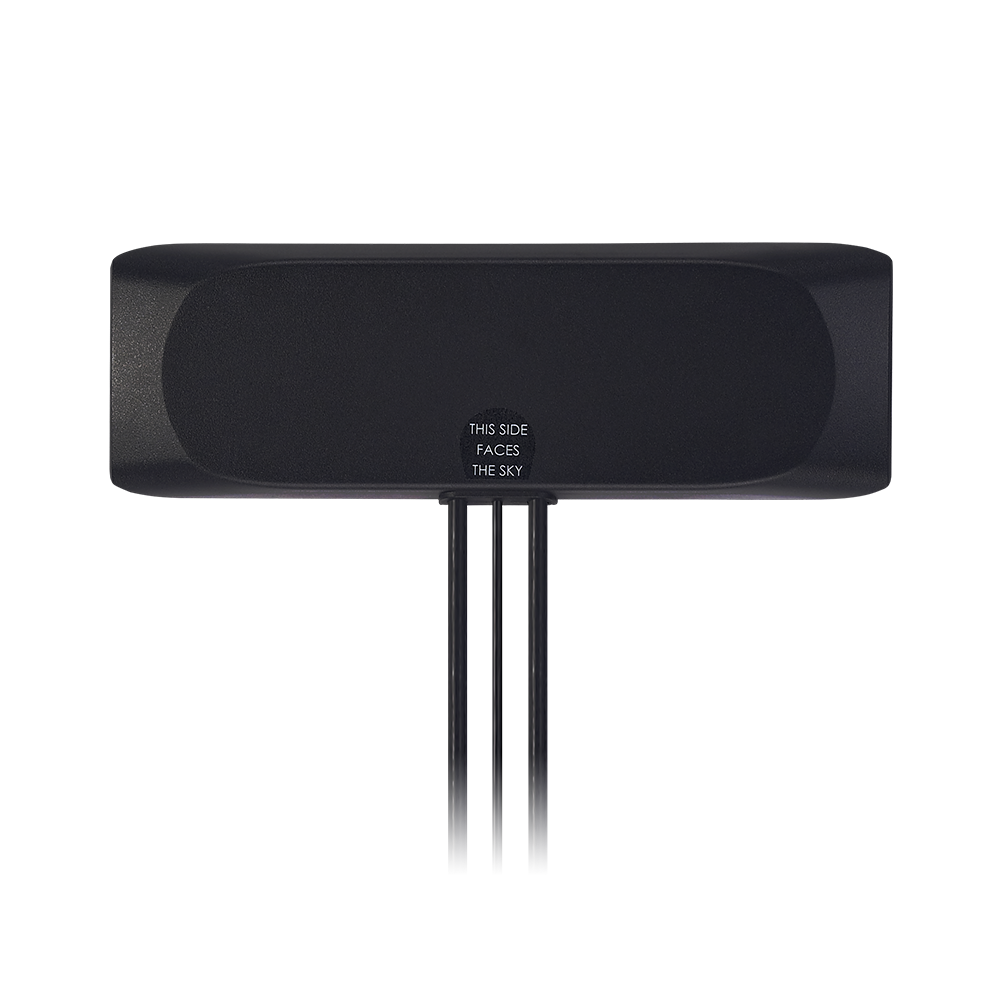

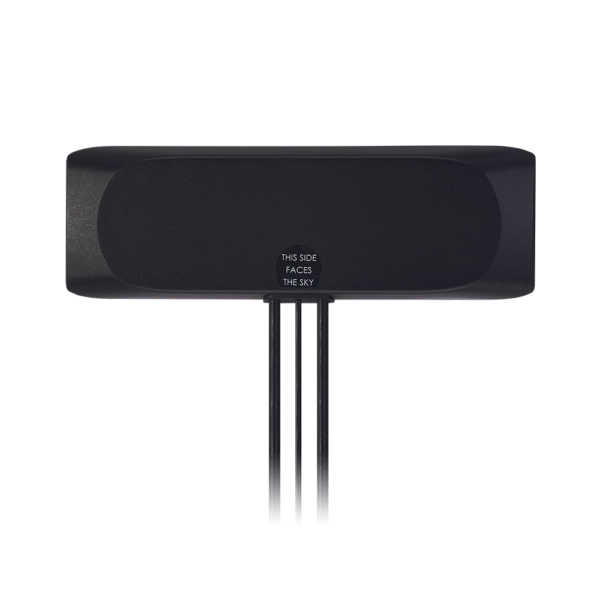

Image MA240.LBI.001

MA240.LBI.001

Genesis MA240 3-in-1 GPS/GLONASS/Galileo & 4G/3G/2G 2xMIMO Adhesive Mount Antenna 205.8*68*12.7mm

Overview

The MA.240 4G Genesis antenna is an omnidirectional, fully IP65 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications worldwide. It is designed to be mounted directly on glass or plastic in the interior of vehicles.

Typical applications
  • HD Video over LTE
  • First Responder and Emergency Services
  • Automotive Vehicle Tracking and Telematics

This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz, plus GPS/GLONASS/GALILEO for next-generation location accuracy. 4G wireless applications demand high-speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller LTE antennas with poorer quality thinner cables will have much-reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all. The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments. Finally, if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals. Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 2000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 2.5
Length (mm) 205.8
Width (mm) 68
Height (mm) 12.7
Weight (g) 250
