GNSS and Wi-Fi Flexible PCB Antenna with 1 Feed


Covers Extended Wi-Fi Frequencies of 2.4-2.5GHz, 5-7.125GHz
GNSS frequencies of 1.56-1.61GHz,
Flex PCB Antenna
Dimensions: 53*18*0.2mm
Cables: 100mm of Ø1.37mm
Connectors: I-PEX MHF® I (U.FL Compatible)
RoHS & Reach Compliant

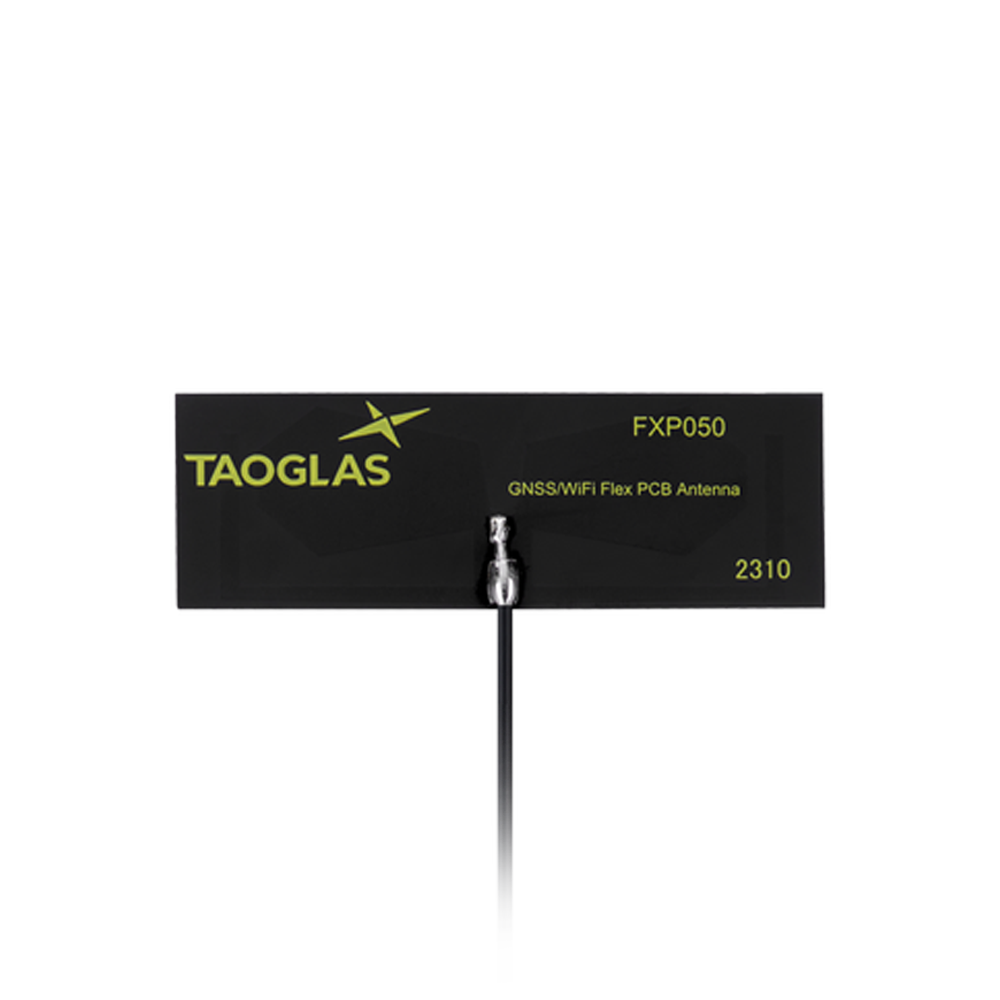

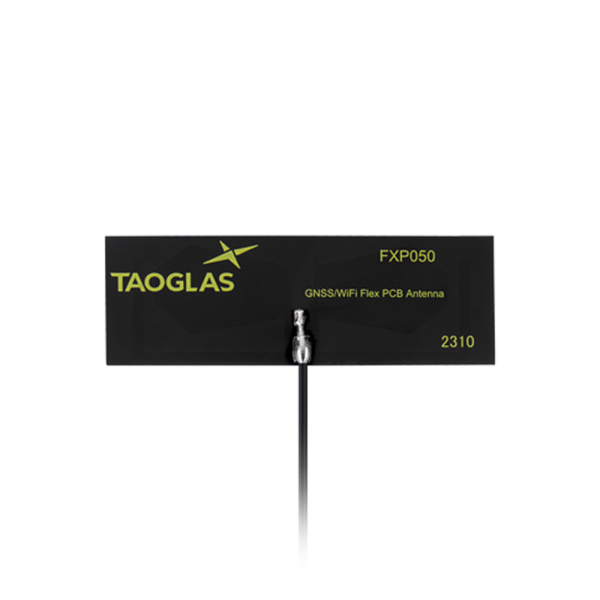

Image FXP050.07.0100C


GNSS and Wi-Fi Flexible PCB Antenna with 1 Feed


GNSS and Wi-Fi Flexible PCB Antenna with 1 Feed

The FXP050 is an embedded GNSS and Wi-Fi flexible PCB antenna designed to be widely used with modern Wi-Fi networks, including all Wi-Fi 2.4/5.8/7.125GHz and GNSS frequencies on the L1 Bands from 1560-1610MHz.

Typical Applications Include:

– Asset Tracking Systems
– Smart Home Devices
-Telemedicine devices
– Gaming devices
– Navigation Devices

By integrating both Wi-Fi and GNSS functionality into a single compact and flexible PCB easy to install design, the FXP050 offers an efficient and space-saving solution. It provides manufacturers and designers with the flexibility to incorporate advanced wireless connectivity and precise positioning capabilities into their product.

The FXP050 has excellent efficiency and isolation performance for Wi-Fi and GNSS applications. With a thickness of only 0.24mm, the FXP050 is an ideal solution for maintaining high performance with over 50% efficiency across all Wi-Fi bands and GNSS L1 bands, while fitting into narrow spaces such as plastic enclosures for routers, gateways, set-top boxes, and other Wi-Fi and GNSS applications.

With its versatility and compatibility with a wide range of Wi-Fi networks, including the latest standards, as well as its support for GNSS frequencies, the FXP050 is an ideal choice for various wireless applications, from smart home devices and IoT devices to industrial equipment and navigation systems.

For further optimization to customer-specific device environments and for support to integrate and test this antennas performance in your device, contact your regional Taoglas Customer Services Team.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Combination
Mechanical Style Flex PCB
Gain (Max) 2.14
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 15665MHz - 7125MHz
Connector Polarity Normal
Cable Length (mm) 100
Packaging PE Bag, Carton
Length (mm) 53
Width (mm) 18
Height (mm) 0.2
Weight (g) n/a
