Passive GPS/Galileo Patch Antenna
1575MHz

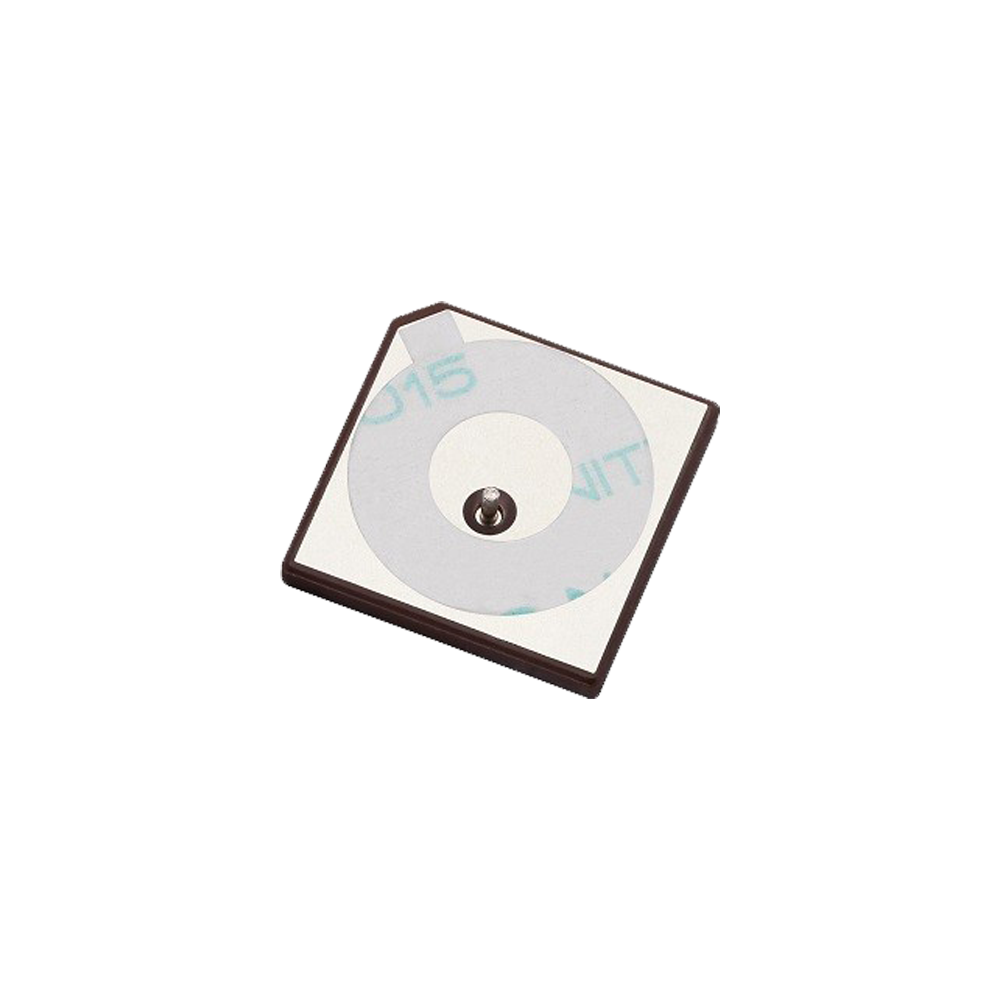

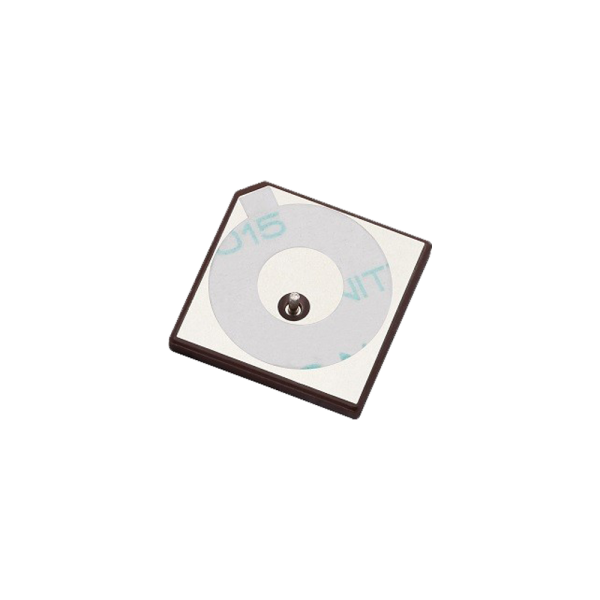

Mounted with pin and adhesive tape
18mm*18mm*2mm

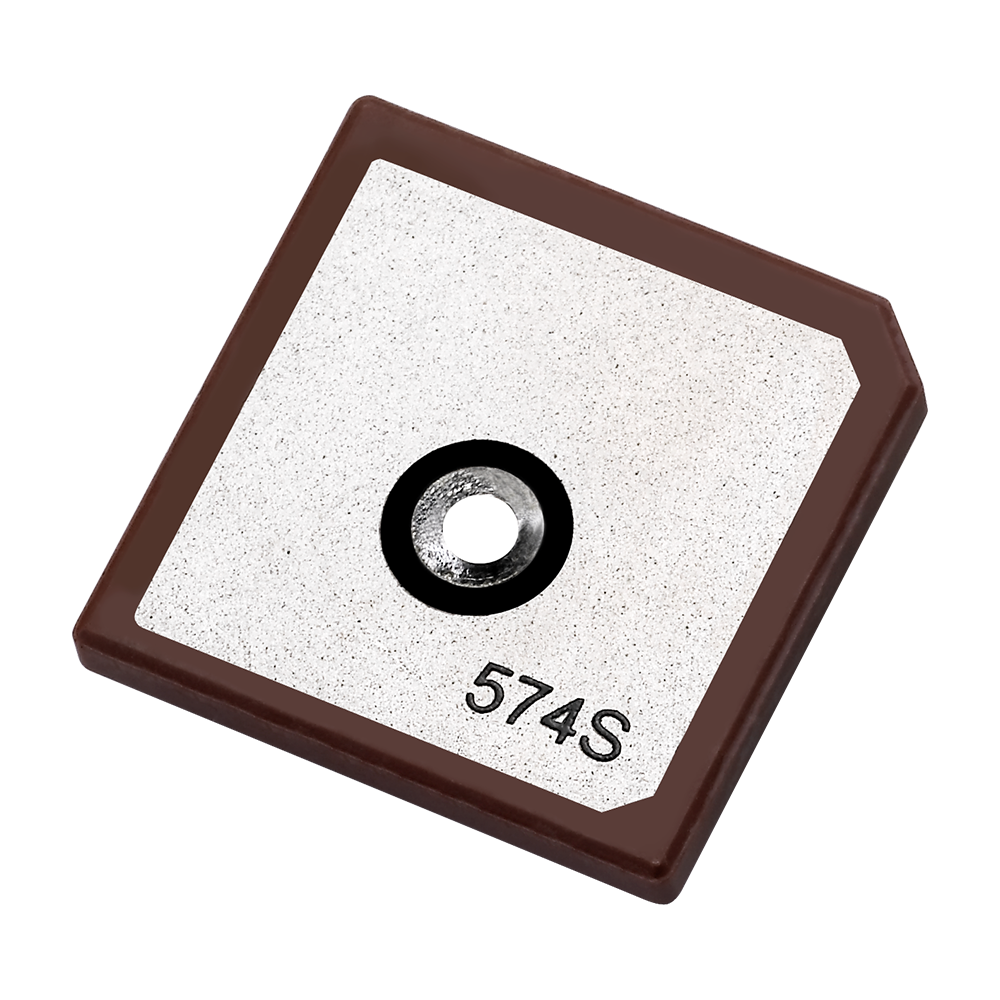

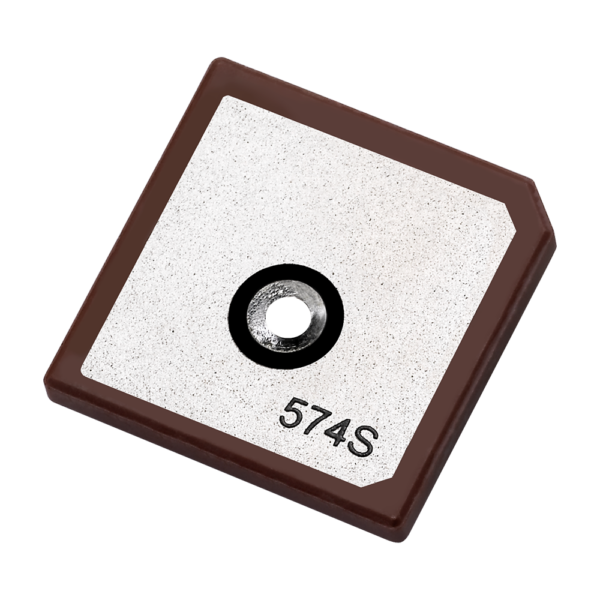

GP.1575.18.2.A.02 GPS/GALILEO 18*18*2mm 1575MHz Patch Antenna
GP.1575.18.2.A.02
GP.1575.18.2.A.02
GP.1575.18.2.A.02 GPS/GALILEO 18*18*2mm 1575MHz Patch Antenna
Overview
This miniaturized ceramic GPS/GALILEO patch antenna is based on smart XtremeGain™ technology. It is mounted via pin and double-sided adhesive and has been selected as optimal solution for the customer device environment.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, GNSS |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1 |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Pin/Adhesive |
| Termination Style | Pin |
| Antenna Connector Type | N/A |
| Length (mm) | 18 |
| Width (mm) | 18 |
| Height (mm) | 2 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | None |
| Cable Length (mm) | None |
| VSWR | 1.5 |
| Weight (g) | 5.12 |
| RoHS | Yes |
| Gain (Max) | -0.5 |
