Passive GPS/GALILEO patch Antenna
1575MHz Centre Frequency
Mounted with pin and adhesive tape
Halogen Free
Dimensions: 25mm*25mm*4mm
RoHS & REACH Compliant

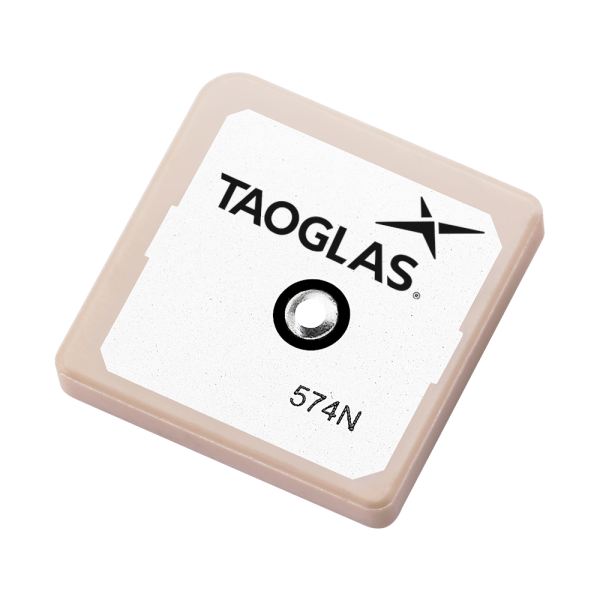

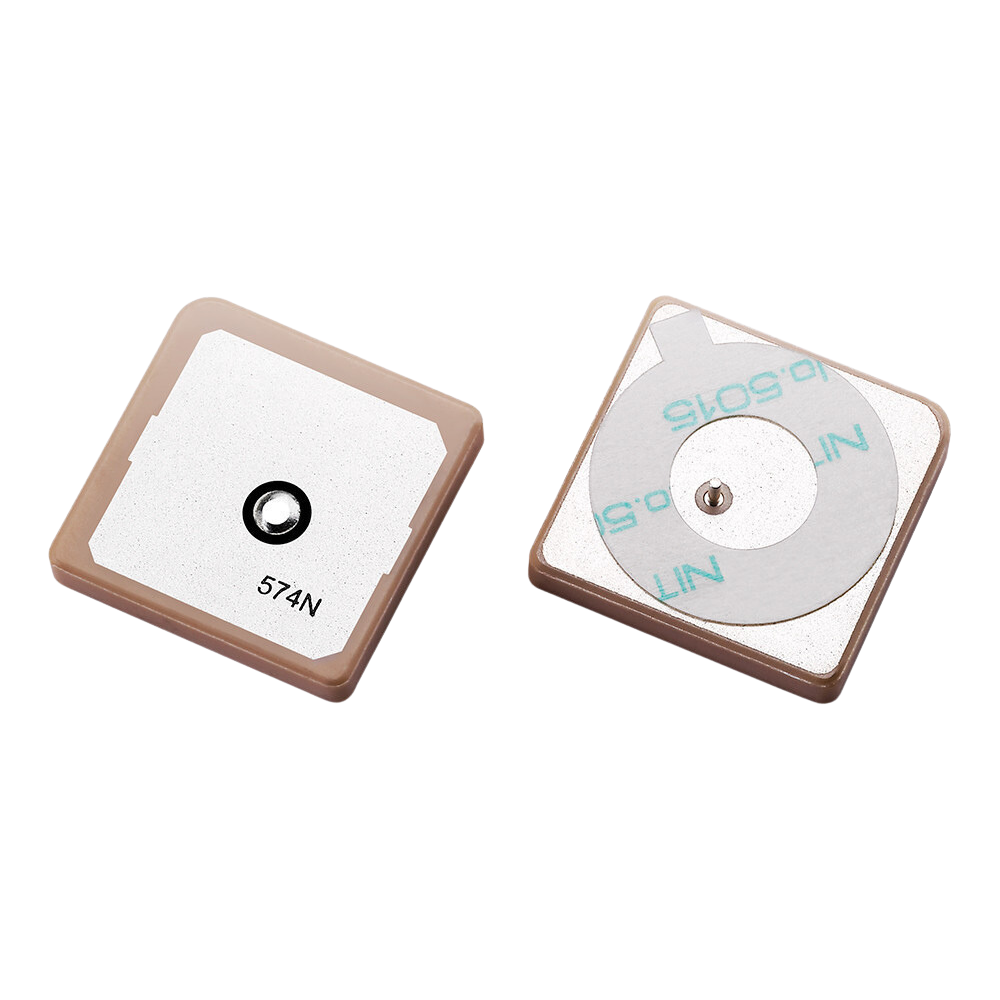

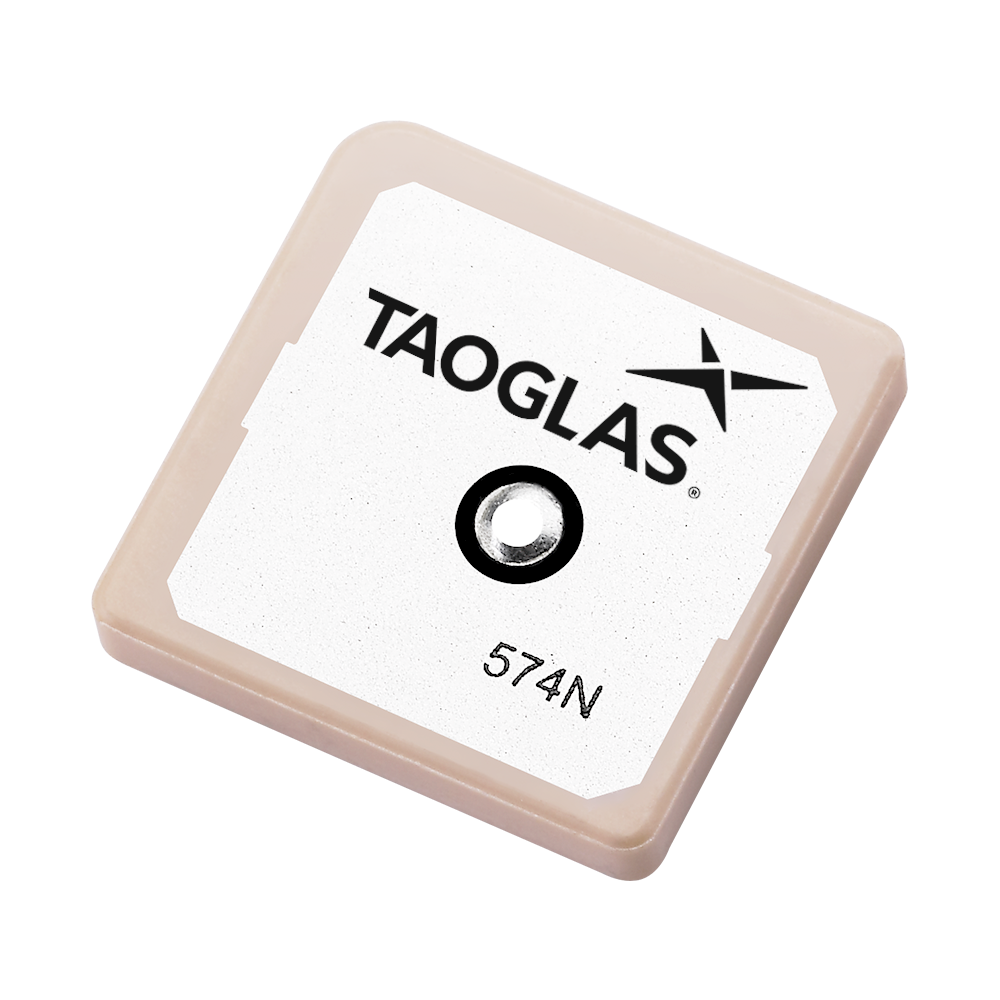

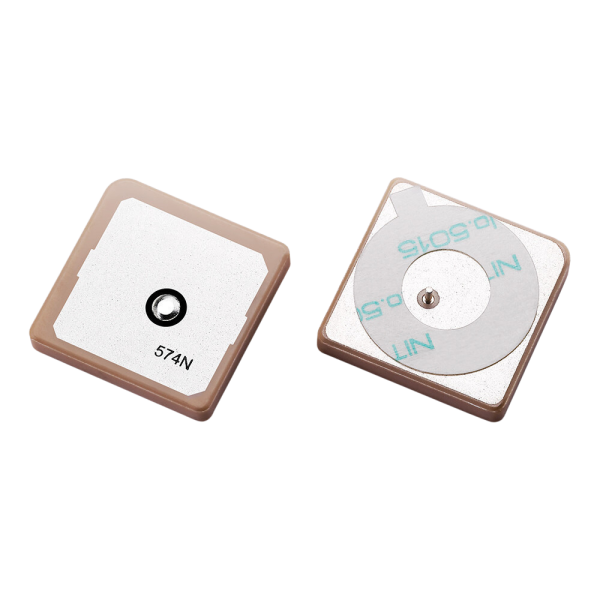

GP.1575.25.4.A.02 GPS/Galileo 25*25*4mm 1575.42MHz Patch Antenna
GP.1575.25.4.A.02
GP.1575.25.4.A.02
GP.1575.25.4.A.02 GPS/Galileo 25*25*4mm 1575.42MHz Patch Antenna
Overview
Xtreme Gain Technology Ambassador
The GP.1575 is a miniaturized ceramic GPS/GALILEO patch antenna based on smart XtremeGainTM technology. It is mounted via pin and double-sided adhesive and has been tuned as optimal solution for the customer device environment. Contact Taoglas local regional sales office for quick and professional support from our senior engineering team on integration and matching of the antenna to your device. Taoglas can ensure you integrate with success and get to market on time the first time. We provide optimization services for matching and active testing, so please contact your regional Taoglas design center for support, or download the datasheet.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, GNSS |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1 |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Pin/Adhesive |
| Termination Style | Pin |
| Antenna Connector Type | N/A |
| Length (mm) | 25 |
| Width (mm) | 25 |
| Height (mm) | 4 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | None |
| Cable Length (mm) | None |
| VSWR | 2:1 |
| Weight (g) | 3 |
| RoHS | Yes |
| Gain (Max) | 1.55 |
