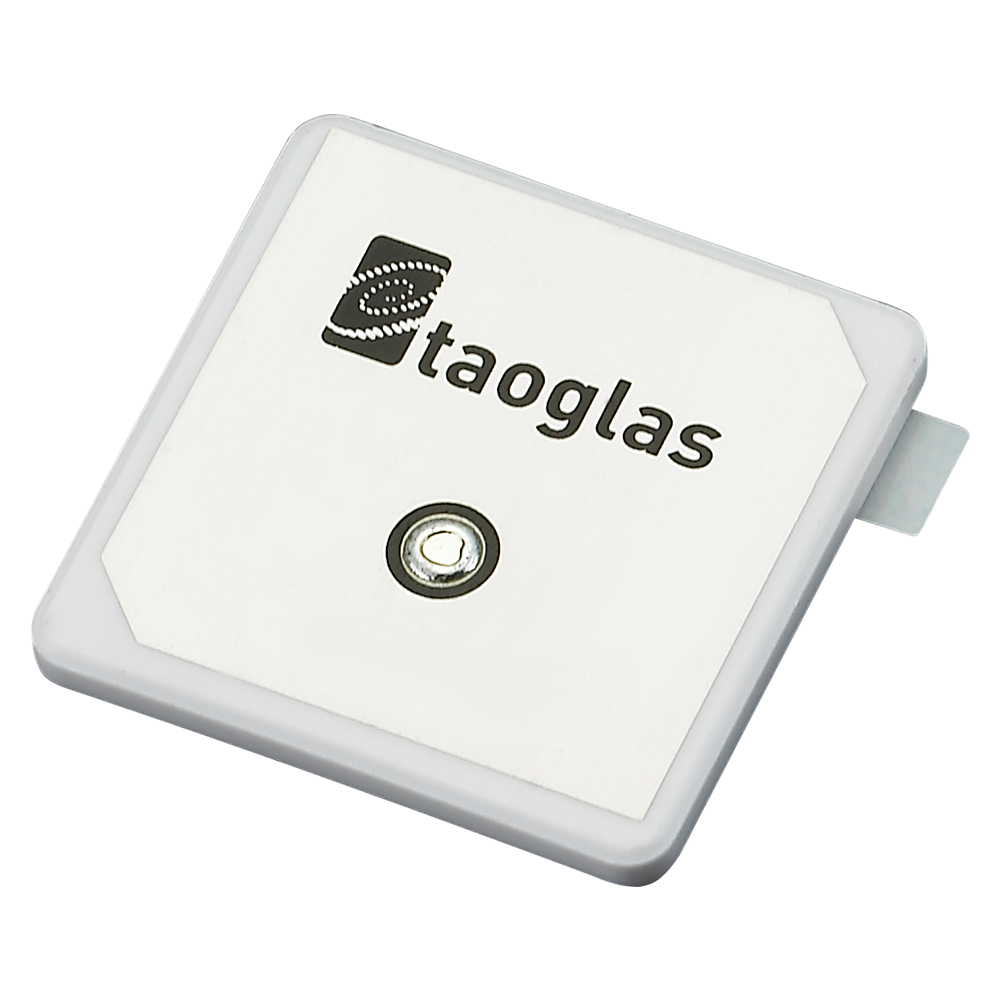

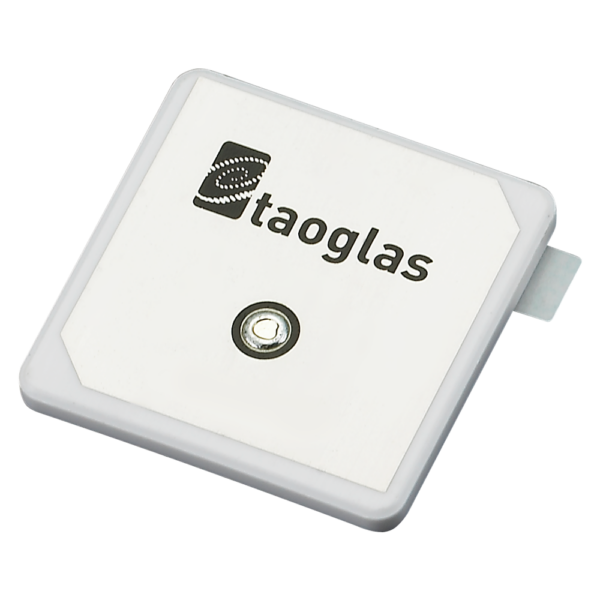

Passive GPS/GALILEO patch Antenna
1575MHz
Mounted with pin and adhesive tape
35mm*35mm*3.5mm
GP.1575.35.3.A.02 GPS/GALILEO 35*35*3.5mm 1575.42MHz Patch Antenna
GP.1575.35.3.A.02
GP.1575.35.3.A.02
GP.1575.35.3.A.02 GPS/GALILEO 35*35*3.5mm 1575.42MHz Patch Antenna
Overview
This 35*35mm ceramic GPS/GALILEO patch antenna is based on smart XtremeGain™ technology. It is mounted via pin and double-sided adhesive and has been tuned as the optimal solution for the customer device environment.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, GNSS |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1 |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Pin/Adhesive |
| Termination Style | Pin |
| Antenna Connector Type | N/A |
| Length (mm) | 35 |
| Width (mm) | 35 |
| Height (mm) | 3.5 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | None |
| VSWR | 1.5:1 |
| Weight (g) | 21.25 |
| RoHS | Yes |
| Gain (Max) | 2 |
