GPDF6010.A – All-band High Precision GNSS Stacked Patch Antenna

GPDF6010.A

PATENT PENDING
Bands Covered:
• GPS (L1/L2/L5)
• IRNSS (L5)
• QZSS (L1/L2C/L5/L6)
• Galileo (E1/E5a/E5b/E6)
• GLONASS (G1/G2/G3)
• BeiDou (B1/B2a/B2b/B3)
• L-Band
Dual pin, dual feed, 4-pin configuration
Dimensions: Ø60 x 10mm
RoHS & Reach Compliant

Image GPDF6010.A

GPDF6010.A

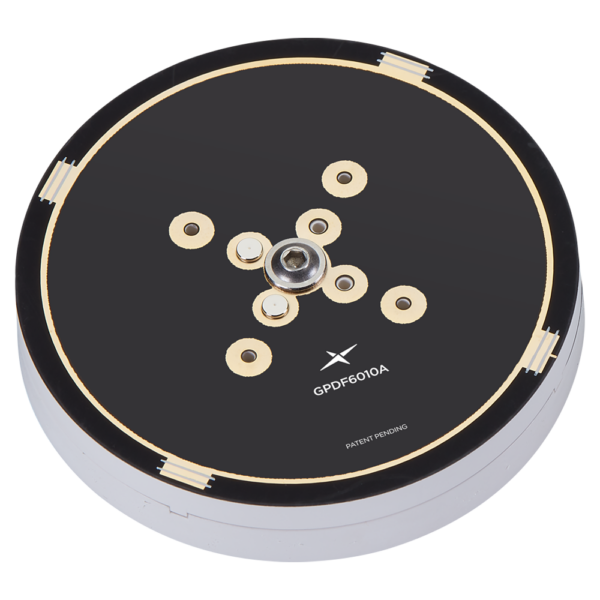

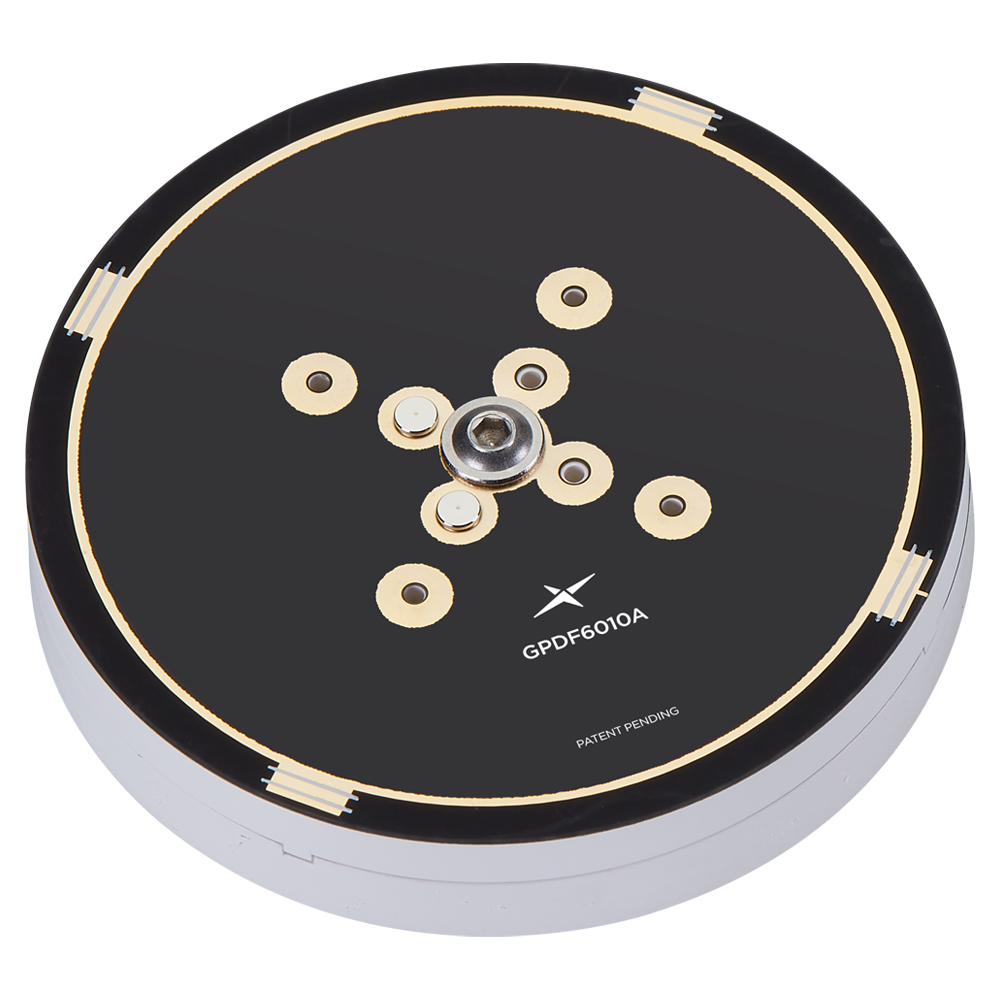

GPDF6010.A – All-band High Precision GNSS Stacked Patch Antenna

Overview

All-band High Precision GNSS Stacked Patch Antenna

The Taoglas GPDF6010.A is an innovative high performance, multi-band passive high precision GNSS antenna that has been carefully designed to provide fantastic positional accuracy on the full GNSS spectrum. It covers GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2a/B2b/B3, NAVIC L5, as well as SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS) and L-band corrections.

Correct implementation of the GPDF6010.A allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments. The novel Terrablast circular stacked patch construction has excellent performance across the full bandwidth of the antenna while reducing weight by nearly 40% compared to other antenna options. Its unique design provides excellent polarization and phase performance, providing exceptional positional and timing accuracy.

Typical applications that benefit from high precision capabilities include:
• Autonomous Driving
• Unmanned Aerial Vehicles
• Precision Positioning for Robotics
• Precision Agriculture
• Timing Accuracy Synchronization

The GPDF6010.A is the latest embedded addition to Taoglas’ product portfolio of high precision GNSS antennas. When used on the base and/or the rover as part of an RTK configuration, the GPDF6010.A can achieve genuine cm-level accuracy with proven results.

Full integration guidelines are contained in Section 8 of this datasheet including the Taoglas HC125.A hybrid coupler will be required for use for dual pin feed patch integrations.

Contact your local Taoglas Customer Services team for more information on any of the products listed above or for support regarding integration.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 4
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Pin
Polarity RHCP
Frequency Range 1160MHz - 1610MHz
Connector Polarity None
Cable Length (mm) n/a
Packaging Tray
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1/L2/L5/L6/L-Band
Length (mm) 60.63
Width (mm) 60.63
Height (mm) 17.7
Weight (g) 45
