GPVBSF.25.8.A – GPS L1 / L5 & BeiDou B1 Single Feed Stacked Patch Antenna

GPVBSF.25.8.A

Single Feed Stacked Patch Assembly
Covering Bands
– GPS L1 & L5
– BeiDou B1
Low Axial Ratio
Pin Mount
Dimensions: 25*25*8.12mm
RoHS & REACH Compliant

Image GPVBSF.25.8.A

GPVBSF.25.8.A

GPVBSF.25.8.A – GPS L1 / L5 & BeiDou B1 Single Feed Stacked Patch Antenna

Overview

GPS L1 / L5 & BeiDou B1 Single Feed Stacked Patch Antenna

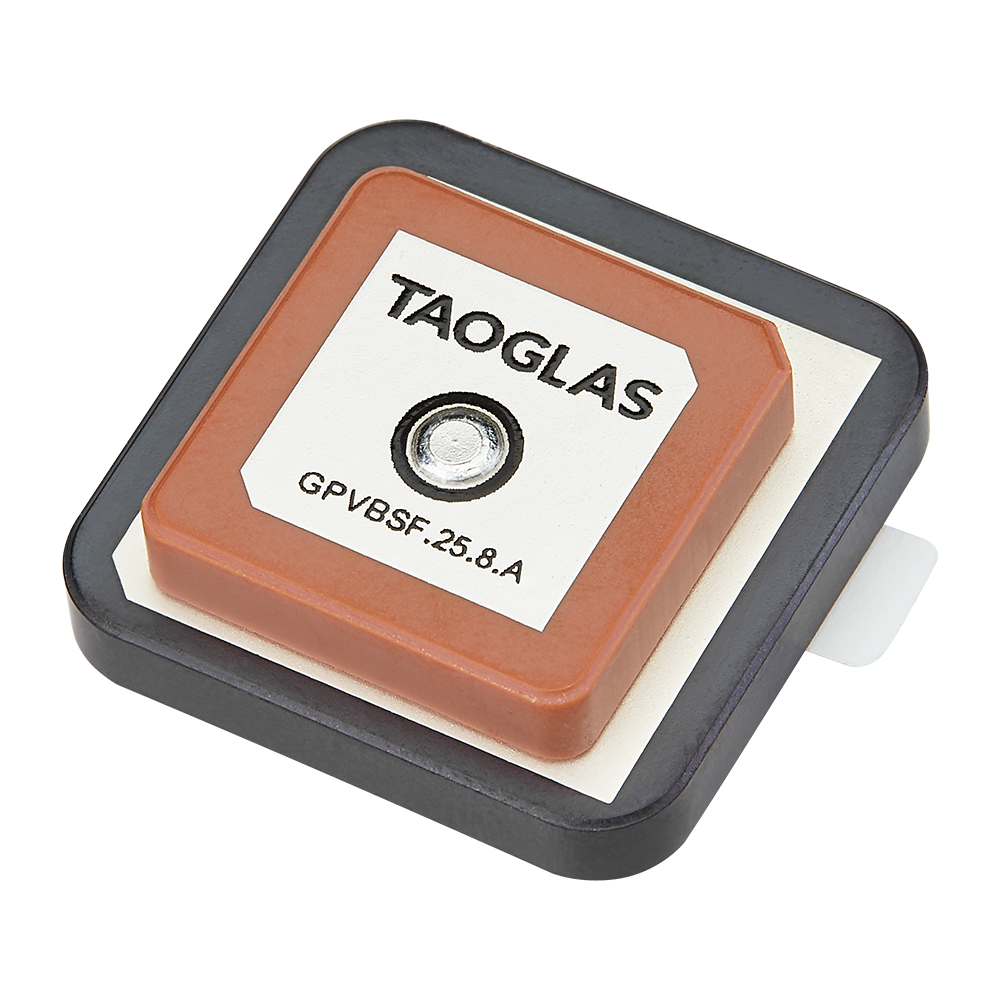

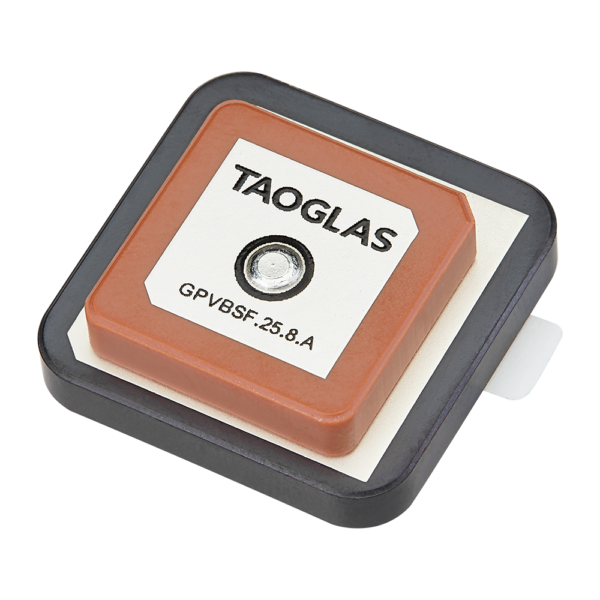

The GPVBSF.25.8.A, with Taoglas Sure Technology, is a multi-band GPS, BeiDou/Compass and IRNSS, high-performance directional antenna for high precision GPS and BeiDou accuracy and fast positioning. It utilizes a 25*25*8mm advanced wide-band dual-stacked ceramic patch antenna with optimized gain for GPS L1/L5, Galileo and BeiDou B1 bands.

Typical Applications Include:
– RTK
– Wearables
– Transportation
– Agriculture
– Navigation
– Security
– Autonomous Vehicles

The GPVBSF.25.8.A has been tuned and tested on a 70 x 70 mm ground plane and exhibits excellent radiation patterns with a low noise figure to preserve signal quality helping with fast first time to fix speeds.

Patch antennas can be specifically tuned to customer-specific device environments, subject to NRE and MOQ. Contact your regional Taoglas customer support team to request these services or additional support to integrate and test this antenna’s performance in your device.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 3.4
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Pin
Connector Body Style Straight
Polarity RHCP
Frequency Range 1160MHz - 1592MHz
Connector Polarity None
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1/L5
Length (mm) 25
Width (mm) 25
Height (mm) 8.12
Weight (g) 25
