Guardian MA961 4-in-1 2*LTE MIMO 2*Wi-Fi MIMO Adhesive Mount AntennaMA961.A.BICG.002
2* LTE MIMO 698-960MHz/1710-2170MHz/ 2490-2690MHz/ 3300-3600MHz
2* Wi-Fi MIMO 2.4GHz/5.8GHz
Worldwide 4G Bands including 3G and 2G
IP67 Waterproof Black Enclosure

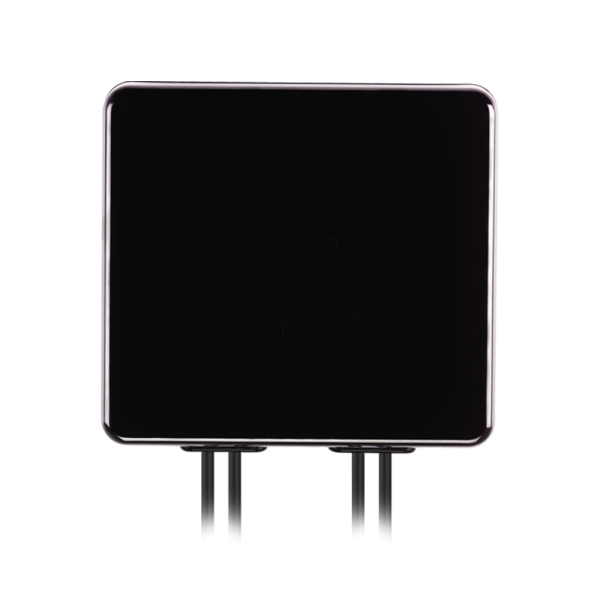

Guardian MA961 4-in-1 2*LTE MIMO 2*Wi-Fi MIMO Adhesive Mount Antenna
The MA961 Guardian is a next-generation combination antenna. The first-panel antenna worldwide designed for IoT Gateway and Router devices. It is a low profile 4in1 wall and adhesive mount antenna. This unique product delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/1800MHz/ 2600MHz/3500MHz and dual-band Wi-Fi. It is a heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in IoT Gateway and Routers, HD Video Streaming, Transportation and Remote Monitoring Applications. This antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 698-960MHz/1710-2170MHz/2490-2690MHz/3300-3600MHz bands and dual 2.4/5.8GHz Wi-Fi. It enables designers to cover a wide range of technologies by installing a single antenna. 4G wireless applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.
Taoglas also takes care to have high isolation among these antennas to prevent self-interference. Low loss cables used to keep efficiency high over long cable lengths. The housing is made of durable ASA, is IP67 waterproof and comes with 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle or building. The MA961 comes with 3 meters CFD-200 cable as standard. Customized cables and connector versions are also available.
