Guardian MA963 4-in-1 4*5G/4G MIMO Wall Mount Antenna

MA963.A.BIVW.002.wm

Low-Profile Wall Mount Panel Antenna
4 * Wideband 5G/4G MIMO – 600MHz – 6GHz
Covering Worldwide 5G/4G Bands
Covering 5G NR Sub 6GHz Bands, CAT-M1 & NB-IoT Bands
IP67 Rated Enclosure
Cables: 3m TGC-200 as Standard
Connectors: SMA(M)ST Connectors as Standard
Dimensions (including bracket): 146*134*26mm
RoHS & REACH Compliant

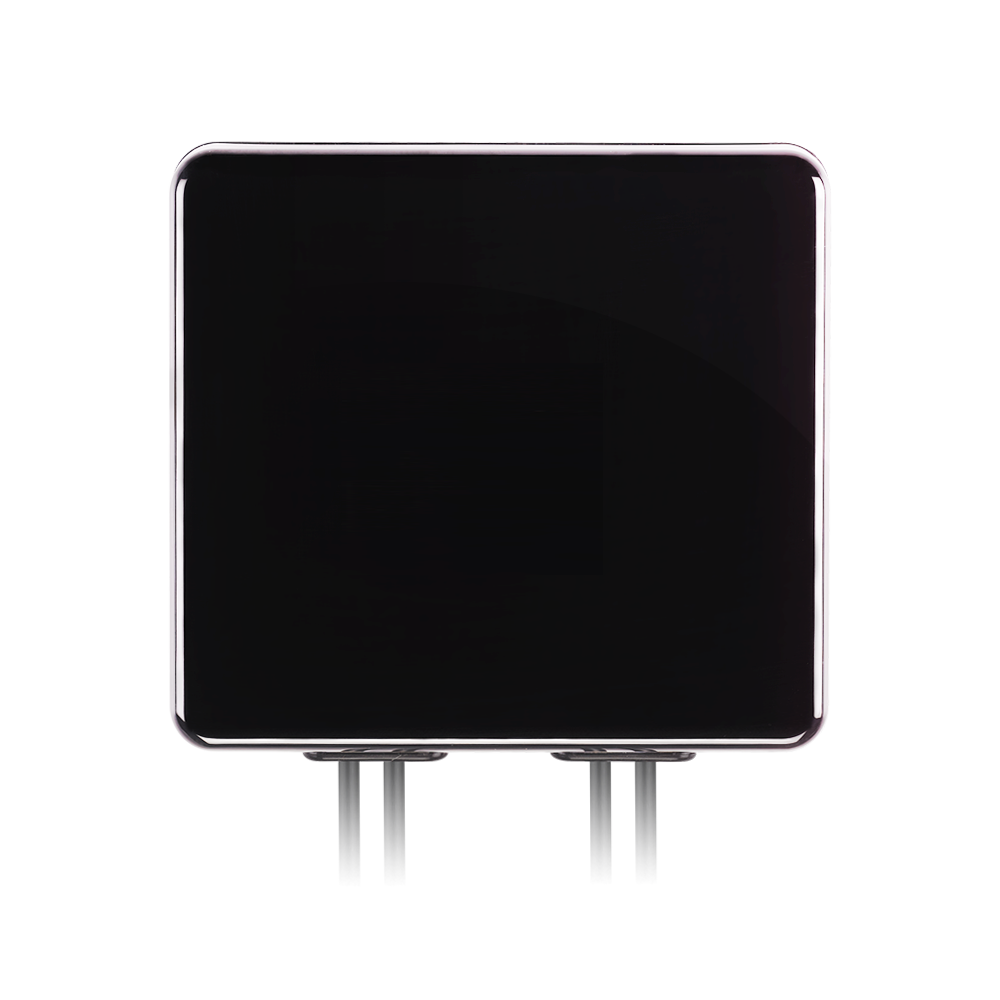

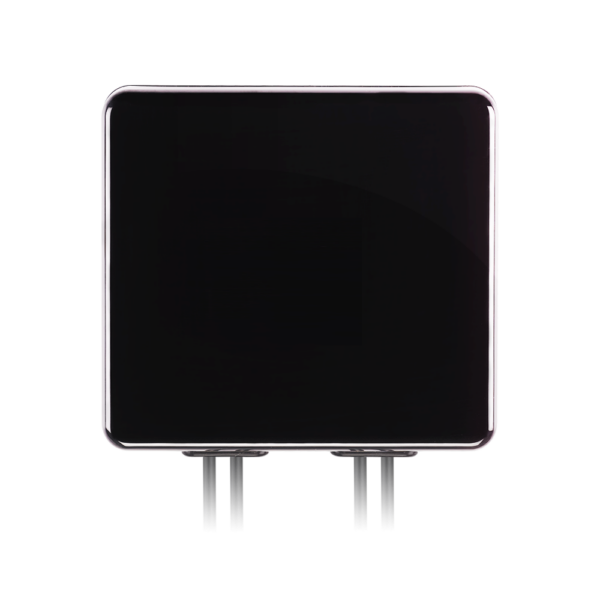

Image MA963.A.BIVW.002.wm

MA963.A.BIVW.002.wm

Guardian MA963 4-in-1 4*5G/4G MIMO Wall Mount Antenna

Overview

4-in-1 4*5G/4G MIMO Wall Mount Antenna

The Taoglas MA963.A.BIVW.002.wm Guardian is a next-generation 4-in-1 combination wall mount antenna. It is the world-first panel antenna designed for IoT Gateway and Router devices with multiple wireless technologies. This antenna delivers powerful MIMO antenna technology for LTE and Sub-6GHz 5G bands covering 600MHz – 6GHz. This antenna is designed for 5G/4G bands worldwide (including 3G & 2G fallback) for access points, terminals, and routers. CAT-M1 and NB-IoT and the recently introduced 600MHz Extended 5G/4G Band 71 are also covered. This wide bandwidth enables designers to cover a wide range of technologies by installing a single antenna installation. It is a heavy-duty, fully IP67 waterproof external M2M antenna available in both wall and adhesive mount versions, see the MA963.A.BIVW.002 for the adhesive version.

Typical use cases include
-IoT Gateway and Routers
-HD Video Streaming
-Transportation

5G/4G wireless applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation among these antennas to prevent self-interference. Low loss cables used to keep efficiency high over long cable lengths. The antenna can be mounted internally or externally on a vehicle. The MA963 comes with 3m, low loss TGC-200 coaxial cables as standard. Customized cables and connector versions are also available. Contact your regional Taoglas customer support for more information on how to integrate the MA963 or sales support.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP, Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 1.8
Length (mm) 146
Width (mm) 134
Height (mm) 26
Weight (g) 850
