Guardian MA964 4-in-1 Wi-Fi Adhesive Mount Combination Antenna with Wi-Fi 6 Included

MA964.A.CGHM.003.je

Low-Profile Adhesive Mount Housing – Mounts Flush to Wall
4* Wi-Fi (including Wi-Fi 6) MIMO 2.4GHz/5.8/7.1GHz
IP67 Waterproof Resistant Enclosure
Cable: 3m TGC-200
Connectors: FAKRA Code I Beige
Dimensions: 146 * 134 * 20 mm
RoHS & Reach Compliant

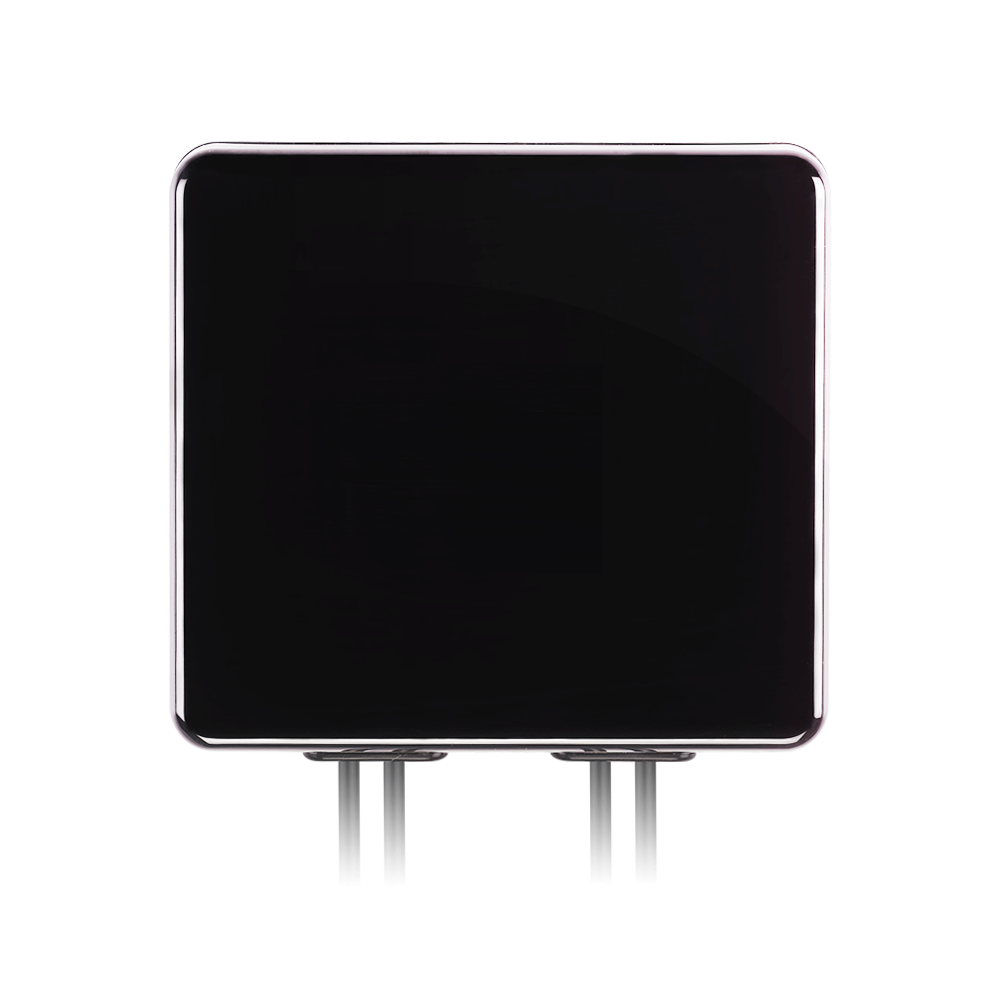

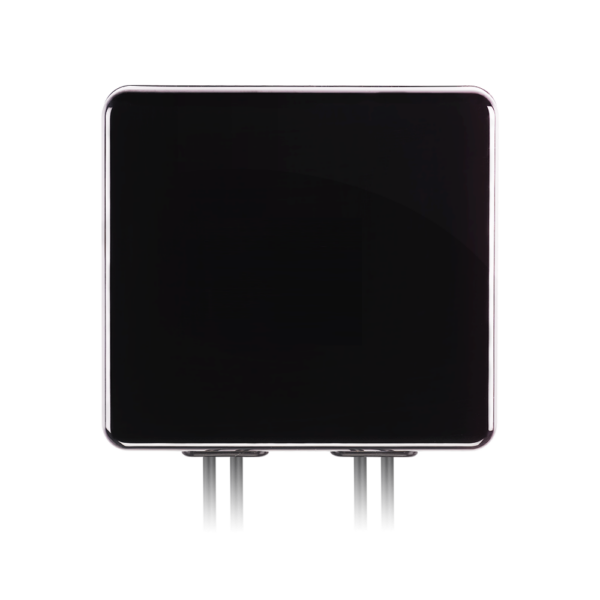

Image MA964.A.CGHM.003.je

MA964.A.CGHM.003.je

Guardian MA964 4-in-1 Wi-Fi Adhesive Mount Combination Antenna with Wi-Fi 6 Included

Overview

Guardian MA964 4-in-1 Wi-Fi Adhesive Mount Combination Antenna with Wi-Fi 6 Included

The MA964 Guardian is a low-profile 4-in-1 Wi-Fi (with Wi-Fi 6 included) MIMO adhesive mount external antenna. As part of the first series of panel antenna worldwide designed for IoT gateway and router devices, it belongs to a new generation of combination antenna. The antenna functions at all Wi-Fi frequencies (2.4-2.5GHz, 5-7.125GHz) meaning it is a future-proof solution for any Wi-Fi devices.

The MA964 Guardian is ideal for Wi-Fi applications requiring the increased data throughput and range provided by MIMO technology, all in a convenient and compact form factor. It is designed with high efficiency and gain as well as high isolation between the antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. With its heavy-duty, fully IP67 casing, the MA964 Guardian can withstand a range of environments.

All these factors make the MA964 Guardian antenna an excellent choice for use by RF professionals in:
– IoT Gateway and Routers
– HD Video Streaming
– Transportation
– Remote monitoring applications

The standard MA964 Guardian antenna comes with 3 meter, low loss TGC-200 coaxial cable. Customized cables and connector versions are also available. Also available in white, contact your regional Taoglas customer support team for further information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type FAKRA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 2.4 / 5.8GHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.17
Length (mm) 146
Width (mm) 134
Height (mm) 20
Weight (g) 700
