- Single Feed Stacked Patch Assembly
- Covering the following Bands and Constellations:
- GPS L1 and L5
- BeiDou B1/B2a
- Galileo E1 and E5a
- GLONASS G1
- Pin Mount
- Evaluation Board Dimensions: 50 x 50mm
- RoHS and REACH Compliant
New
Released
Aug 14, 2026

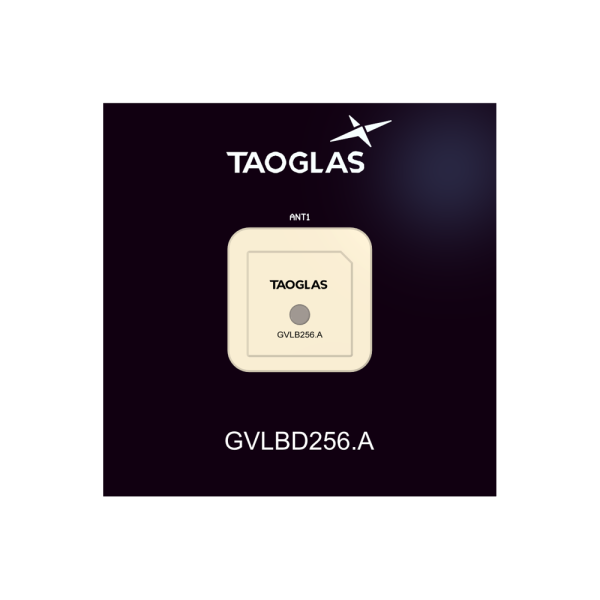

GVLBD256.A

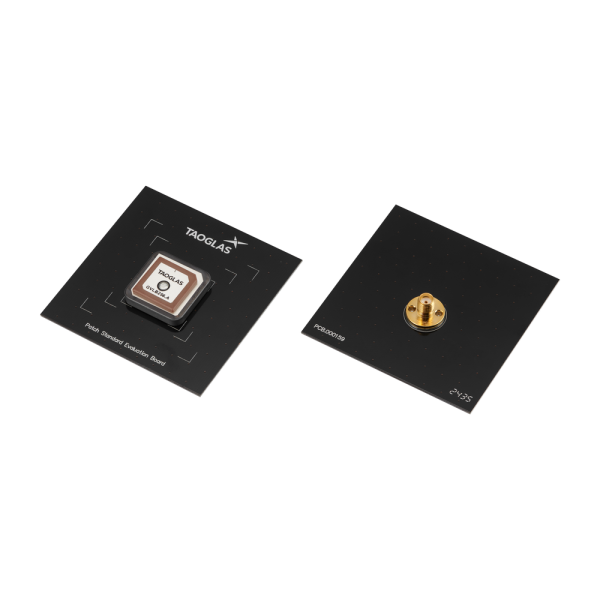

GVLB256.A GNSS L1/L5 Stacked Patch on Evaluation Board with 5pcs
GVLBD256.A
GVLBD256.A
GVLB256.A GNSS L1/L5 Stacked Patch on Evaluation Board with 5pcs
Overview
GVLB256.A GNSS L1/L5 Stacked Patch on Evaluation Board with 5pcs
The Taoglas GVLB256.A, is a dual-band GNSS L1/L5, high-performance antenna for high precision GNSS accuracy and fast positioning. It utilizes a 25 x 25 x 6mm advanced wide-band dual-stacked ceramic patch antenna with optimized gain for GPS L1/L5, Galileo, GLONASS and BeiDou. At 6mm in height, the GVLB256.A has a smaller form factor allowing for installation where height is at a premium.
Typical Applications Include:
- Automotive Navigation Systems
- Transportation
- Drones & UAVs
- Agriculture
- Industrial IoT Devices
- Timing & Synchronization
The GVLB256.A has been tuned and tested on a 70 x 70 mm ground plane and exhibits excellent radiation patterns, it has been optimized to cover the bands required for the next generation of L1/L5 GNSS receivers that are currently on the market.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | GVLB256.A |
| Technology | Evaluation Boards, GNSS |
| Width (mm) | 50 |
| Length (mm) | 50 |
| Height (mm) | 1 |
| Materials | Ceramic |
