GW.59 2.4/5.8GHz 3dBi Dipole Antenna, RP-SMA(M) Hinged

GW.59.3153

2.4GHz~5.8GHz 3dBi Terminal mount Dipole Antenna
Durable TPU Housing
Hinged 90 degree
RP-SMA(M) Connector
Dimensions: 156 * Ø13 mm
RoHS & REACH Compliant

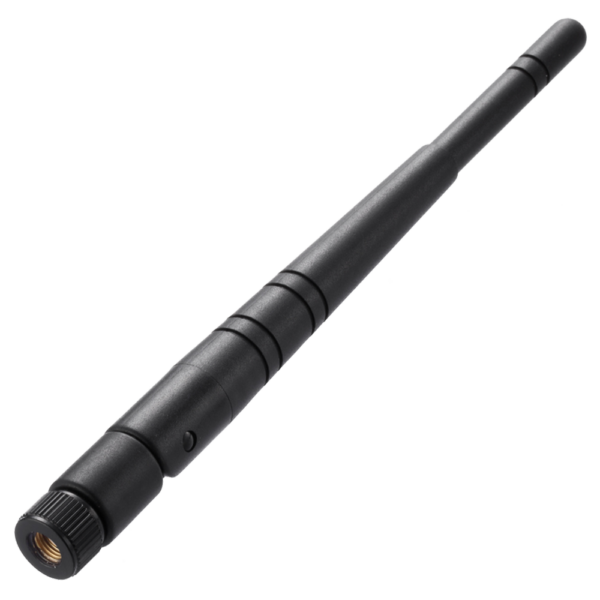

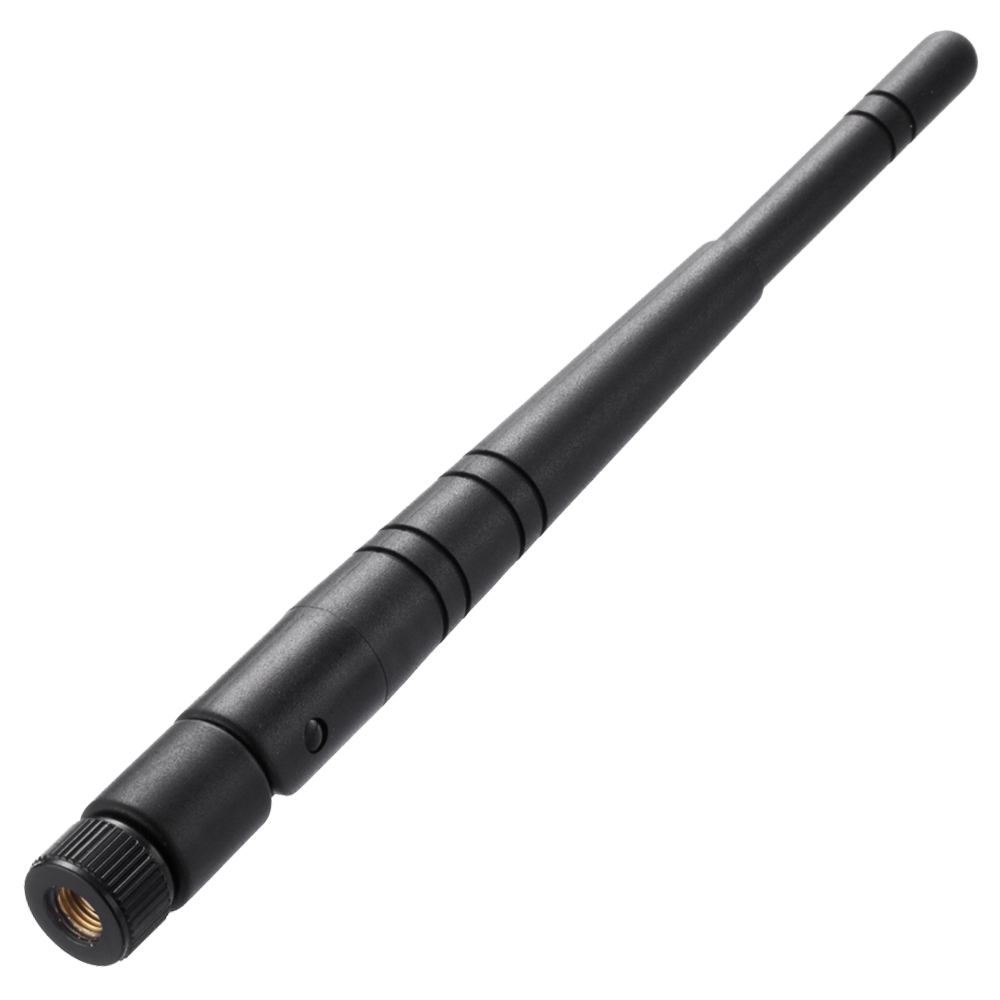

Image GW.59.3153

GW.59.3153

GW.59 2.4/5.8GHz 3dBi Dipole Antenna, RP-SMA(M) Hinged

Overview

The Taoglas GW.59 dipole RP-SMA terminal mount antenna is ideal for 2.4GHz/5.15~5.85GHz wireless applications such as Bluetooth and Wireless LAN. At 156mm in length, with an omnidirectional radiation pattern and 3dBi gain across all bands, it ensures constant reception and transmission. The antenna structure is designed for robust usage and the ruggedized housing is made with TPU giving superior environmental reliability and a quality finish.

The antenna can be rotated 90 degrees on the base hinge for ease of positioning. Many module manufacturers specify peak gain requirements for any antennas that is to be connected to that module. Upon testing of any of our antenna with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas peak gain will be below the peak gain requirements. Taoglas can then issue a specification and/or report for this selected WiFi antennas in your device that will clearly show it complying with the peak gain requirements, so you can be assured you are meeting regulatory requirements for that module.

It is better not to select an embedded antenna with very low free-space peak gain (<2dBi) directly, as this antenna would have worse performance in your device, and lead to compromised performance compared to using a Taoglas antenna. For more information, contact your regional sales office.

Technical Specification
Name Value
Antenna Type External Antennas, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type RP-SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4 / 5.8 / 7.125GHz
Connector Polarity Reverse
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 1.43
Wi-Fi Bands 2.4/5.8/7.125GHz
Length (mm) 13
Width (mm) 13
Height (mm) 155.7
Weight (g) 17.5
