Hercules G21 White 3G/2G Cellular Permanent Mount Antenna, 3m RG-174

G21.B.W.301111

Hercules GEN II – White Version
Penta-band GSM/CDMA/UMTS/HSPA/HSPA+/WCDMA
850/900/1800/1900/2100MHz
SMA(M) – 3M RG174 cable (standard)
No Ground Plane Required
Dimensions: H: 29mm, Ø: 49mm
First Tier Automotive Approved
IP65 Rated Enclosure
RoHS & REACH Compliant

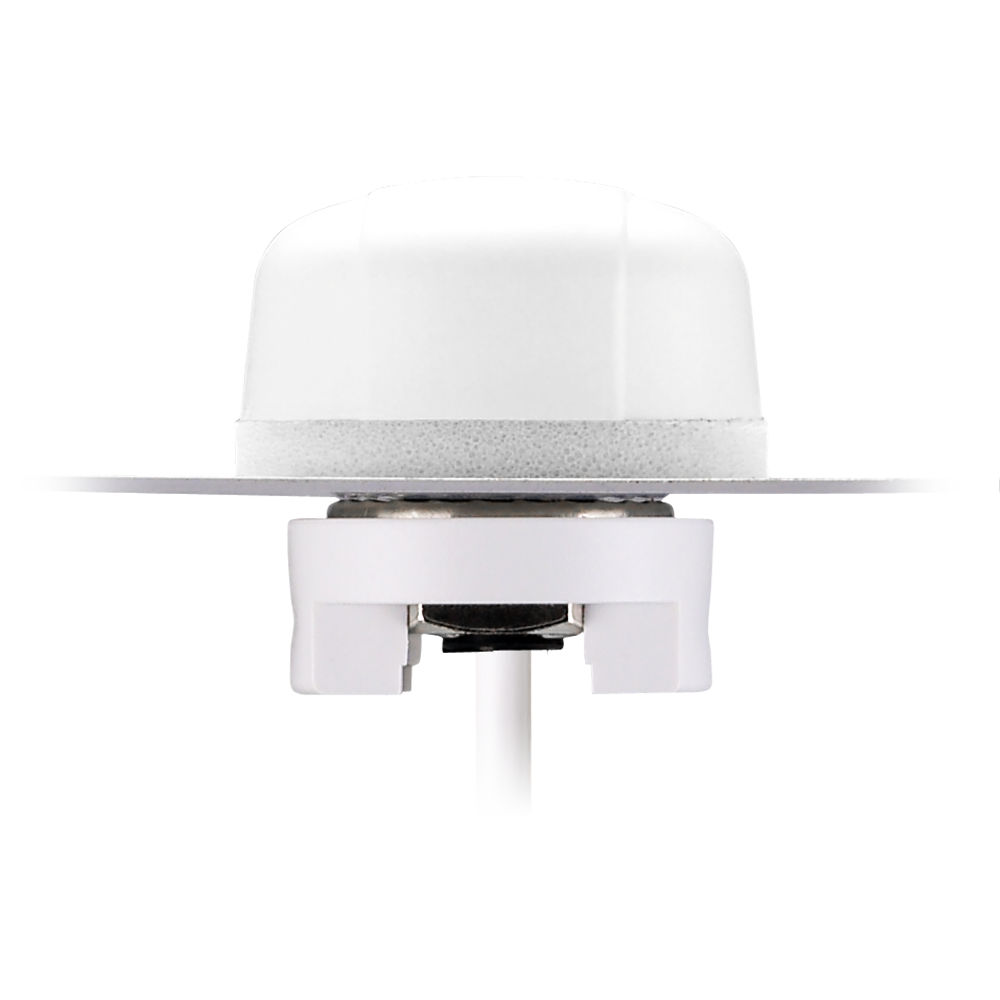

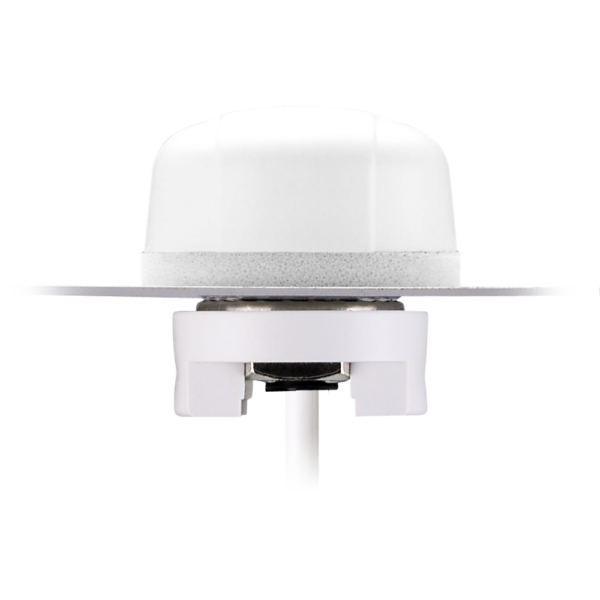

Image G21.B.W.301111

G21.B.W.301111

Hercules G21 White 3G/2G Cellular Permanent Mount Antenna, 3m RG-174

Overview

The G21.W (Generation II) Hercules is a high-performance steel thread-mount Pentaband cellular antenna for external use on vehicles and outdoor assets worldwide. Omnidirectional high gain across all bands ensures constant reception and transmission. Durable UV resistant ABS housing is IP65 rated, resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm. Designed to not catch on tree-branches. This antenna can be mounted on metal structures.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 824-896/880-960/1710-1880/1850-1990/1920-2170MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain 2.5
Length (mm) 47.8
Width (mm) 47.8
Height (mm) 28.5
Weight (g) 140
