Hercules MA120 2in1 450MHz and 868MHz Permanent Mount Antenna

MA120.A.QP.001

Hercules 2in1 Screw Mount 450MHz & 868MHz
ISM bands 450/868MHz
450MHz – 1m RG-316 – SMA(M)
868MHz – 1m RG-316 – SMA(M)
No Ground Plane Required
IP65 Rated Enclosure
Dimensions: 49mm*49mm*28.5mm

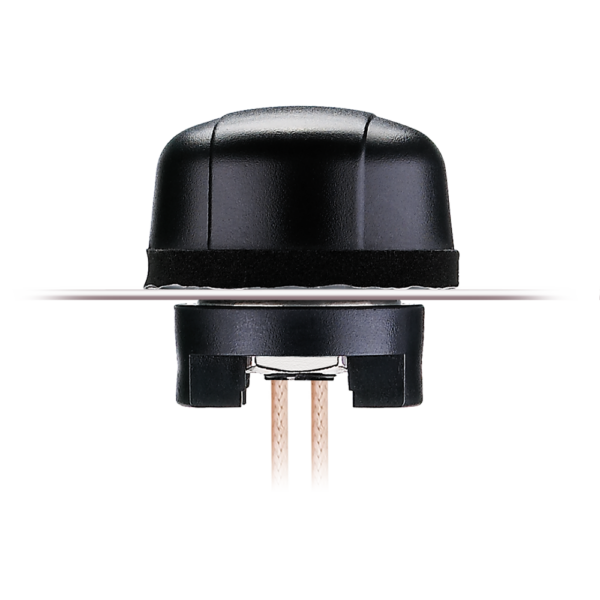

Image MA120.A.QP.001

MA120.A.QP.001

Hercules MA120 2in1 450MHz and 868MHz Permanent Mount Antenna

Overview

The MA120 antenna is a high-performance 450MHz and 868MHz combination thread mount antenna for external use with smart meters, gateways, mesh networks, vehicles and outdoor and indoor assets. It is designed for heavy-duty work with extra thick threads. The UV resistant polycarbonate housing is IP65 rated, resistant to vandalism and direct attack. At only 29mm high and a diameter of 49mm this unique antenna is the lowest profile and smallest worldwide. The antenna has been tested in free space and on varying sizes of ground-planes, showing good frequency stability, allowing its use in many different mounting environments.

A closed cell foam on base prevents water leaking into the mounting hole, while also providing a secure seal to a contoured surface. The standard cable and connector is 1 meter RG316. High-quality FEP (Teflon) jacket is used for the cable. This makes the cable very flexible and able to operate in high-temperature environments, corrosion resistant. Note this antenna is designed for short-range communication in the range of meters to hundreds of meters. For cable lengths longer than 2 meters or where very long communication ranges are desired, apart from needing a higher transmit power from the transmitter, it is recommended to go with much larger high gain stand-alone whip or fiberglass Omni type antennas, to counteract losses in the cables.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-316
Connector Body Style Straight
Polarity Linear
Frequency Range 450 / 868MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 3.02
Length (mm) 49
Width (mm) 49
Height (mm) 28.5
Weight (g) 140
