Hercules MA515 2in1 Permanent Mount 2.4GHz 2xMIMO, 1m RG-316

MA515.C.CG.001

Hercules Screw Mount MIMO 2.4GHz
2.4-2.4GHz(1&2) ā€“Peak Gain Gain 3dBi, Efficiency 56%
UV and vandal resistant PE housing
1m RG-316 RP-SMA(M) Standard
No Ground Plane Required
IP65 Rated Enclosure
High Isolation Between Antenna Elements
Dimensions: 49*49*29mm

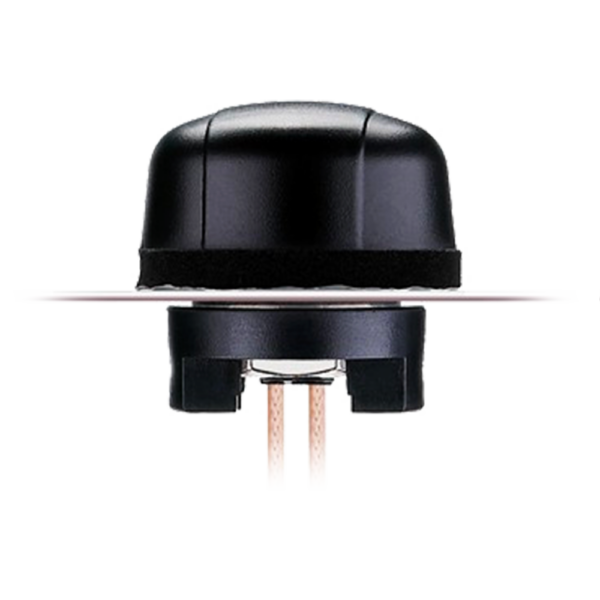

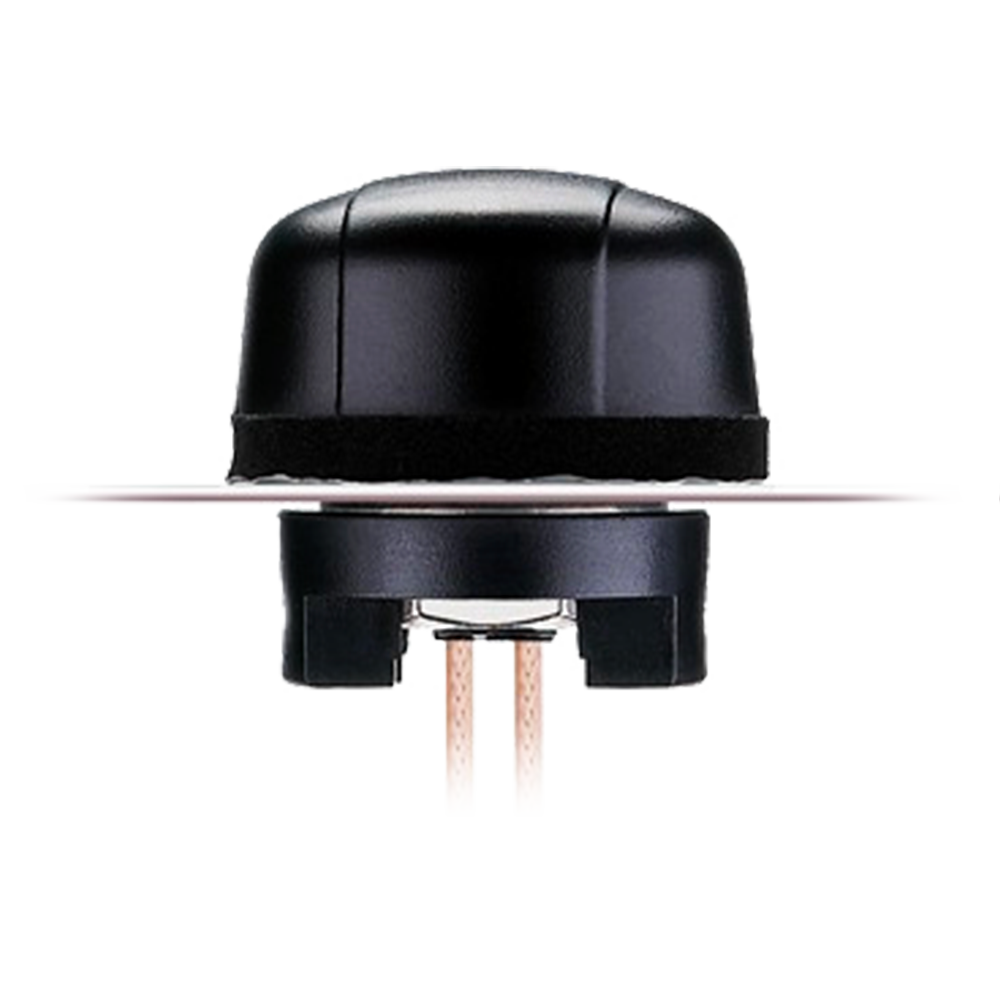

Image MA515.C.CG.001

MA515.C.CG.001

Hercules MA515 2in1 Permanent Mount 2.4GHz 2xMIMO, 1m RG-316

Overview

MIMO communication systems are needed in high-speed wireless applications. A MIMO (Multiple-Input-Multiple-Output) system uses at least two antenna structures and is more advantageous than single-input-single-output (SISO) by increasing channel capacity and reducing transmitting power. MIMO antennas should have compact structure, high radiation efficiency, low envelope correlation, and high isolation between the signal ports. In small structures (antennas spaced closely), the application of MIMO technology has been restricted by high degree of coupling and spatial correlation between antenna elements due to the limited available space. The isolation between antennas become critical as it can deteriorate the system performance and decreases channel capacity.

This unique omnidirectional 3dBi antenna provide high efficiency and high isolation (>20dB), between antennas elements in a heavy-duty low profile compact structure, delivering powerful MIMO antenna technology for Wi-Fi 802.11n. The antenna screws down permanently onto a roof or metal panel and can be pole or wall mounted. The two antenna elements are vertically polarized, matching well with the polarization of most wireless routers antennas. An envelope correlation co-efficiency of only 0.2 ensures good performance with the MIMO module. For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 29mm high, the Hercules MA515 MIMO antenna provides an unobtrusive, robust, rugged, IP65 rated antenna that is durable even in extreme environments.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type RP-SMA
Cable Type RG-316
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4GHz
Connector Polarity Reverse
Cable Length (mm) 1000
Packaging Box, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 2.9
Length (mm) 49
Width (mm) 49
Height (mm) 29
Weight (g) 135
