High performance terminal mount antenna 440-510MHz

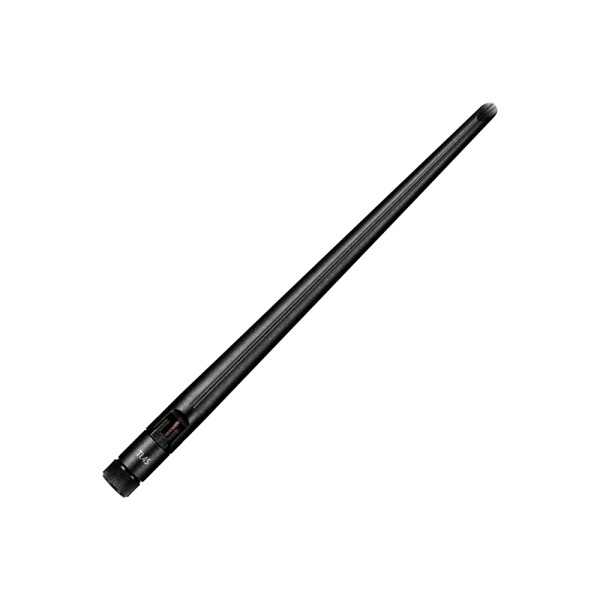

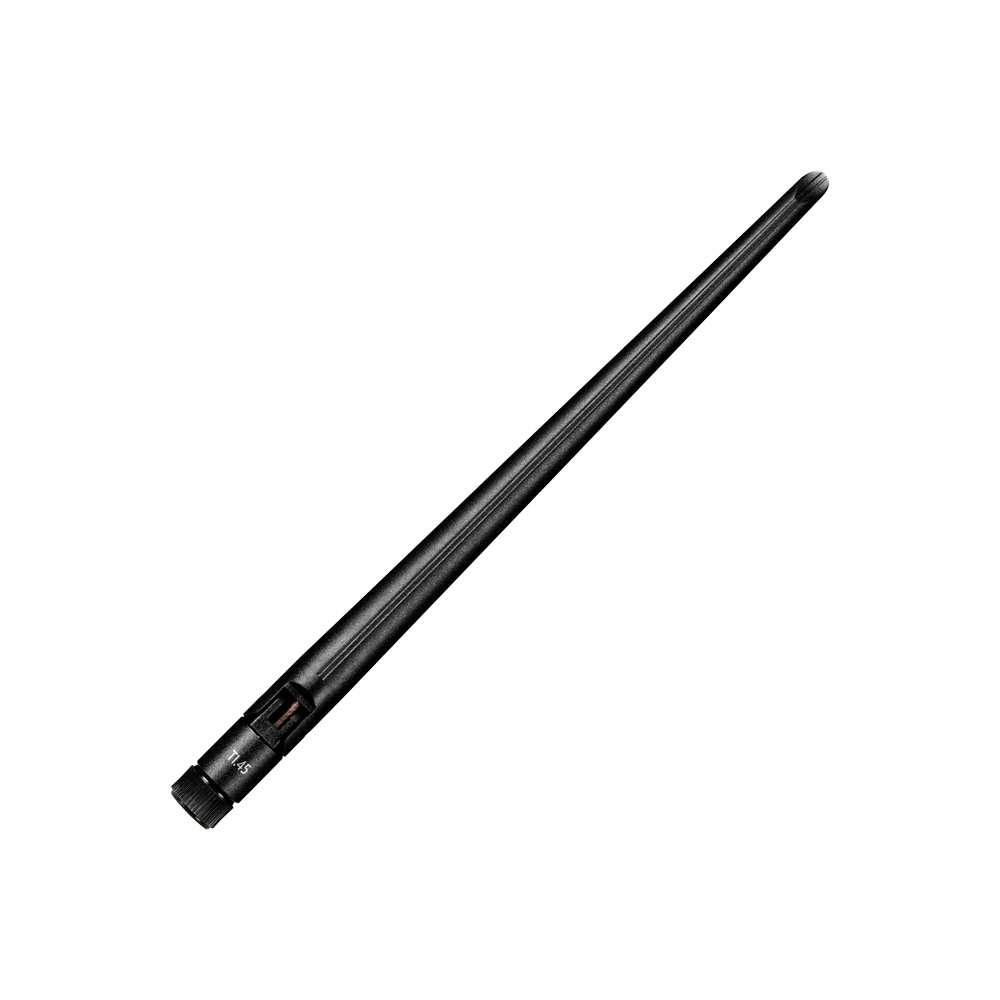

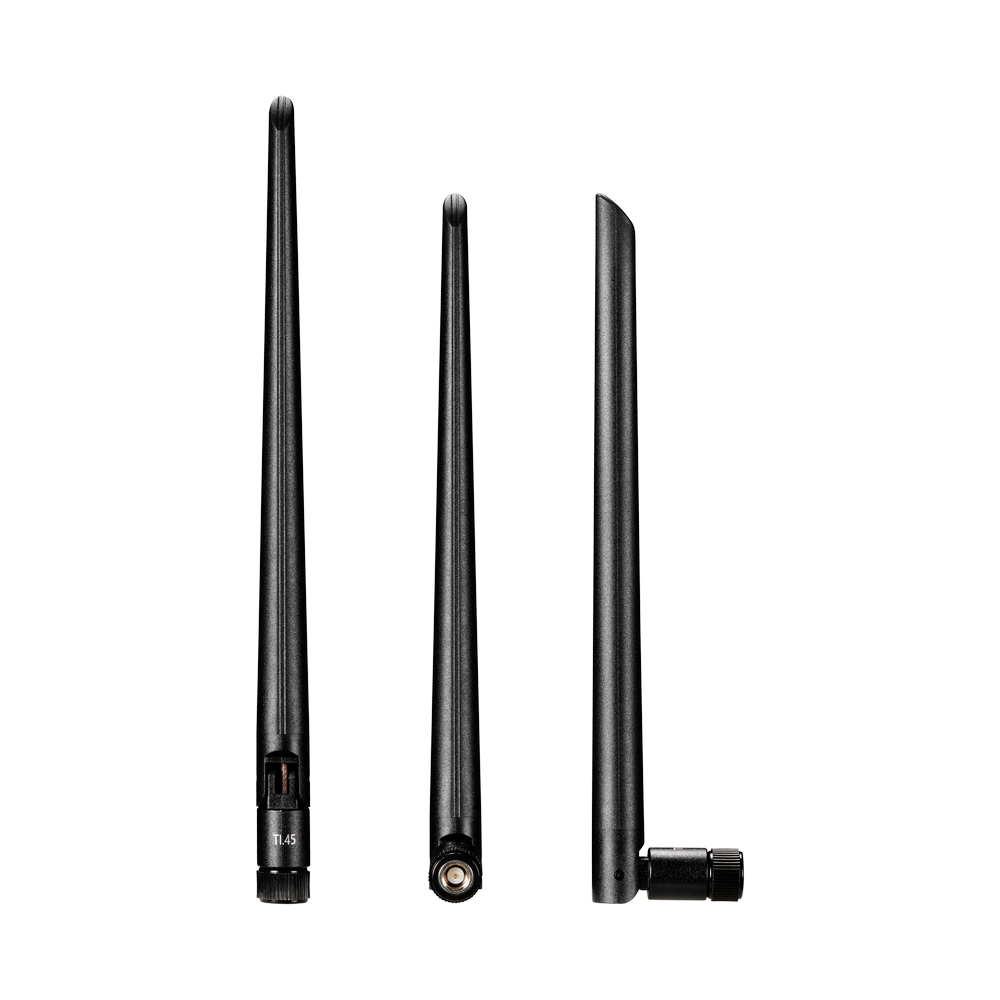

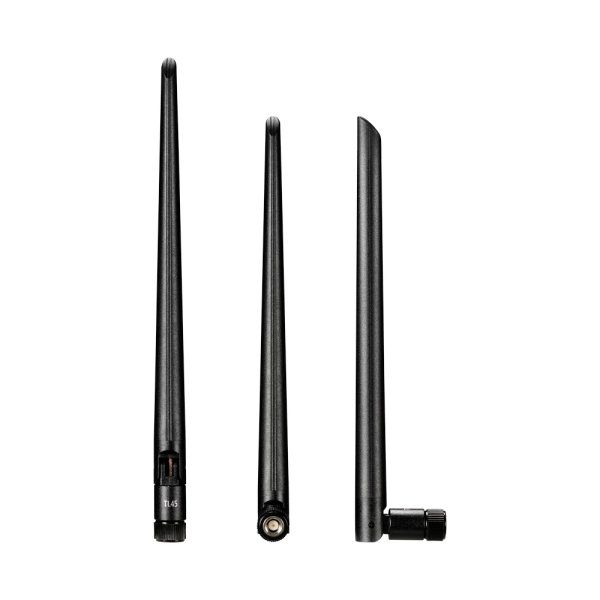

The TI.45.A113 is a high performance terminal mount antenna 440-510MHz, it is 198mm tall and 13mm in diameter and can be mounted straight or right angled due to its hinged SMA(M) connector which comes as standard. This antenna performs very well with metal enclosures, which would be a common mounting placement for this antenna as it will be used with a variety of smart meters, remote monitoring devices.
The sub 600MHz spectrum has been opened up to a range of cellular bands between 400 and 500MHz, the TI.45 is the perfect antenna for these sub 500MHz bands such as band 31, band 72 and band 73.
Typical Application include:
• Smart Metering
• Remote Monitoring
• Industrial IoT
• Connected Enterprise
The TI.45 is manufactured using TPEE which makes it very lightweight at just 22.5g. The swivel and hinge mechanism allows the antenna to be orientated in different directions which helps to avoid other antennas or objects. The antenna connector type can be customizable, please contact your regional Taoglas customer support team for installation guidelines or additional support to integrate and test this antenna’s performance in your device.
