I-Bar GSA.8821 3G/2G Cellular Adhesive Antenna, SMA(M), 3m RG-174

GSA.8821.B.301111

Penta-band GSM I-bar Antenna
GSM/CDMA/PCS/DCS/UMTS/WCDMA
850/900/1800/1900/2100MHz
Low profile for Covert Installations
Adhesive Mounting
Omni Directional Radiation Pattern
First Tier Automotive Approved
Cable: 3m RG-174
Connector: SMA(M)
Dimensions: 107*15*6mm
RoHS & REACH Compliant

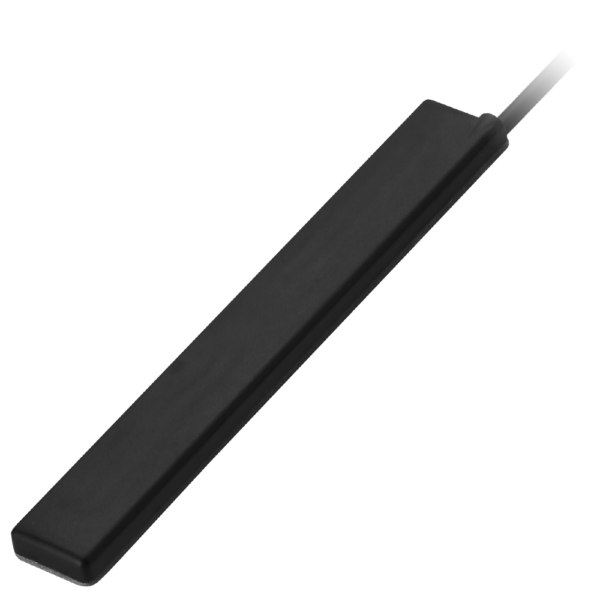

Image GSA.8821.B.301111

GSA.8821.B.301111

I-Bar GSA.8821 3G/2G Cellular Adhesive Antenna, SMA(M), 3m RG-174

Overview

GSA.8821 I-Bar Penta-band Cellular Antenna is flexible and robust. The slim-line design is ideal for covert and convenient installation in automotive vehicles. Its omnidirectional gain across all bands ensures constant reception and transmission. This dipole antenna is designed to be mounted on glass or plastic (not on metal). Cables and connectors are fully customizable. It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 824 - 2170MHz
Connector Polarity None
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 0.67
Length (mm) 106.7
Width (mm) 14.7
Height (mm) 5.8
Weight (g) 40
