IAA.01 Iridium Automotive Magnetic Mount Antenna, 1.2M RG-174


External Magnetic Mount IRIDIUM Antenna
1616 − 1626.5 MHz
Designed to work in conjunction with a 30*30cm Ground plane
Connector: SMA(M) ST
Cable: 1.2m RG-174
Dimensions: 45*45*15mm
Custom cables and connectors available
Iridium has certified the IAA.01.121111 antenna for commercial use in connection with the Iridium Communications System
RoHS & REACH Compliant

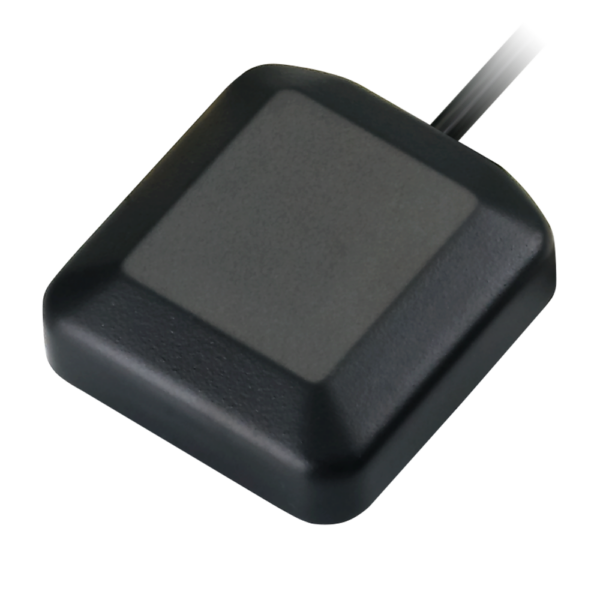

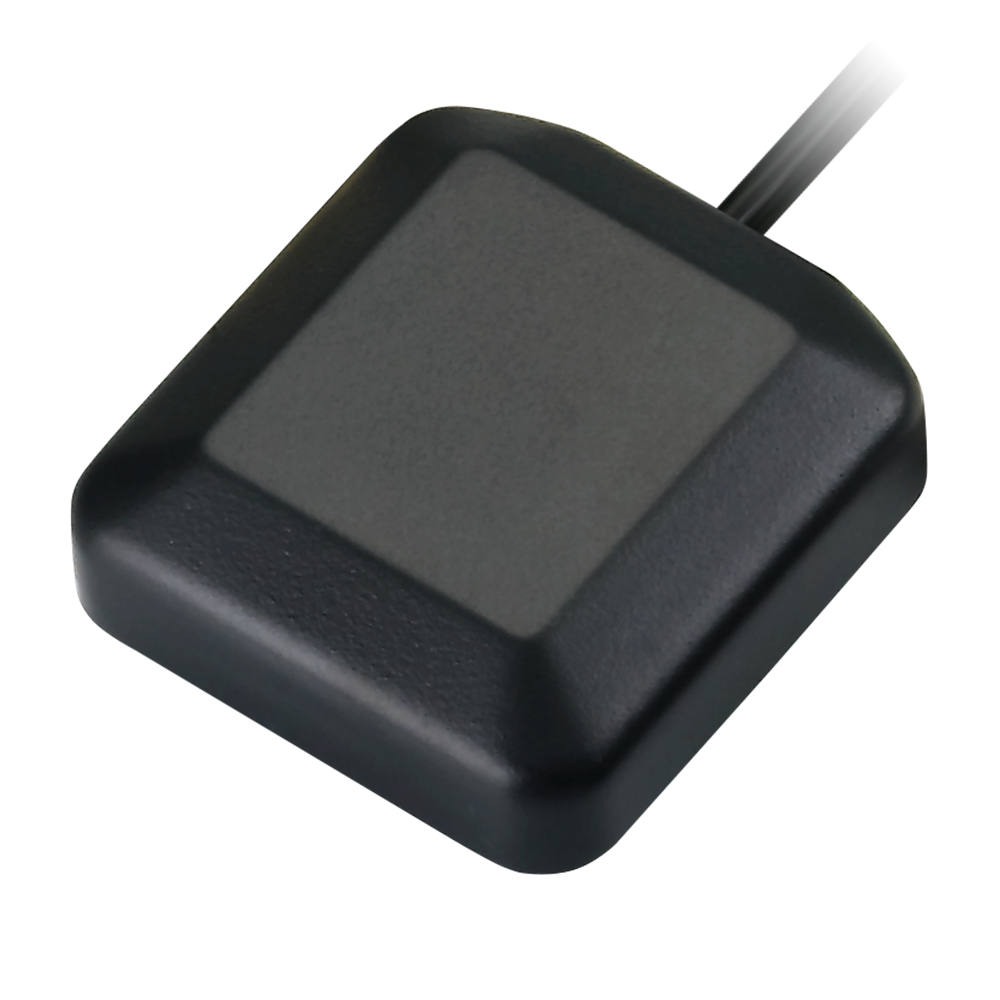

Image IAA.01.121111


IAA.01 Iridium Automotive Magnetic Mount Antenna, 1.2M RG-174


The IAA.01 is a high-performance magnetic mount antenna which is designed specific to communicate efficiently with the Iridium® Satellite Communication system. The IAA.01 has been specifically designed to work on a 30*30cm ground plane

The IAA.01 utilises the Taoglas expertise in ceramics by incorporating a ceramic patch tuned specifically for the antenna environment, giving greater stability. The antenna housing is strong, corrosive proof and waterproof to IP67. The magnetic mount allows for easy installation and removal between vehicles or assets, it is easily converted to an adhesive type for greater flexibility.

Iridium® has certified the IAA.01.121111 Antenna for commercial use in connection with the Iridium Communications System. Iridium Satellite LLC is the owner of “Iridium” and all other Iridium trademarks, service marks and logos contained herein.

The cable and connector are fully customizable, for more information contact your regional Taoglas Customer Support Team.

Technical Specification
Name Value
Antenna Type External Antennas, Satcom
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 70°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1616-1626.5MHz
Connector Polarity None
Cable Length (mm) 1200
Packaging Carton
IP Rating IP67
RoHS Yes
Gain (Max) 3.7
Length (mm) 45
Width (mm) 45
Height (mm) 15.1
Weight (g) 43.5
