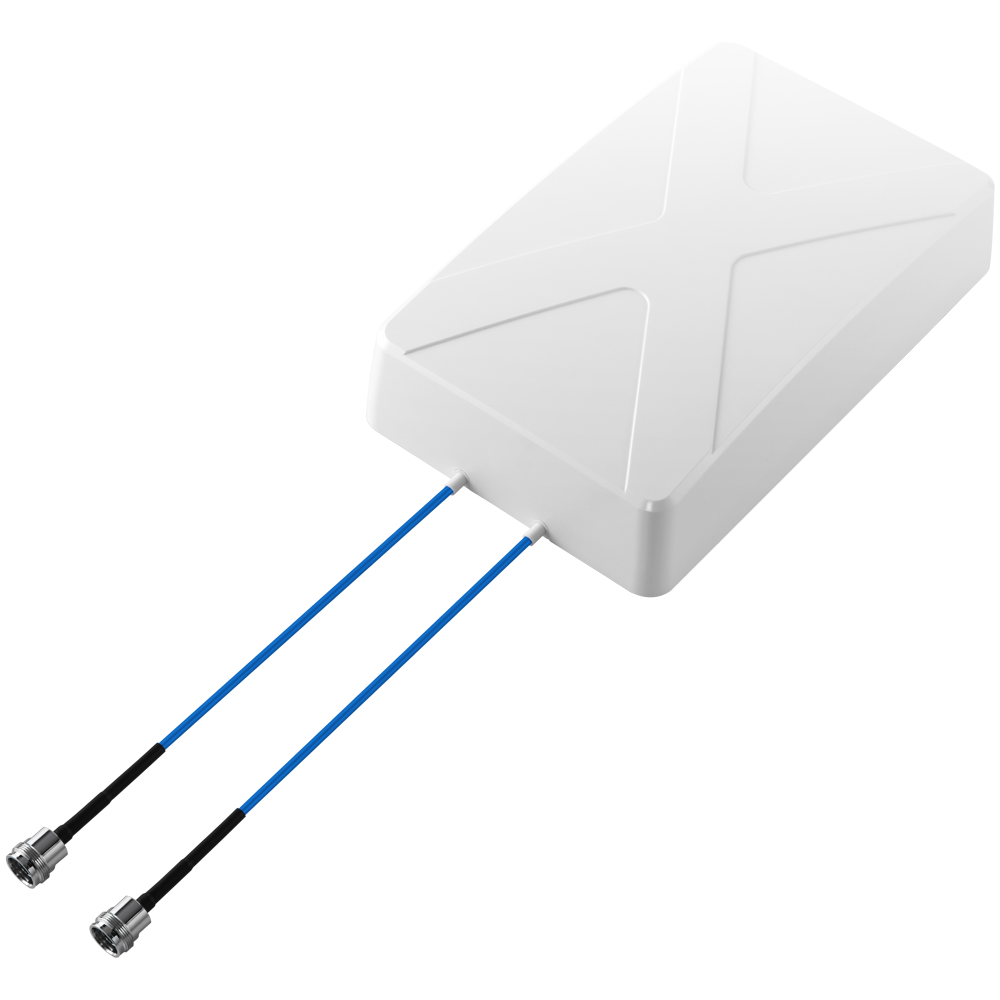

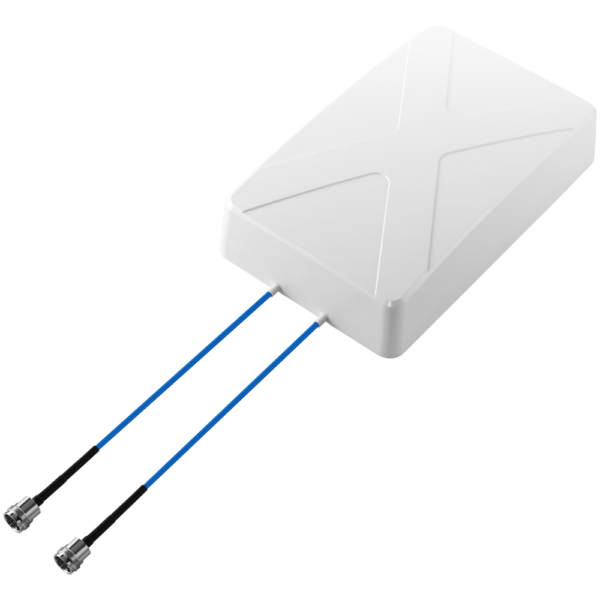

iDAS.W.001 – MIMO LTE Wall Mount Panel Antenna


2* LTE MIMO Antenna for Indoor Distributed Antenna Systems
Wall Mount Rectangular Design
Worldwide LTE Bands including 3G and 2G:
698 to 960MHz / 1710 to 2170MHz /
2500 to 2690MHz Antenna
Dimensions: 308*190*72mm
IP54 waterproof rating
Cable: 2* 300mm Low Loss Plenum rated RG-402 Equivalent
Connector: 4.3-10 mini-DIN [F]
RoHS & REACH Compliant
Custom Cables and Connectors Available

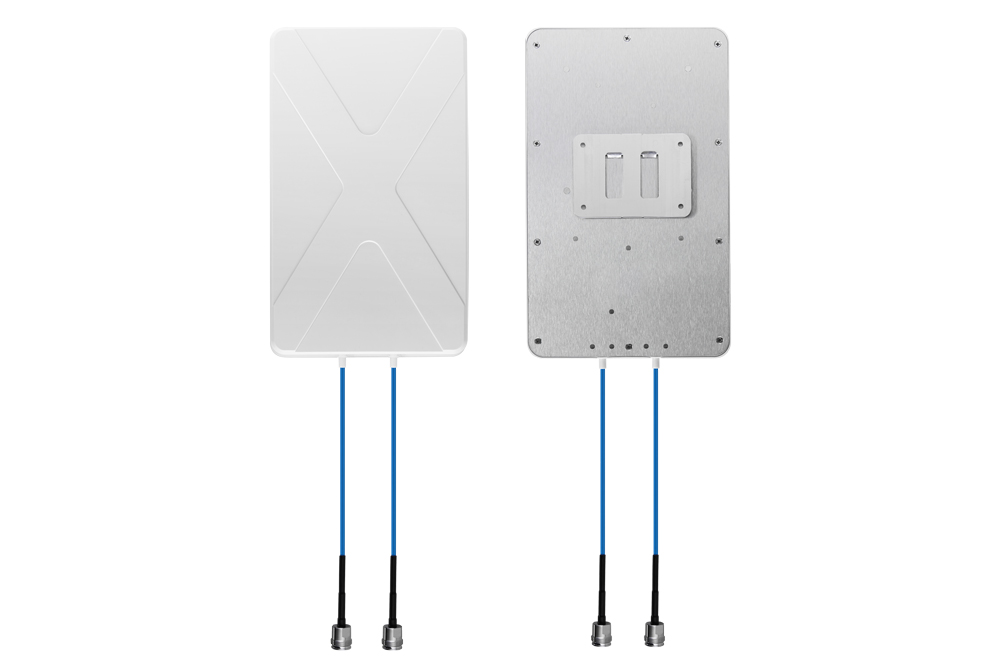

Image iDAS.W.001


iDAS.W.001 – MIMO LTE Wall Mount Panel Antenna

iDAS Indoor Wireless Wall Mount Antenna

This iDAS Indoor wireless wall mount antenna is a compact LTE MIMO antenna with high performance and low Passive Inter-Modulation (PIM) designed for use in indoor distributed antenna systems (iDAS) to address building coverage problems. It delivers powerful worldwide 4G LTE MIMO coverage while also covering the 3G and 2G bands and features a compact, easy-to-install design.

iDAS networks are an excellent solution to bring LTE coverage to areas traditional base stations cannot reach:
  • Stadiums, Arenas, Convention Centers
  • Hotels, Shopping Malls, Hospitals
  • Factories, Warehouses
  • Airports, Train Stations, Bus Stations
  • Schools, College Campuses
  • Office Buildings, High-Density Residential Complexes

LTE 4G applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the signal to noise ratio and throughput required to solve these challenges. The UberDAS antenna is also designed for high isolation and low PIM between the two MIMO antennas to prevent self-interference. Low loss plenum rated cables are used to keep efficiency high while complying with stringent fire rating standards.

Taoglas offers customizable cable lengths, cable types and connector types. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type 4.3-10 mini-DIN (F)
Cable Type RG-402
Connector Body Style Straight
Polarity Linear
Frequency Range 700-4000MHz
Connector Polarity Normal
Cable Length (mm) 300
Packaging Box, Carton
IP Rating IP54
RoHS Yes
Gain (Max) 2
Length (mm) 308
Width (mm) 190
Height (mm) 72
Weight (g) 900
