- Integrated 5G/4G Directional Antenna for Ericsson R920
- Wideband 5G, Wi-Fi®, and GNSS, covering 600-6000 MHz
- 1 x GNSS, 2 x Wi-Fi®, 1 x Bluetooth®, and 2 x 5G/4G Antennas

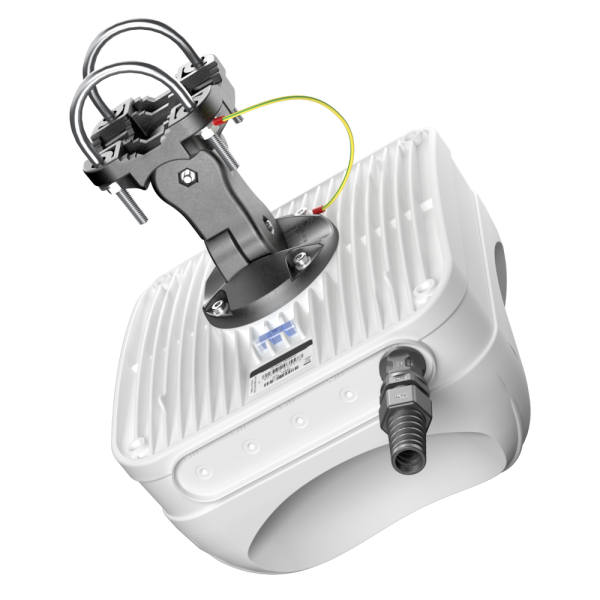

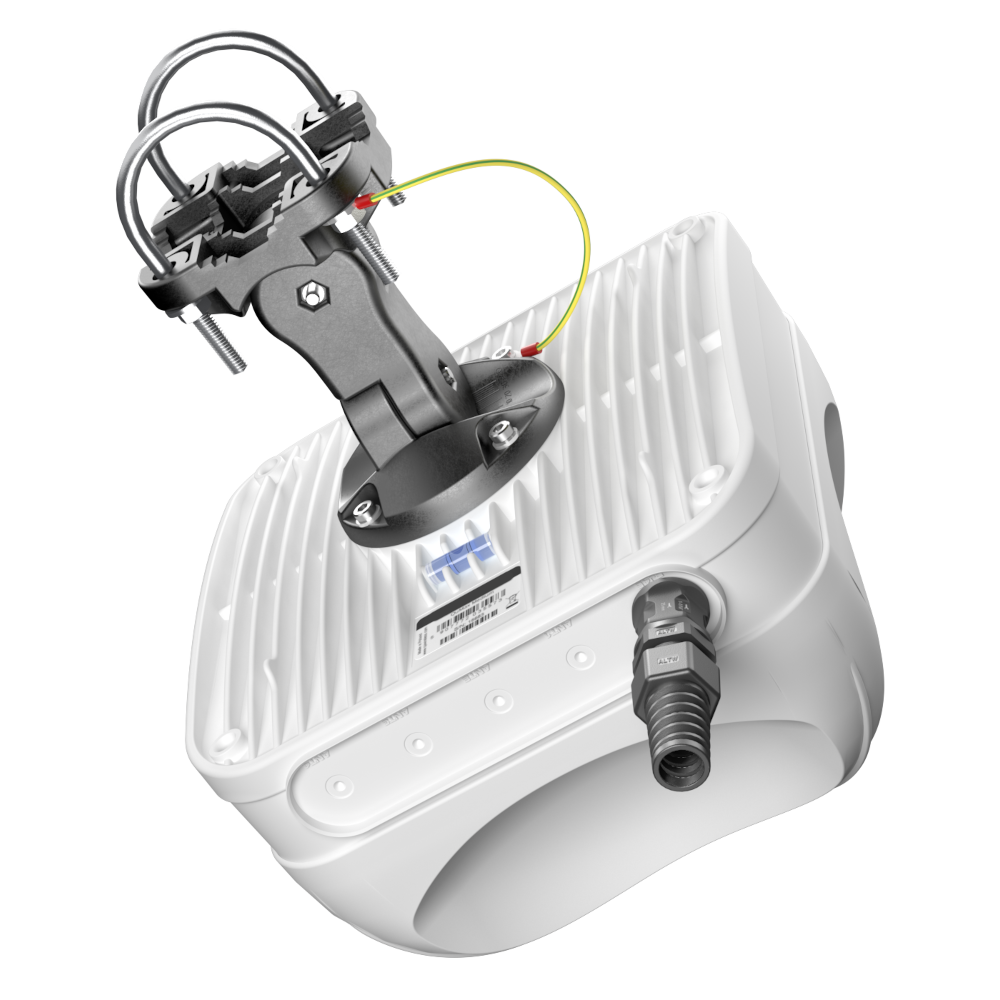

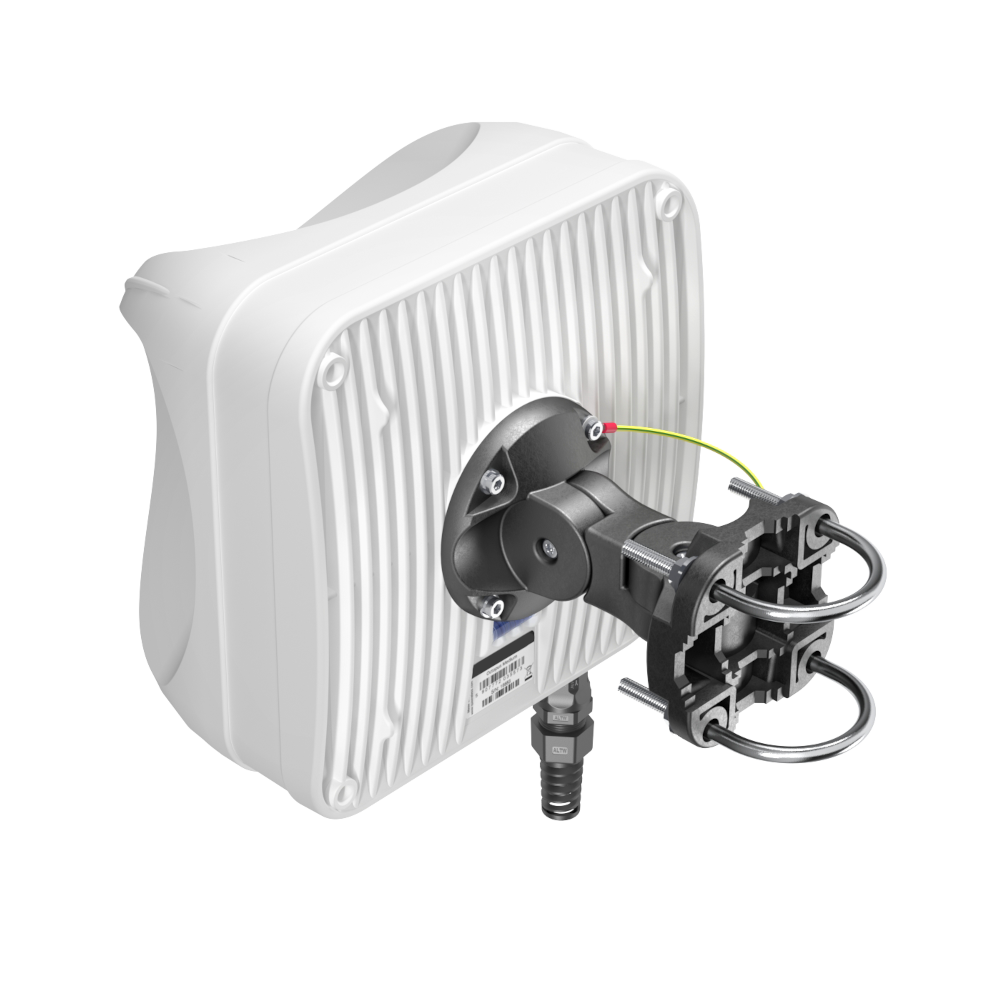

- Wall / Pole mount antenna
- IP67 rated waterproof enclosure
- Connector: RJ45
- Dimensions: 269 x 270 x 177 mm
- RoHS and REACH Compliant
Thunder THDR92PP Integrated Wideband 5G/4G Directional Antenna for Ericsson R920 including PoE Passive
THDR92PP
THDR92PP
Thunder THDR92PP Integrated Wideband 5G/4G Directional Antenna for Ericsson R920 including PoE Passive
Contact for Pricing/Information
Reach out to our Public Safety & Critical Infrastructure Team for more information and pricing.
Overview
Integrated Multi-Band 5G/LTE Directional Antenna for Ericsson (Cradlepoint) R920

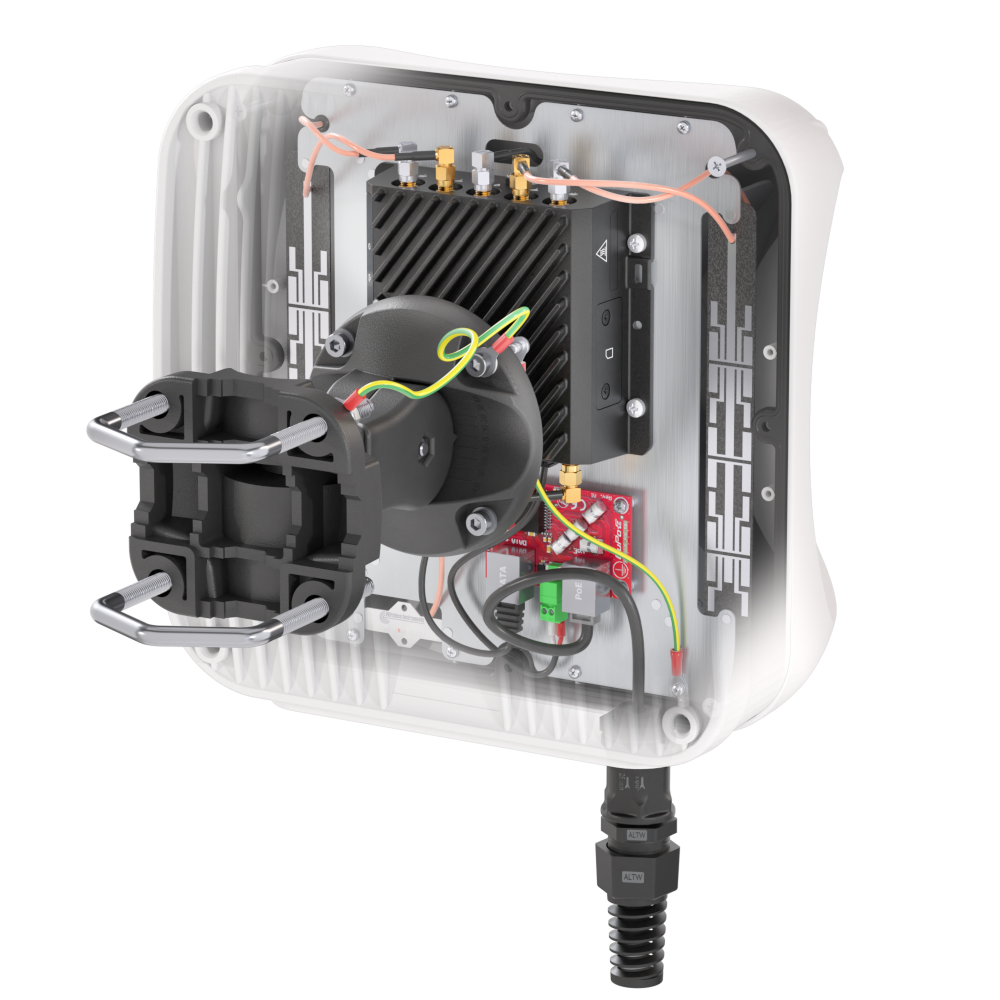

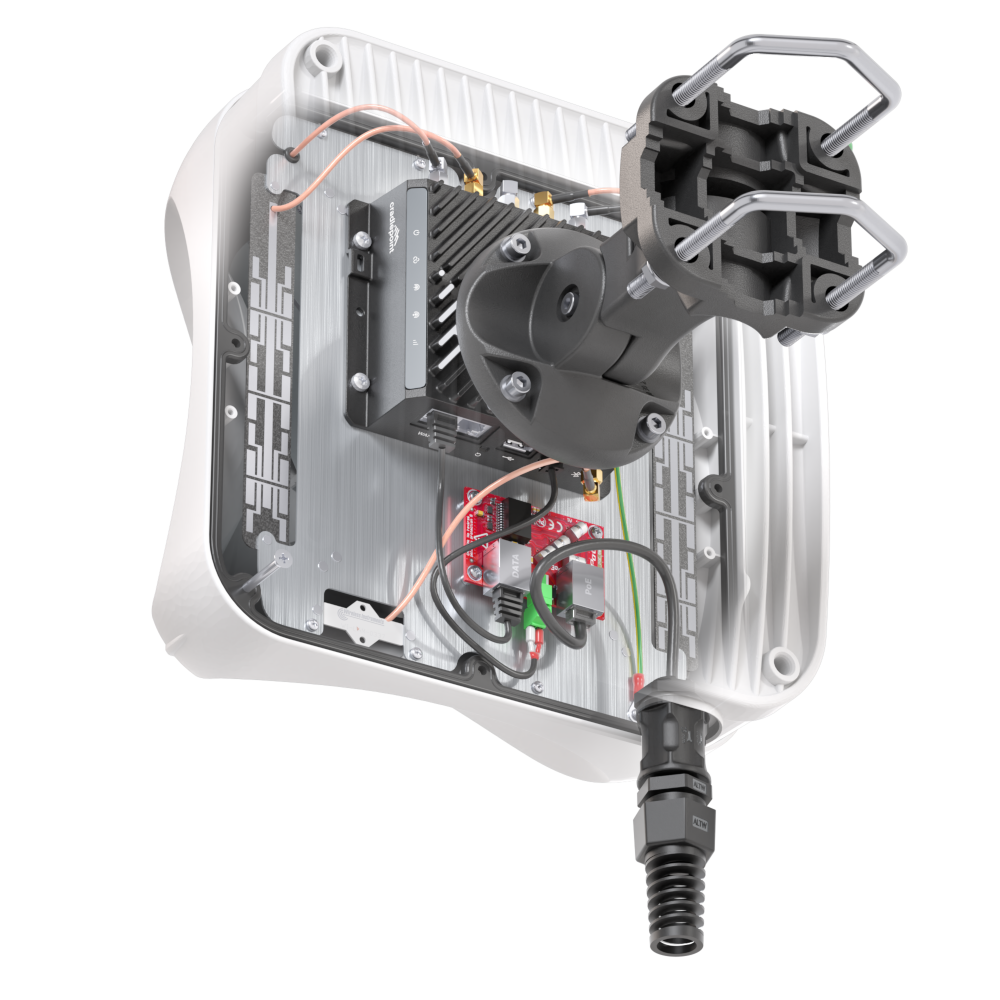

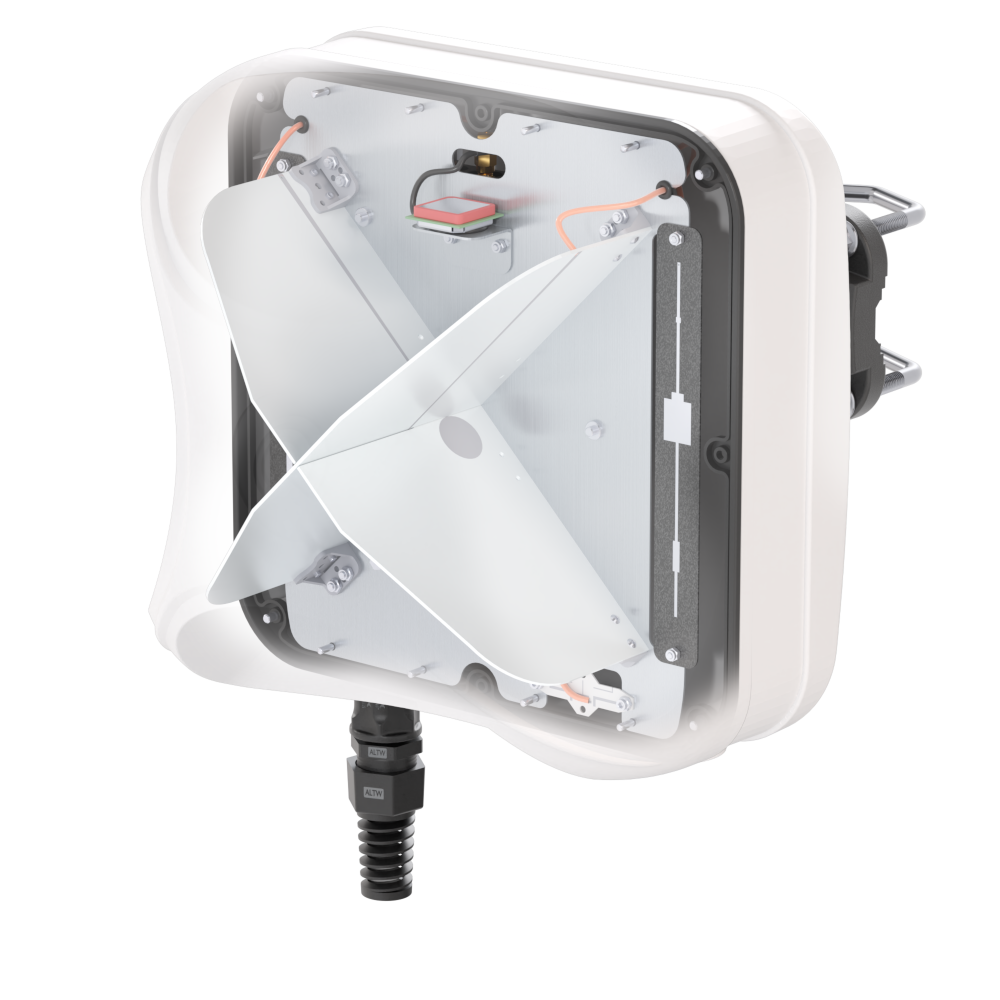

The Taoglas THDR92 is an all-in-one directional antenna for Ericsson (Cradlepoint) R920 routers is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G, Wi-Fi®, Bluetooth®, and GNSS antennas. If you use the Ericsson (Cradlepoint) R920 router with a THDR92 Thunder Integrated Directional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
- Critical Communications and Public Safety
- Transportation & Fleet Management
- Industrial and Rugged Environments
- Enterprise & IoT Deployments
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THDR92 is a fantastic solution for 5G, Wi-Fi®, Bluetooth®, and GNSS applications. The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
Contact your regional Taoglas customer support team for more information.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 80 |
| Mounting Style | Pole, Wall |
| Termination Style | Connector Mount |
| Connector Type | RJ45 |
| Length (mm) | 269.5 |
| Width (mm) | 269 |
| Height (mm) | 177 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarization | Vertical |
| Frequency Range | 600 - 6000 MHz |
| Connector Polarity | Normal |
| VSWR | <3 |
| Weight (g) | 2800 |
| RoHS | Yes |
| Gain (Max) | 7.5 |
