New Released Apr 23, 2025

Thunder Integrated Multi-Band 5G/LTE Omnidirectional Antenna for Ericsson R1900

THOR19

Integrated 5G/LTE Omni Antenna for Ericsson R1900
Multi Band 5G, Wi-Fi®, Bluetooth®, and GNSS, covering 600-7125 MHz
Wall / Pole mount antenna
IP67 rated waterproof enclosure
Connector: RJ45
Dimensions: 290 x 480 x 76 mm
RoHS and Reach Compliant

Image THOR19

THOR19

Thunder Integrated Multi-Band 5G/LTE Omnidirectional Antenna for Ericsson R1900

Overview

Integrated Multi-Band 5G/LTE Omnidirectional Antenna with for Ericsson (Cradlepoint) R1900

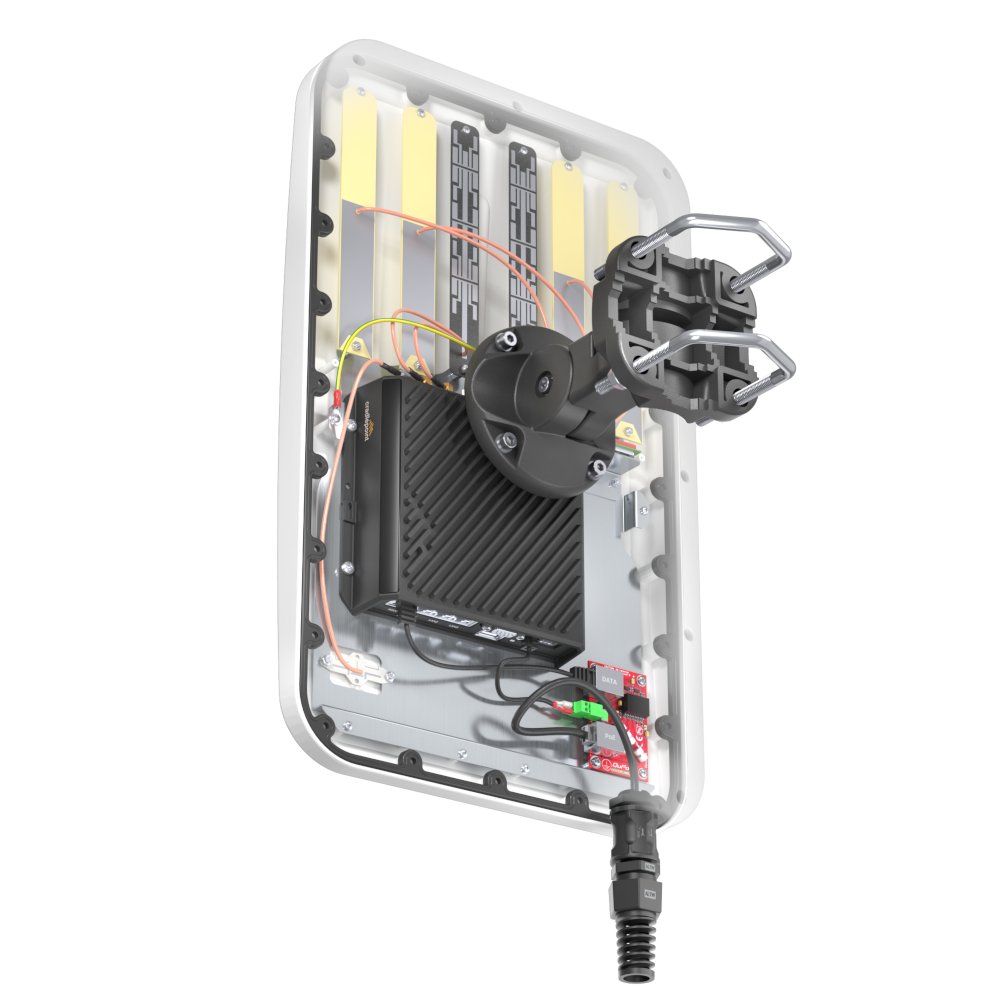

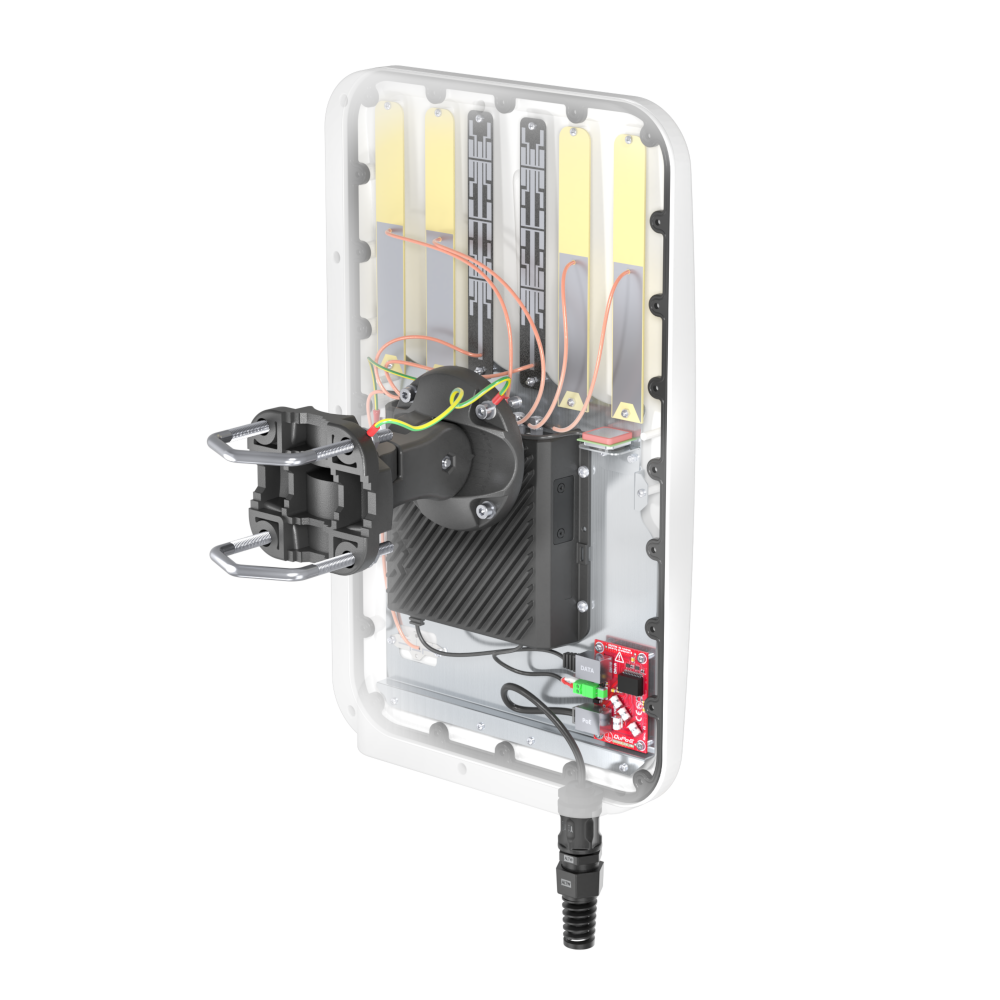

The Taoglas THOR19 all-in-one antenna for Ericsson R1900 routers is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, and RVs. It has embedded omnidirectional 5G, Wi-Fi®, Bluetooth®, and GNSS antennas. If you use Ericsson R1900 with the THOR19 Thunder Omnidirectional antenna, you get an integrated complete solution with embedded router and multi-band antennas in one enclosure.

Typical applications include:

– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR19 is a fantastic solution for 5G, Wi-Fi®, Bluetooth®, and GNSS applications.

Contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
IP Rating IP67
Impedance 50
Minimum Operating Temperature -40
Maximum Operating Temperature 75
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type RJ45
Length (mm) 290
Width (mm) 480
Height (mm) 76
Cable Type n/a
Connector Body Style Straight
Polarity RHCP, Vertical
Frequency Range 600MHz - 7125MHz
Connector Polarity Normal
VSWR <2
Weight (g) 1800
RoHS Yes
Gain (Max) 7.5
