Integrated Multi-Band 5G/LTE Omni Antenna for Ericsson S400
Multi-band 5G, Wi-Fi®, and GNSS, covering 600-7125 MHz
1* GNSS, 1* Wi-Fi®, & 2* 5G/LTE Antennas
Wall / Pole mount antenna
IP67 rated waterproof enclosure
Connector: RJ45
Dimensions: 160 x 160 x 240 mm
RoHS and Reach Compliant
Integrated Multi-Band 5G/LTE Omnidirectional Antenna for Ericsson S400

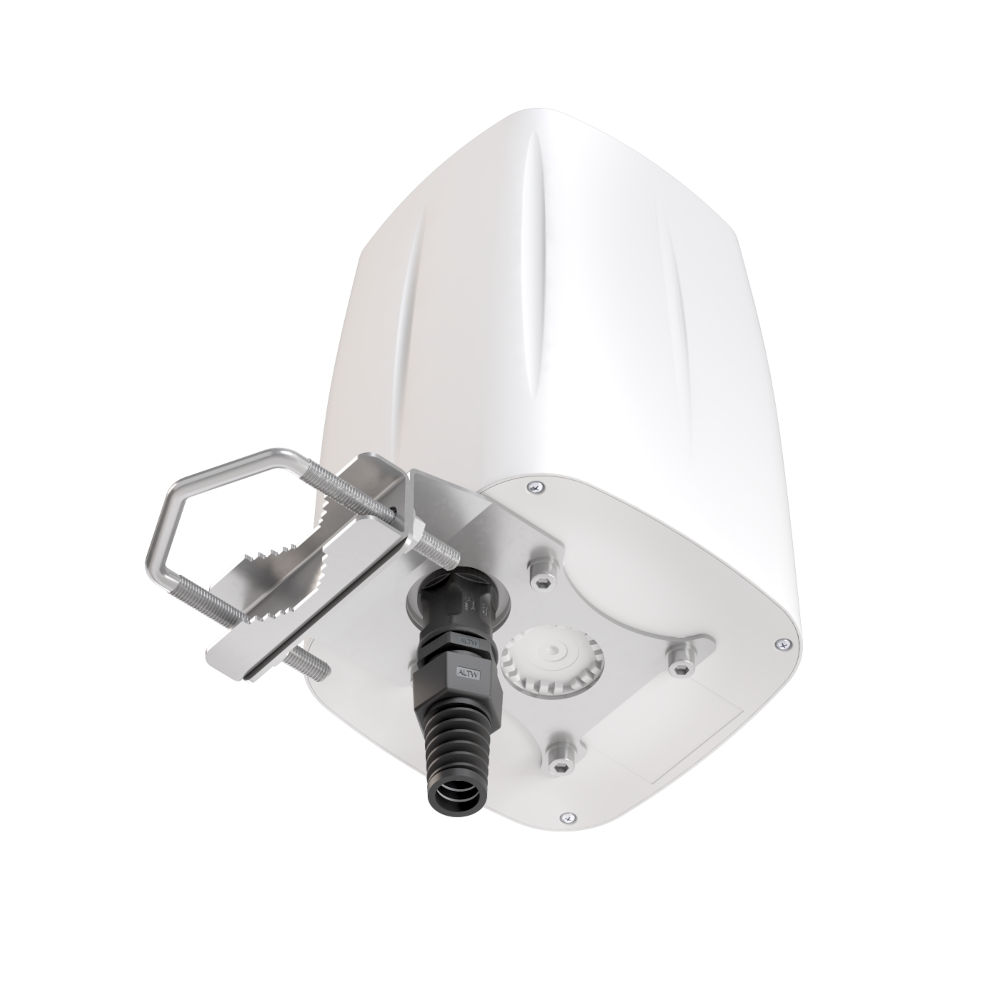

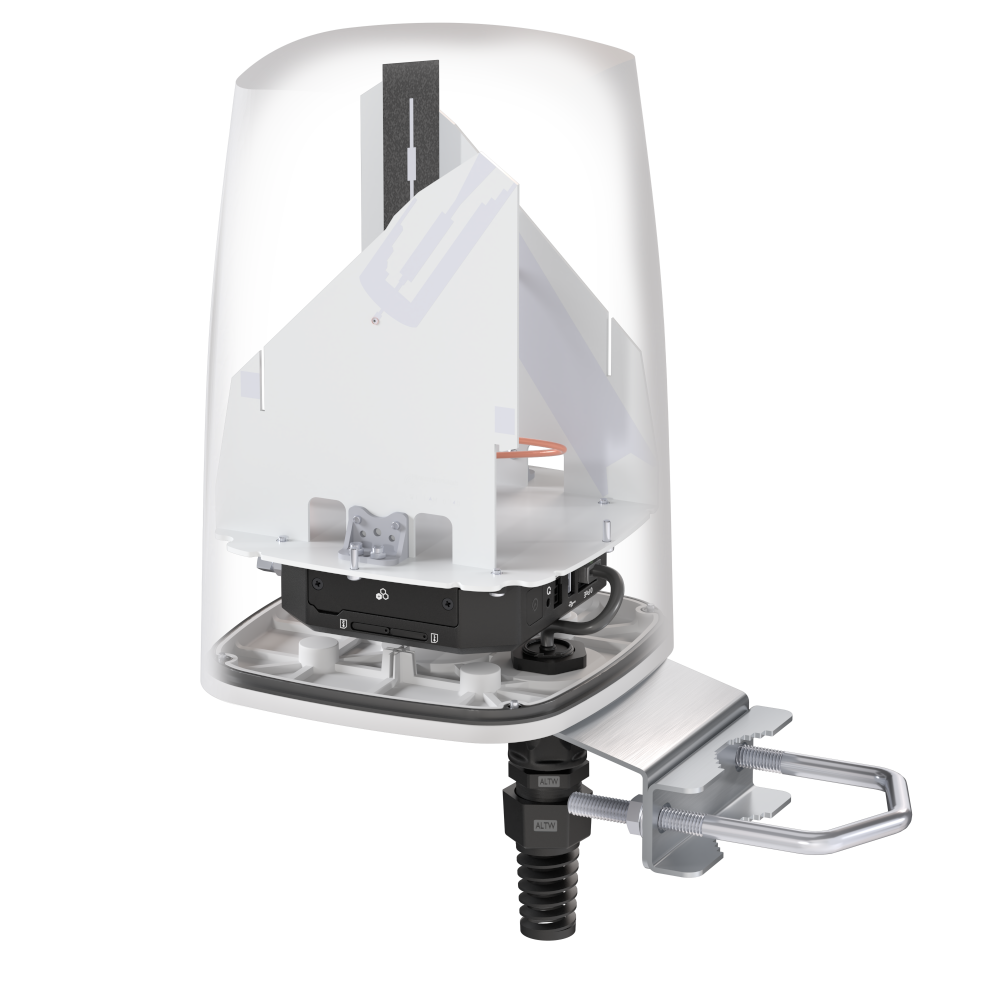

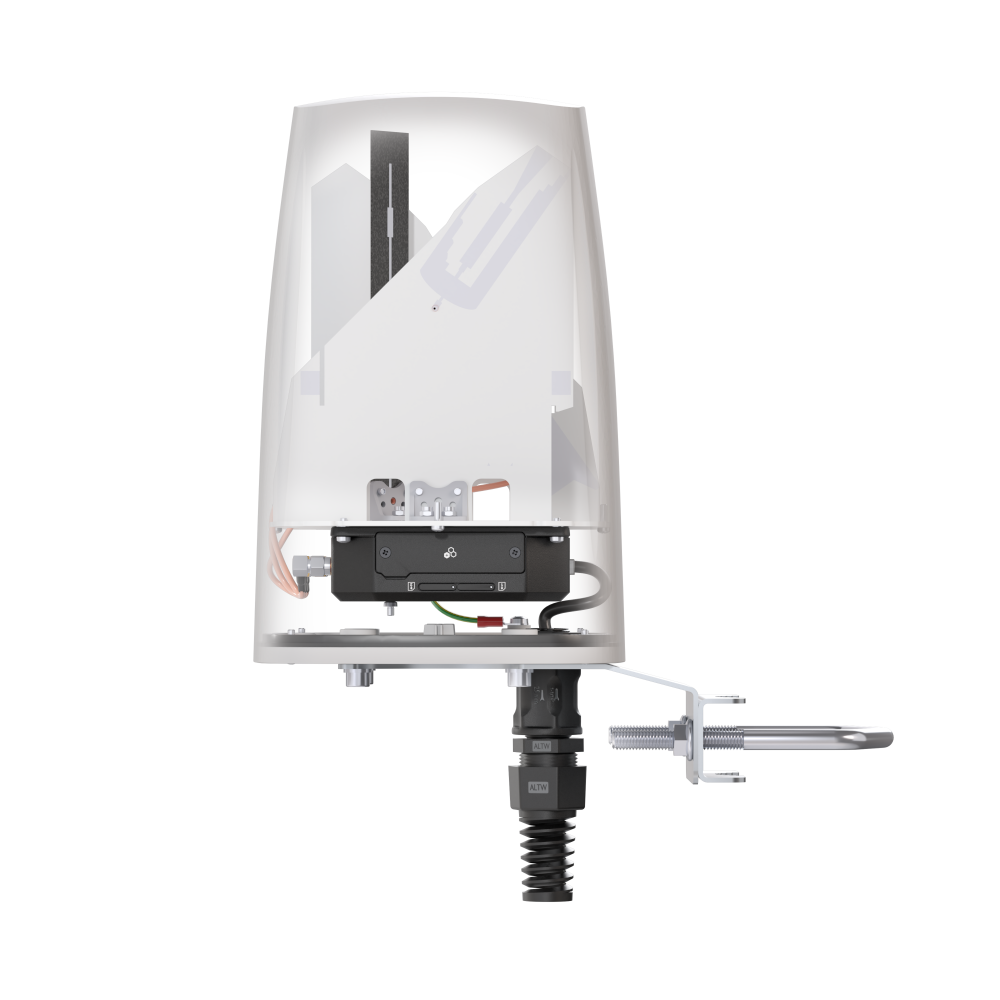

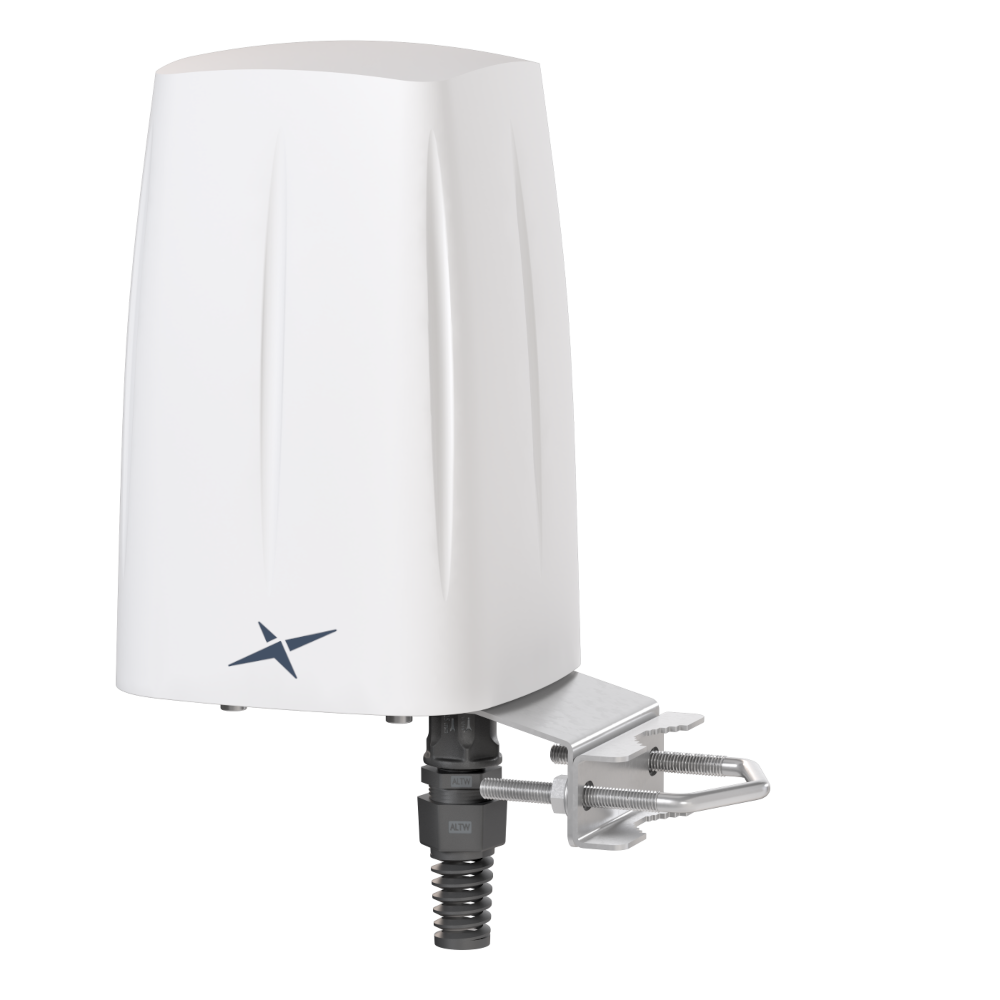

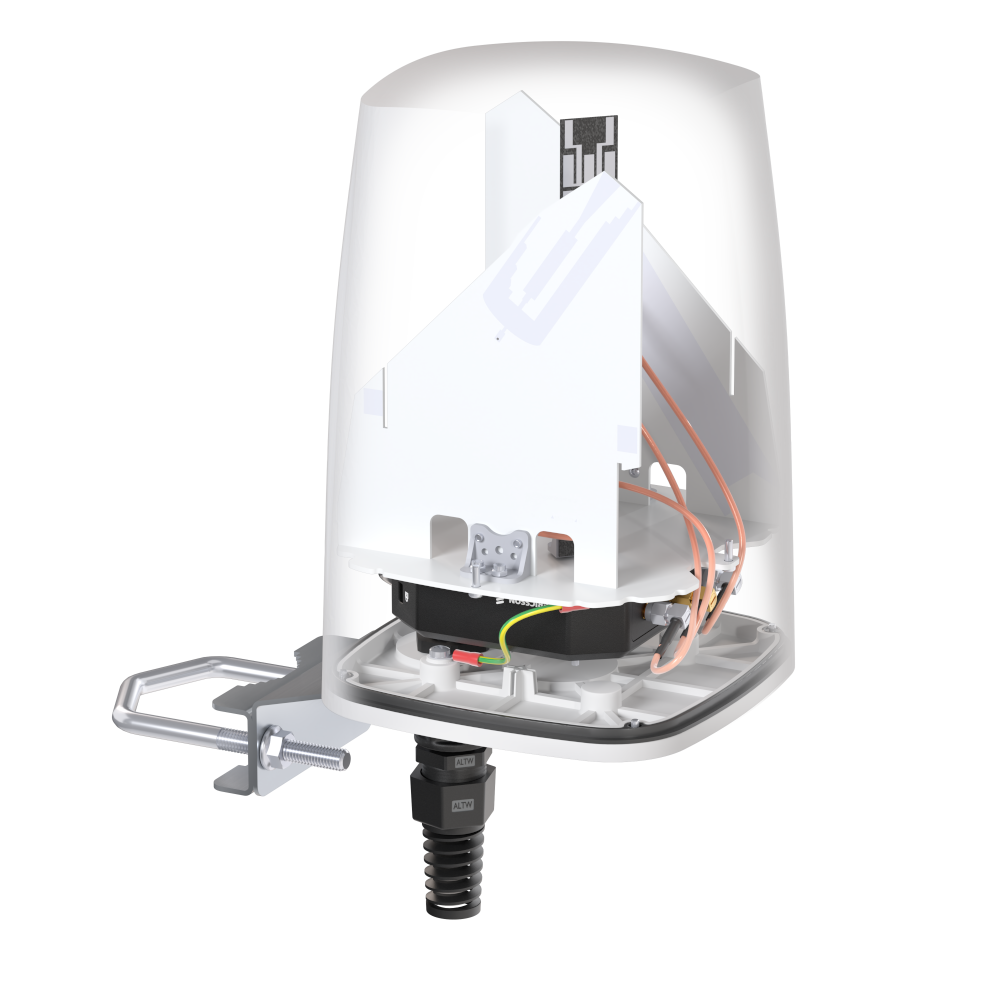

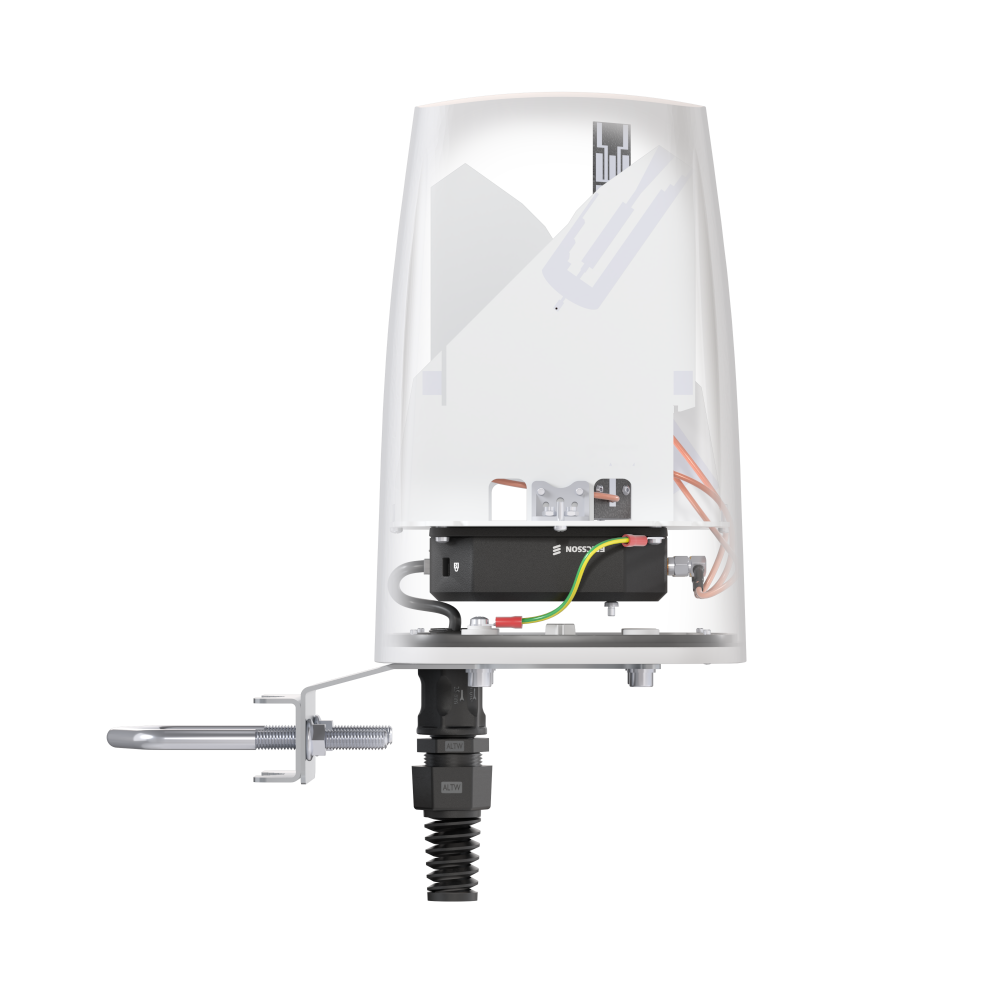

The Taoglas THOR40 is an outdoor antenna for Ericsson (Cradlepoint) S400 routers is designed to provide reliable wireless connectivity in a variety of environments. This product is an all-in-one solution that integrates a high gain omnidirectional 5G, Wi-Fi®, and antennas with Ericsson (Cradlepoint) S400 into a single IP67 enclosure. Such integration allows implementation of new outdoor 5G solutions. The THOR40 Thunder Integrated Omnidirectional antenna for Ericsson (Cradlepoint) S400 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats, and camping but also city centers with high signal density.
Typical applications include:
– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR40 is a fantastic solution for 5G, Wi-Fi®, and GNSS applications.
Contact your regional Taoglas customer support team for more information.
Name | Value |
---|---|
Technology | External Antennas, Combination |
IP Rating | IP67 |
Impedance | 50 |
Minimum Operating Temperature (℃) | -40 |
Maximum Operating Temperature (℃) | 75 |
Mounting Style | Wall/Pole |
Termination Style | Connector |
Antenna Connector Type | RJ45 |
Length (mm) | 160 |
Width (mm) | 160 |
Height (mm) | 240 |
Cable Type | n/a |
Connector Body Style | Straight |
Polarity | RHCP, Vertical |
Frequency Range | 600MHz - 7125MHz |
Connector Polarity | Normal |
VSWR | <2.5 |
Weight (g) | 1500 |
RoHS | Yes |
Gain (Max) | 7.5 |
