4in1 Sharkfin Antenna

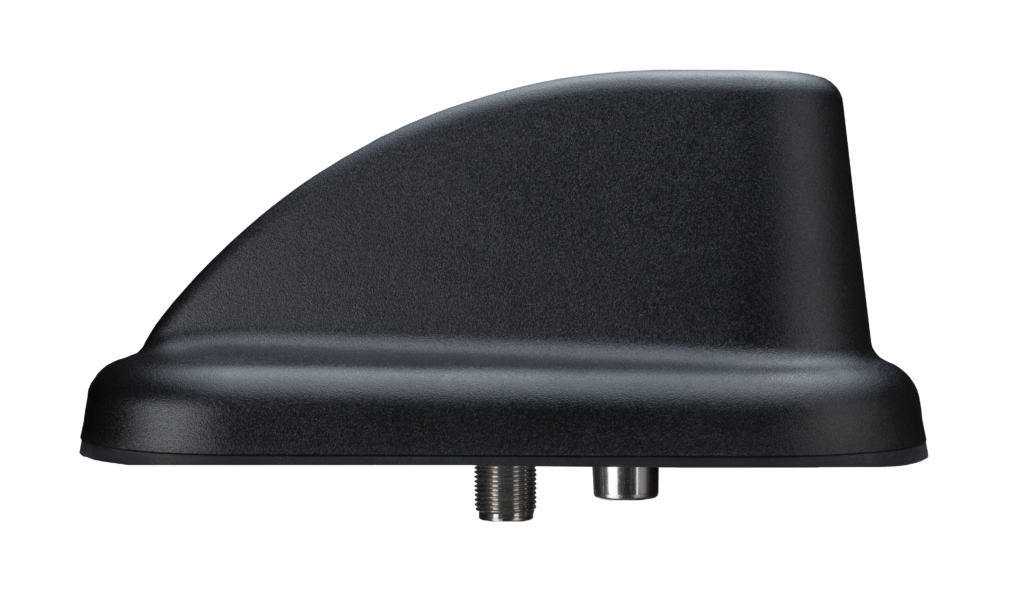

The Taoglas MA1044 Sharkfin is a next generation 4in1, vehicle roof permanent mount combination antenna solution. It is a fully IP67 rated waterproof antenna manufactured with a robust ABS/PC enclosure.
The antenna is approved for use on heavy-duty trucks and meets the strictest OEM heavy-duty truck standards. It supports multiple GNSS constellations, GPS, GLONASS, GALILEO & BeiDou), Dual Band Wi-Fi®(2.4/5.8GHz), SiriusXM, and AM/FM/WB.
The antenna is first tier TS16949 heavy-duty truck approved and is an ideal choice for OEM automotive,trucking and heavy equipment applications.
The antenna comes with low-loss RG-174 coaxial pigtail cables as standard, terminating in FAKRA SMB code C for GNSS, FAKRA SMB code A for AM/FM/WB, FAKRA SMB code K for SiriusXM, and with FAKRA SMB code I for Wi-Fi®. The SiriusXM antenna meets the latest (Gen 3) specifications. The AM/FM/WB antenna has an inbuilt amplifier to increase receive signal sensitivity.
The antenna works in conjunction with a 12v DC wire that powers the AM/FM/WB circuits. The internal antennas can be completely customized according to specific requirements, to work on other applications, such as ISM bands or C-V2X / DSRC. The antenna is manufactured in TS16949 automotive approved facilities.
Cables and connectors are customizable, contact your local Taoglas customer service team for more information or installation guidelines.
Name | Value |
---|---|
Technology | External Antennas, Combination |
IP Rating | IP65 |
Impedance | 50 |
Minimum Operating Temperature (℃) | -40 |
Maximum Operating Temperature (℃) | 85 |
Mounting Style | Screw |
Termination Style | Connector |
Antenna Connector Type | FAKRA |
Length (mm) | 184 |
Width (mm) | 82 |
Height (mm) | 80 |
Cable Type | RG-174 |
Connector Body Style | Straight |
Polarity | RHCP |
Frequency Range | 1575.42MHz - 2345MHz |
Connector Polarity | Normal |
Cable Length (mm) | 300 |
VSWR | 2 |
Weight (g) | 440 |
RoHS | Yes |
Gain (Max) | 1.05 |
