MA1045 Supercombo Vehicle Mount 5in1 Antenna 2*GPS, Cellular, AM/FM & SiriusXM

MA1045.A.ALBTX.002

Combination Vehicle Mount Antenna
2* GPS Antenna: FAKRA Code C Blue
1* LTE with fallback to 3G/2G: FAKRA Code D Bordeaux Violet
1* SiriusXM: FAKRA Code K Curry Yellow
1* AM/FM: FAKRA Code A Black
IP65 Rated Waterproof
Manufactured in TS16949 Automotive Approved Facilities
RoHS & Reach Compliant

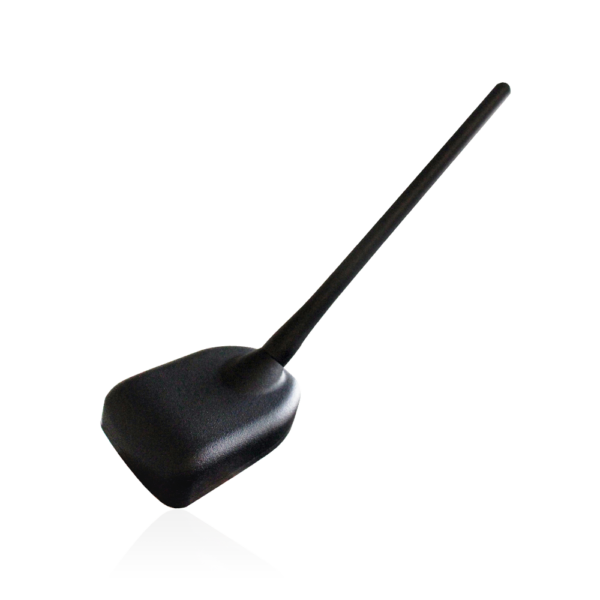

Image MA1045.A.ALBTX.002

MA1045.A.ALBTX.002

MA1045 Supercombo Vehicle Mount 5in1 Antenna 2*GPS, Cellular, AM/FM & SiriusXM

Overview

Supercombo Vehicle Mount 5in1 Antenna 2 x GPS, LTE, SiriusXM AM/FM

The MA1045 Supercombo Vehicle Mount 5in1 Antenna is the world’s smallest next-generation 5in1, vehicle roof permanent mount solution. Fully IP67 waterproof with robust ABS+PC housing. The antenna is approved for use on heavy-duty trucks and meets the strictest OEM heavy-duty truck standards. It supports the following bands: Two GPS outputs, LTE (4G/3G/2G), SiriusXM, and AM/FM/WB.

The antenna is first tier TS16949 heavy-duty truck approved and is an ideal choice for Automotive Telematic and heavy-duty plant applications.

The antenna comes with low-loss RG-174 coaxial pigtail cables as standard, terminating in FAKRA Code C for GPS, FAKRA Code A for AM/FM/WB, FAKRA Code K for SiriusXM, and with FAKRA SMB code D for LTE. The SiriusXM antenna meets the latest (Gen 3) specifications.

The LTE antenna provides the highest efficiency on all common worldwide LTE bands and also works great if the system falls back to 3G and 2G as it also covers these cellular bands. The AM/FM/WB antenna has an in-built amplifier to increase receive signal sensitivity. The antenna works in conjunction with a 12v DC wire that powers the AM/FM/WB circuits. The antenna is manufactured in TS16949 automotive approved facilities.

Contact your regional Taoglas customer service team for more information or installation guidelines.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type FAKRA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42 - 2345MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 1.05
Length (mm) 165.45
Width (mm) 96.61
Height (mm) 61.45
Weight (g) 230
