3-in-1 Headliner Adhesive CAMPTENNA™ Antenna
ASA+PC Housing with AM/FM Metalized Film Antenna
GNSS: FAKRA Code C Blue Connector
Wi-Fi®: FAKRA Code I Beige Connector
AM/FM/WB: FAKRA Code A Black Connector
IP21 Waterproof Rated
Manufactured in TS16949 Automotive Approved Facilities
RoHS & Reach Compliant

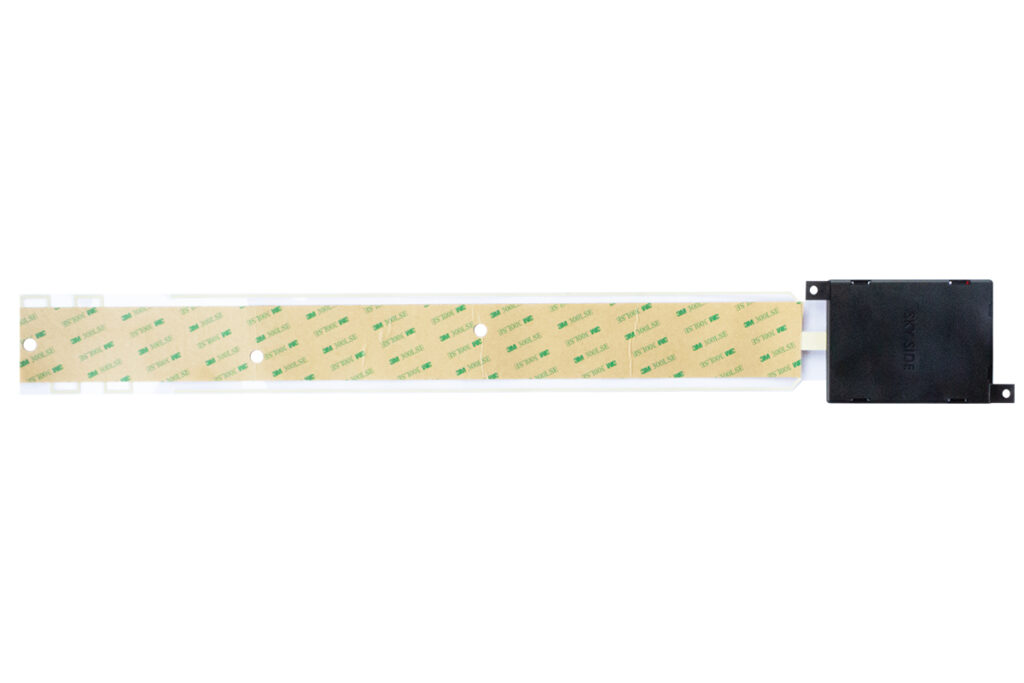

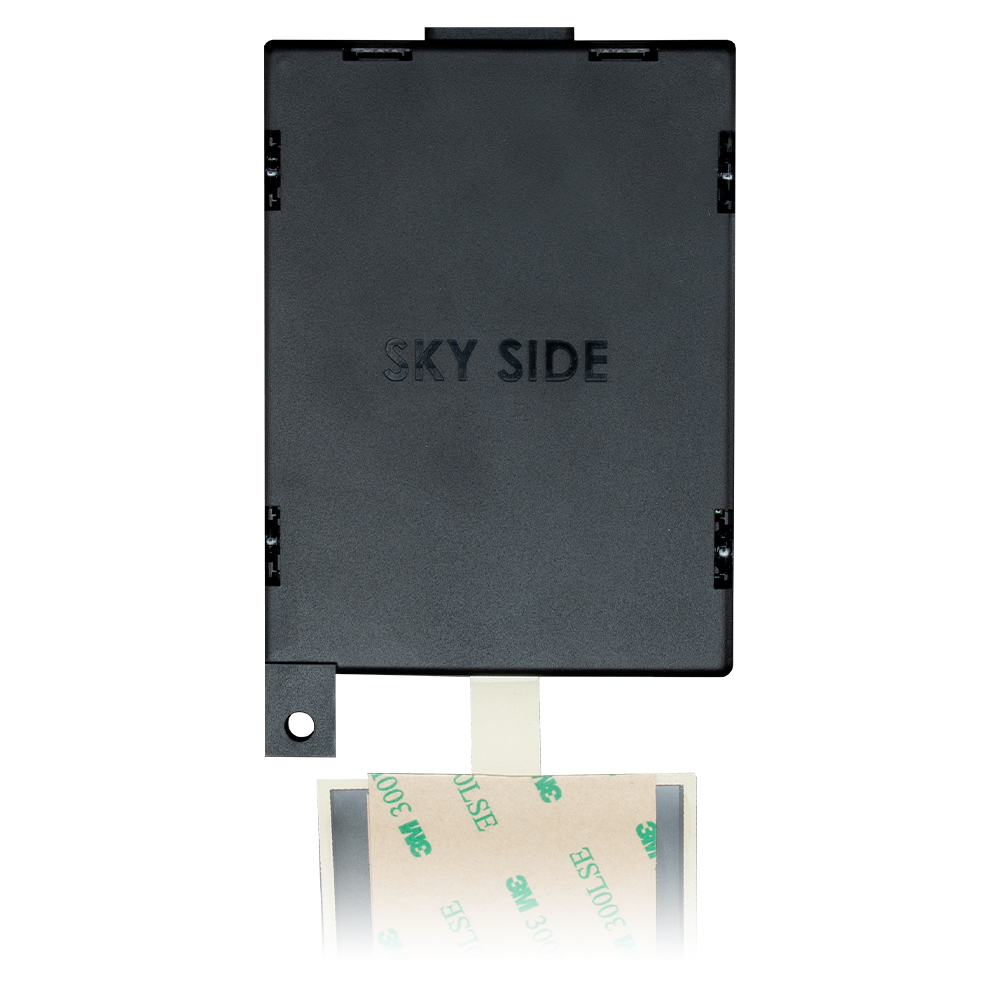

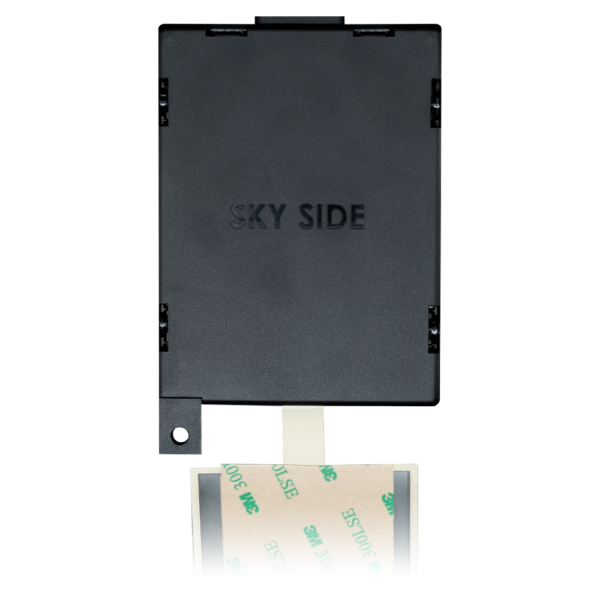

MA2330 CAMPTENNA™ Covert GPS, Wi-Fi® & AM/FM 3-in-1 Headliner Adhesive Antenna
MA2330.A.ACT.002
MA2330.A.ACT.002
MA2330 CAMPTENNA™ Covert GPS, Wi-Fi® & AM/FM 3-in-1 Headliner Adhesive Antenna
Overview
3-in-1 Headliner Adhesive Antenna
GNSS, Wi-Fi® & AM/FM
The MA2330 CAMPTENNA™ 3in1 Headliner adhesive antenna is a next-generation 3in1, embedded solution for vehicles. It’s made with robust ABS+PC housing. The antenna is approved for use on heavy-duty trucks and meets the strictest OEM heavy-duty truck standards. It supports the following bands: GNSS (GPS/GLONASS/GALILEO/BeiDou), Wi-Fi® (2.4/5.8GHz), and AM/FM/WB.
The antenna is first tier TS16949 heavy-duty truck approved and is an ideal choice for Automotive Telematic and heavy-duty plant applications.
The antenna comes with low-loss RG-174 coaxial pigtail cables as standard, terminating in FAKRA SMB code C for GNSS, FAKRA SMB code A for AM/FM/WB, and with FAKRA SMB code I for Wi-Fi®. The AM/FM/WB antenna is passive and utilizes a long metalized film to increase receive signal sensitivity. The antenna is manufactured in TS16949 automotive approved facilities.
Contact your local Taoglas customer service team for more information or installation guidelines.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP21 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | FAKRA |
| Length (mm) | 664.33 |
| Width (mm) | 83.99 |
| Height (mm) | 14.86 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 1575.42MHz - 2500MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2:1 |
| Weight (g) | 145 |
| RoHS | Yes |
| Gain (Max) | 5 |
