MA275 Adhesive Mount 5-in-1 GNSS 2*LTE MIMO 2*Wi-Fi MIMO


Adhesive Mount Combination Antenna
2*LTE: 3m CFD-200, SMA(M) Connector
2*Wi-Fi: 3m CFD-200, RP-SMA(M) Connector
1*Active GNSS: 3m RG-174, SMA(M) Connector
IP67 Rated Enclosure
Dims: 205.1*68*12.5 mm
Custom Cables and Connectors Available
RoHS & Reach Compliant

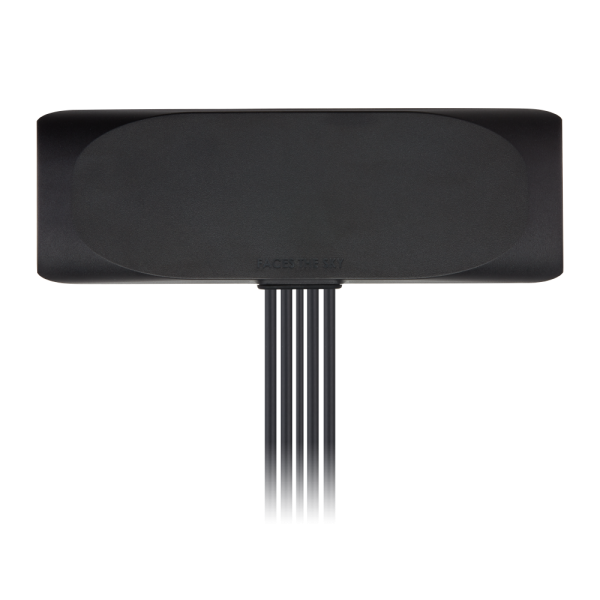

Image MA275.LBICG.002


MA275 Adhesive Mount 5-in-1 GNSS 2*LTE MIMO 2*Wi-Fi MIMO


5 in 1 GNSS 2*LTE MIMO 2*Wi-Fi MIMO

The Taoglas MA275 5in1 antenna is a combination of LTE, Wi-Fi and GNSS, IP67 waterproof external M2M antenna for use in telematics, transportation, and remote monitoring applications.

This unique antenna delivers powerful MIMO antenna technology for cellular LTE, Wi-Fi dual-band 2.4/5 GHz as well as GPS-GLONASS for next generation multiple wireless technology systems, such as vehicle telematics.

Potential uses are new fleet management and applications that demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. The GNSS antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.

Cable length and connector types are customizable. Contact your regional Taoglas sales office for support

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type RP-SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 698 - 5850MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) -5.22
Length (mm) 205.1
Width (mm) 68
Height (mm) 12.5
Weight (g) 650
