Steedan MA350 – Low Profile, 5-in-1 Magnetic Mount Combination Antenna with Active GNSS, 2*5G/4G MIMO and 2*Wi-Fi 6 MIMO

MA350.A.LBICG.003

2* 5G/4G MIMO – 600-6000MHz
2* Wi-Fi 6 MIMO – 2.4GHz/5.8-7.125GHz
1* GPS-GLONASS-GALILEO-BeiDou
IP65 Rated, Ruggedized PC/ABS Magnetic Mount Enclosure
LTE: 3m TGC-200 Cable with SMA(M)ST Connector
Wi-Fi: 3m TGC-200 Cable with RP SMA(M)ST Connector
GNSS: 3m RG-174 Cable with SMA(M)ST Connector
Dimensions: 247 * 144.3 * 52.8 mm
RoHS and REACH Compliant

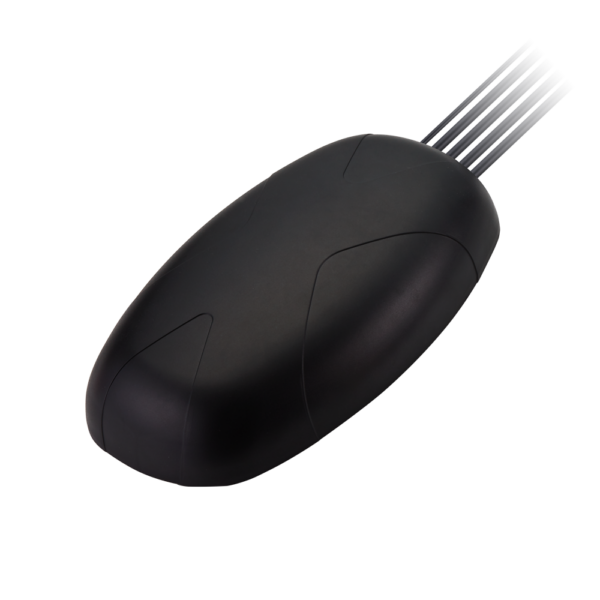

Image MA350.A.LBICG.003

MA350.A.LBICG.003

Steedan MA350 – Low Profile, 5-in-1 Magnetic Mount Combination Antenna with Active GNSS, 2*5G/4G MIMO and 2*Wi-Fi 6 MIMO

Overview

5-in-1 Magnetic Mount Antenna with GNSS, 2*5G/4G MIMO and 2*Wi-Fi 6

The Taoglas Steedan MA350 is a 5-in-1 next-generation low profile magnetic mount antenna for a vehicle, outdoor building, and heavy equipment roof applications. It has a fully IP65 rated waterproof robust ABS enclosure and base. This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel is not feasible. It can be mounted on steel surfaces and its ultra-strong neodymium magnets. A soft foam cushion on the base protects the mounting surface during installation and removal. Only 48mm high it mounts discretely to the target application out of sight of most onlookers.

This outstanding antenna delivers powerful MIMO antenna technology 5G/4G and Wi-Fi 6 2.4/5.8/7.125GHz and a custom-tuned GPS/GLONASS/BeiDou patch antenna for GNSS location services. The 5 internal antennas have superior isolation. The 5G/4G antennas also include backward compatibility to work at most worldwide 3G and 2G bands.

Typical Applications:
• Next Generation OEM Automotive Connectivity
• Multimedia, Navigation, and Telematics Systems
• V2V, V2X and Fleet Management Applications
• First Net Responder Routers

The MA350 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

The MA350 can also be customized for your particular wireless application and frequency band, subject to NRE and MOQ. There are 5x 3000mm low loss TGC-200 cables, terminating in SMA(M) connectors for LTE MIMO, and RP SMA(M) for Wi-Fi MIMO. There is a 3000mm RG-174 cable for GNSS terminating in an SMA(M) connector. All cable lengths and connector types are customizable, for further information contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 5
Length (mm) 247
Width (mm) 144.3
Height (mm) 52.8
Weight (g) 886
