MA961 Guardian 4in1 2*LTE MIMO and 2*Wi-Fi MIMO Wall Mount Antenna

MA961.A.BICG.002.wm

Guardian 4in1 Wall Mount Antenna
2*LTE MIMO and 2*Wi-Fi MIMO
Low-profile Housing
Mount on Wall or Glass
2* LTE MIMO 698-960MHz / 1710-2170MHz / 2490-2690MHz / 3300-3600MHz
2* Dual Band Wi-Fi MIMO
2400MHz to 2500MHz / 4900MHz to 5850MHz
Worldwide 4G Bands including fallback to 3G and 2G
IP67 Waterproof Enclosure
Dims: 146*134*20mm
Cables: 3M Low Loss KSR200-P and RG174
Connectors: SMA(M)/RP-SMA(M)
Cables and Connectors Customizable
RoHS Compliant

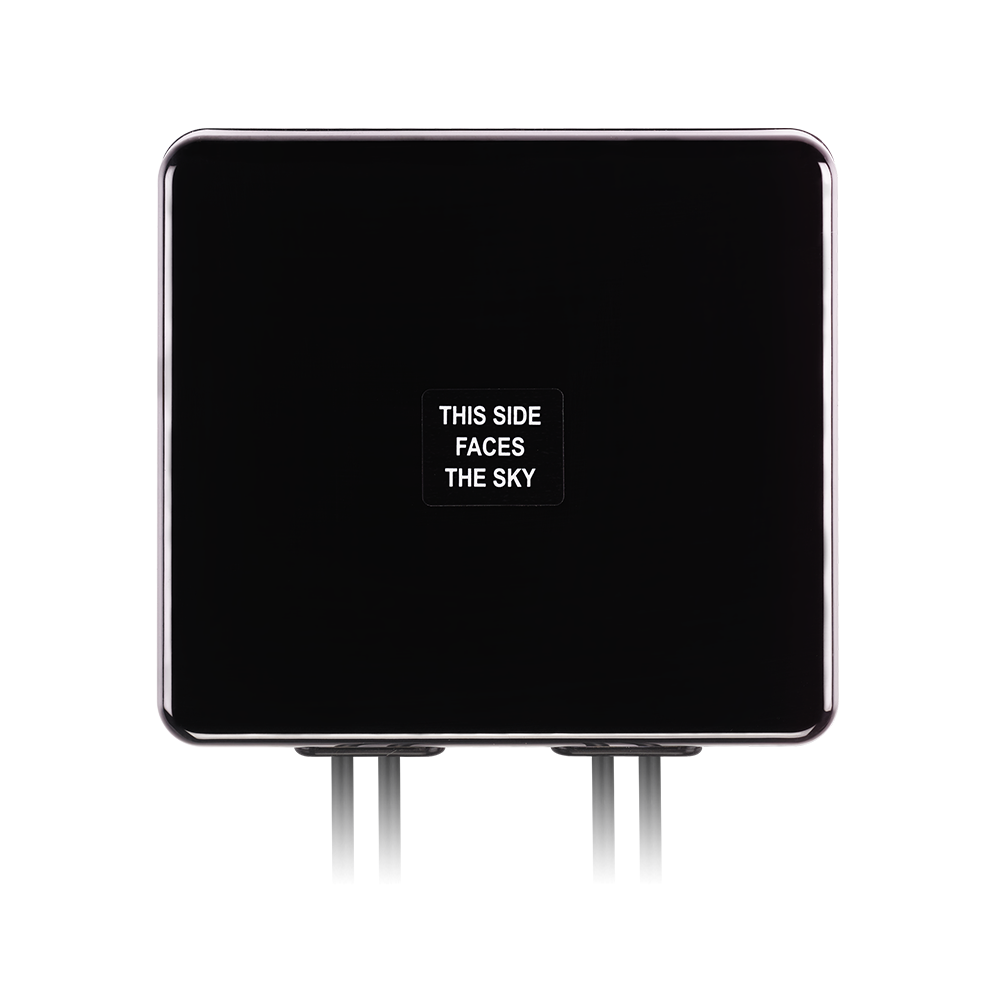

Image MA961.A.BICG.002.wm

MA961.A.BICG.002.wm

MA961 Guardian 4in1 2*LTE MIMO and 2*Wi-Fi MIMO Wall Mount Antenna

Datasheet
Overview

Wall Mount Antenna for IoT Gateway and Router Devices

The MA961 Guardian is a wall mount antenna for IoT gateway and router devices. This next generation combination antenna is the first-panel antenna worldwide designed for this application. It is a low profile 4in1 wall mount antenna. This unique product delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/1800MHz/ 2600MHz/3500MHz and dual-band Wi-Fi. It is a heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in IoT Gateway and Routers, HD Video Streaming, Transportation and Remote Monitoring Applications.

This antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 698-960MHz/1710-2170MHz/2490-2690MHz/3300-3600MHz bands and dual 2.4/5.8GHz Wi-Fi. It enables designers to cover a wide range of technologies by installing a single antenna.

4G wireless applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation among these antennas to prevent self-interference. Low loss cables used to keep efficiency high over long cable lengths.

The housing is made of durable ASA, is IP67 waterproof and comes with 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle or building. The MA961 comes with 3 meters CFD-200 cable as standard. Customized cables and connector versions are also available.

Contact your regional support office for more information.

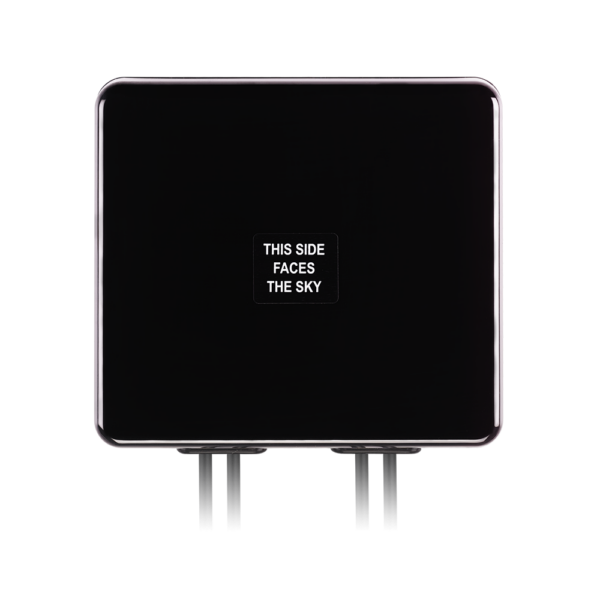

Image MA961.A.BICG.002.wm
