MA9909 GuardianX 3M 9in1 1*Active GNSS & 8*LTE MIMO – Wall Mount

MA9909.A.002.wm

Low-profile Housing with Wall Mount
8* LTE MIMO 698 to 960MHz/1710 to 2170MHz/ 2490 to 2690MHz/ 3300 to 3600MHz
1* GPS-GLONASS- Antenna
Worldwide 4G Bands including 3G and 2G
IP67 Waterproof Resistant Enclosure
Dimensions: 360mm * 160mm * 16.5mm
1M Low Loss TGC-200 and RG174 with SMA(M)/RP-SMA(M) connectors
Custom Cables and Connectors Available
RoHS compliant

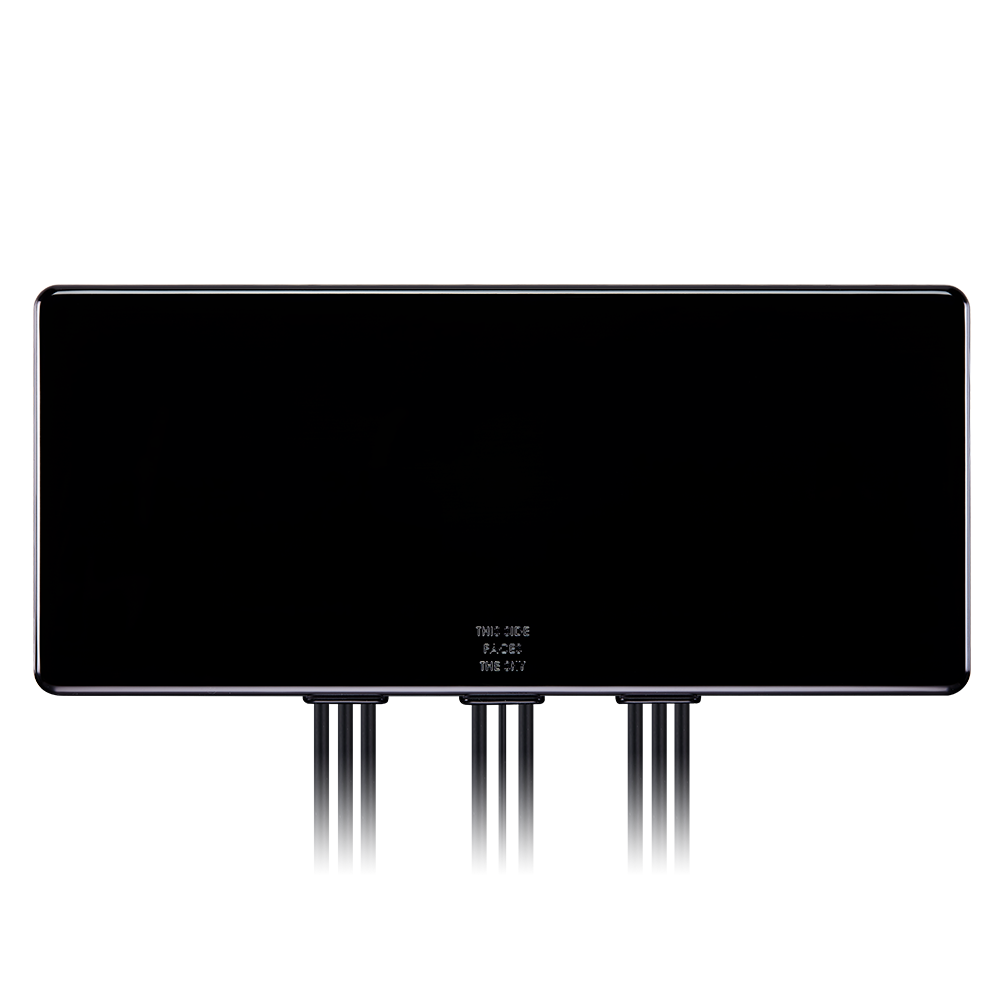

Image MA9909.A.002.wm

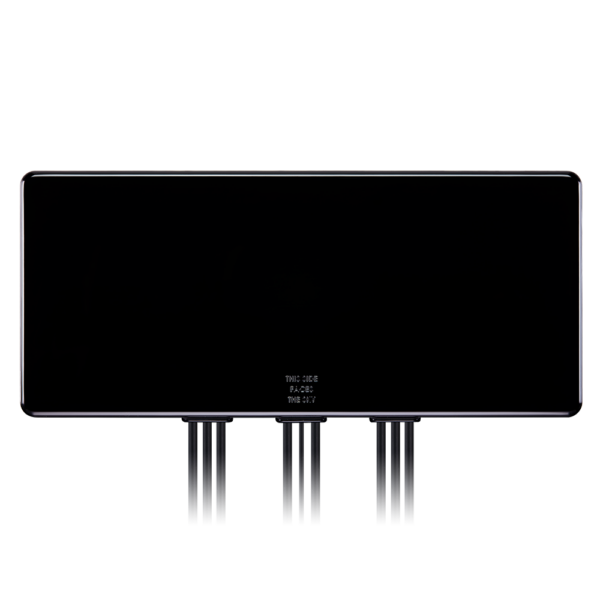

MA9909.A.002.wm

MA9909 GuardianX 3M 9in1 1*Active GNSS & 8*LTE MIMO – Wall Mount

Overview

The Taoglas Guardian X MA9909 is a low profile heavy-duty, fully IP67 waterproof antenna. It combines 9 antenna elements into one enclosure, 1 GPS/GLONASS/Galileo, 8* LTE MIMO (698 to 960MHz/1710 to 2170MHz/ 2490 to 2690MHz/ 3300 to 3600MHz. This unique product delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/1800MHz/2600MHz and GNSS. This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel for an external antenna is not feasible.

Typical applications include:
  • Passenger Bus / Rail / Air Applications.
  • Automotive and Heavy Equipment Vehicle Tracking and Telematics
  • Remote Asset and Pipeline Monitoring
  • HD Video over LTE
  • First Responder and Emergency Services
  • M2M Applications/IoT

LTE 4G applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much-reduced efficiency and isolation, which would lead to a large drop in system throughput, increased number of drops, and may indeed not make a system connection at all.

Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP, Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.49
Length (mm) 360
Width (mm) 160
Height (mm) 16.5
Weight (g) 1300
