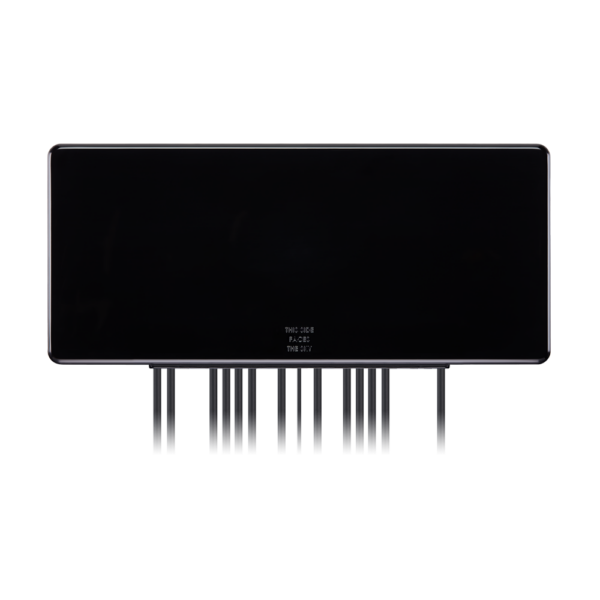

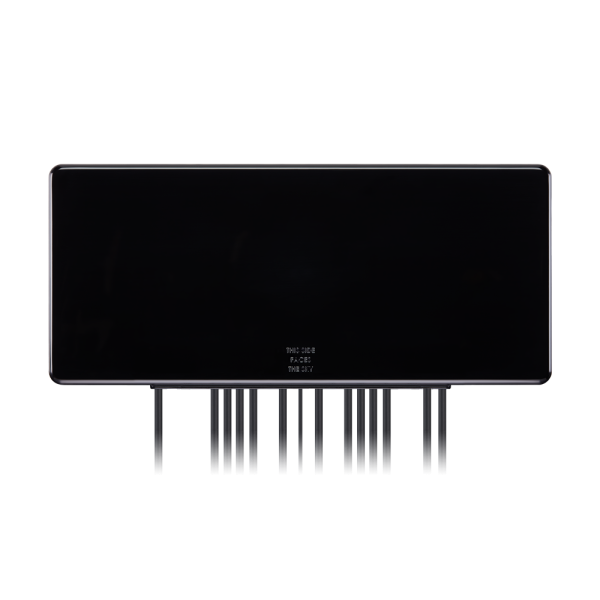

MA9914 – GuardianX 14-in-1 Adhesive Mount Combination Antenna with GNSS, 8*5G/4G Cellular MIMO and 5* Wi-Fi 6 MIMO


14-in-1 Combination Antenna
1* GNSS – Active GPS-GLONASS-Galileo
8* 5G/4G MIMO (600-6000MHz)
5* Wi-Fi 6 MIMO (2.4/5.8/7.125GHz)
Low-profile IP67 Rated Housing
Cables: GNSS with 3m RG-174 | 5G/4G and Wi-Fi with 3m TGC-200
Connectors: FAKRA
Dimensions (without bracket): 360 x 160 x 20.5mm
RoHS and Reach Compliant

Image MA9914.A.002


MA9914 – GuardianX 14-in-1 Adhesive Mount Combination Antenna with GNSS, 8*5G/4G Cellular MIMO and 5* Wi-Fi 6 MIMO


14-in-1 Combination Antenna

The Taoglas Guardian X MA9914 has been designed to combine a high number of antenna combinations in one low-profile enclosure. The MA9914 is a 14-in-1 combination antenna that combines all 14 antenna elements in one small heavy-duty, IP67 rated waterproof, adhesive mount enclosure. The MA9914 comes with 1* Active GPS/GLONASS/Galileo, 8* 5G/4G Cellular MIMO (600-6000MHz), and 5* Wi-Fi 6 MIMO (2.4/5.1-7.125GHz). The MA9914 has been designed as a low-profile solution for IoT and Automotive applications where space is at a premium.

This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel for an external antenna is not feasible. The MA9914 also operates at Band 71, the newly established 5G band at 600MHz.

Typical applications include:
– Passenger Bus / Rail / Air Applications.
– Automotive and Heavy Equipment Vehicle Tracking and Telematics
– HD Video over 5G/4G
– First Responder and Emergency Services
– M2M Applications/IoT

5G/4G applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to ensure high isolation between the MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over longer cable lengths. In contrast, smaller MIMO antennas with poorer quality thin cables will have reduced efficiency and isolation, which would lead to a large drop in system throughput, increased incidences of signal drops, and may indeed not make a system connection at all.

The MA9914 is supplied with FAKRA connectors as standard. Cable type and length, and connector types are fully customizable. Contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type FAKRA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 5.24
Length (mm) 360
Width (mm) 160
Height (mm) 20.5
Weight (g) 1120
