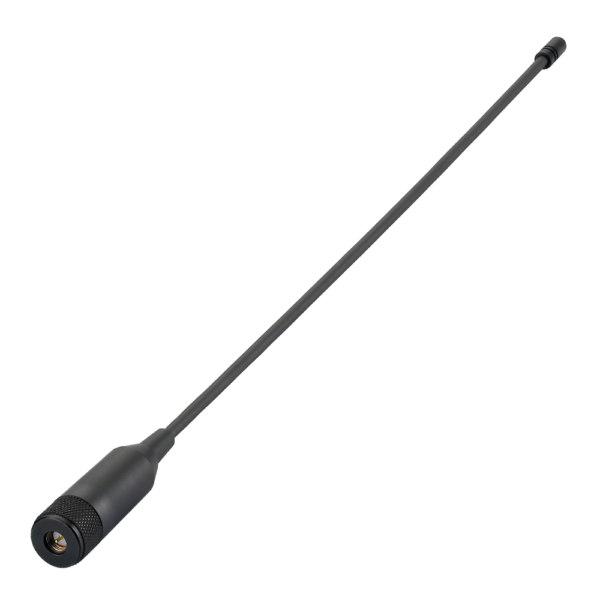

Meteor 135MHz Flexible Whip Monopole Antenna
Peak Gain 0dBi (on 30*30cm Ground Plane)*
Efficiency 40%*
Flexible Inner Steel Core Whip
Robust Structure
IP65 Rated Enclosure
SMA(M) Straight Plug
Dims: L=353mm Ø16.05mm
Meteor FW.81 135MHz Flexible Whip, SMA(M)
FW.81.SMA.M
FW.81.SMA.M
Meteor FW.81 135MHz Flexible Whip, SMA(M)
Overview
Meteor 135MHz 0dBi Flexible Whip Monopole Omnidirectional Antenna
The Meteor FW.81 is a 0dBi 135MHz ISM band 1/4 wavelength monopole flexible whip antenna with omnidirectional pattern optimized in the azimuth for wide coverage range in typical 135MHz applications such as Wireless M-Bus metering. It is also used in remote asset monitoring applications, alarms, paging systems, and private mobile radio services. The Meteor has an IP65 housing. This antenna like all low-frequency monopole antennas needs to be mounted to a metal plate to radiate. For a waterproof integration to a metal box a waterproof panel-mount SMA connector or cable assembly can be provided. TNC and N-type antenna versions are also available. This whip is made up of a flexible inner steel core covered by TPU so extremely resistant to collisions and maintaining its original shape and RF performance. Customized frequency and gain versions can be supplied.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 80 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 16 |
| Width (mm) | 16 |
| Height (mm) | 353 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 135MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | <2:1 |
| Weight (g) | 38 |
| RoHS | Yes |
| Gain (Max) | 2.8 |
