Meteor FW.90 4G/3G/2G Cellular Flexible Whip, SMA(M)


4G/3G/2G LTE/Cellular/CDMA Flexible Whip Monopole Antenna
Peak Gain on all Bands -2.75~5.09dBi (on 30*30cm Ground Plane)
Wide-band High Efficiency 25~72%
Flexible Inner Steel Core Whip
Robust Structure
IP65 Rated Enclosure
SMA(M) Straight Plug
Dims: L: 250mm, Ø: 16.05mm
Designed to be used with Taoglas L Shaped Bracket

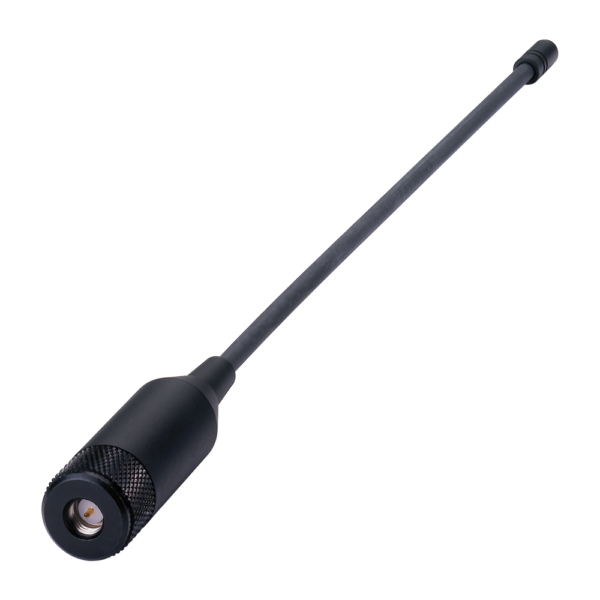

Image FW.90.SMA.M


Meteor FW.90 4G/3G/2G Cellular Flexible Whip, SMA(M)

Meteor FW.90 Flexible Whip Monopole Antenna

The FW.90 is a flexible cellular whip antenna with IP65 housing. It has a wide response and high peak gain. Ideal for outdoor environments which require high gain, on both lower and upper bands. Its unique characteristic is it has stable above 2dBi peak gain on all five common 2G/3G GSM/CDMA cellular bands used worldwide (when attached to a 30cm x 30cm metal plate). The antenna radiates best attached to a metal plate but it can still perform without.

TNC and N-Type Connector antenna versions are also available.

The FW.90 can be used with a wall mounting bracket, and we have designed an L-shaped bracket for that use, the Cyclops WM.90.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 700-4000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Carton
IP Rating IP65
RoHS Yes
Gain (Max) 1
Length (mm) 16
Width (mm) 16
Height (mm) 250
Weight (g) 420
