Meteor FW.95 915MHz 2.7dBi Flexible Whip, SMA(M)

FW.95.B.SMA.M

Meteor 915MHz Flexible Whip Monopole Antenna
Peak Gain 2.71dBi (on 30*30cm Ground Plane)
Efficiency >60% (on 30*30cm Ground Plane)
Flexible Inner Steel Core Whip
Completely IP65, Robust Structure, Aesthetic
SMA(M) Straight Plug
Dims: L=226mm Ø16mm

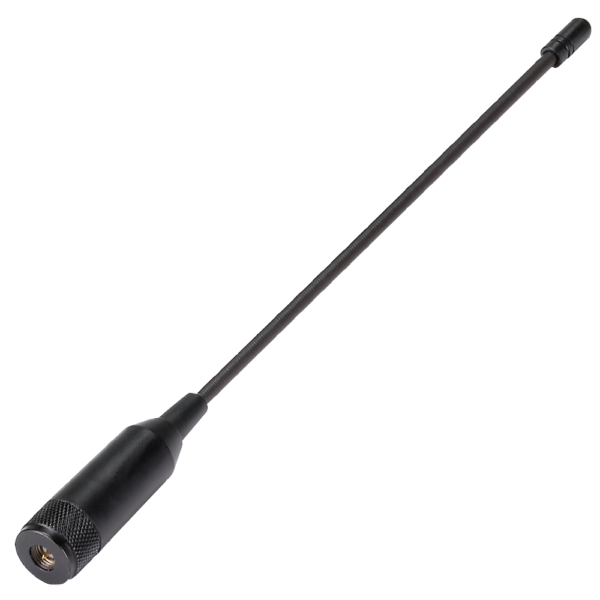

Image FW.95.B.SMA.M

FW.95.B.SMA.M

Meteor FW.95 915MHz 2.7dBi Flexible Whip, SMA(M)

Overview
Flexible 915MHz Whip Antenna

The FW.95 is a flexible 915MHz whip antenna with a SMA type (M) connector for outdoor use. It features excellent efficiency (>60%) and high peak gain (>2.71 dBi) at 915MHz on a 30×30 cm ground plane. The antenna was developed for monitoring systems, such as weather monitoring, motion/vibration sensors, and pollutants monitoring. The FW.95 has an excellent omni-directional radiation pattern, ensuring wide coverage. The antennas high efficiency means that it allows your radio to consume less power than with a lower efficiency antenna when transferring data. It also means a better signal strength and better sensitivity in areas of low signal levels.

The antenna performs at its best while attached to a ground plane with dimensions of at least 30×30 cm. For an environment where there is no ground-plane available we recommend to use the terminal mount antenna the TI.19 or the outdoor fiberglass omni antenna the OMB.915. The FW.95 whip is made of a flexible inner steel core covered by PE so it is extremely resistant to abrasion and maintains its original shape and RF performance even aftershock. This rugged design and IP65 rating on the housing ensure high reliability. This antenna comes with SMA(M) connector as standard. Other custom variants can be provided subject to NRE and MOQ. Contact your regional Taoglas office for details.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Connector
Termination Style Connector
Antenna Connector Type SMA
Cable Type None
Connector Body Style Straight
Polarity Linear
Frequency Range 902-928MHz
Connector Polarity Normal
Cable Length (mm) 75
Packaging Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain 1
Length (mm) 16
Width (mm) 16
Height (mm) 226
Weight (g) 38
