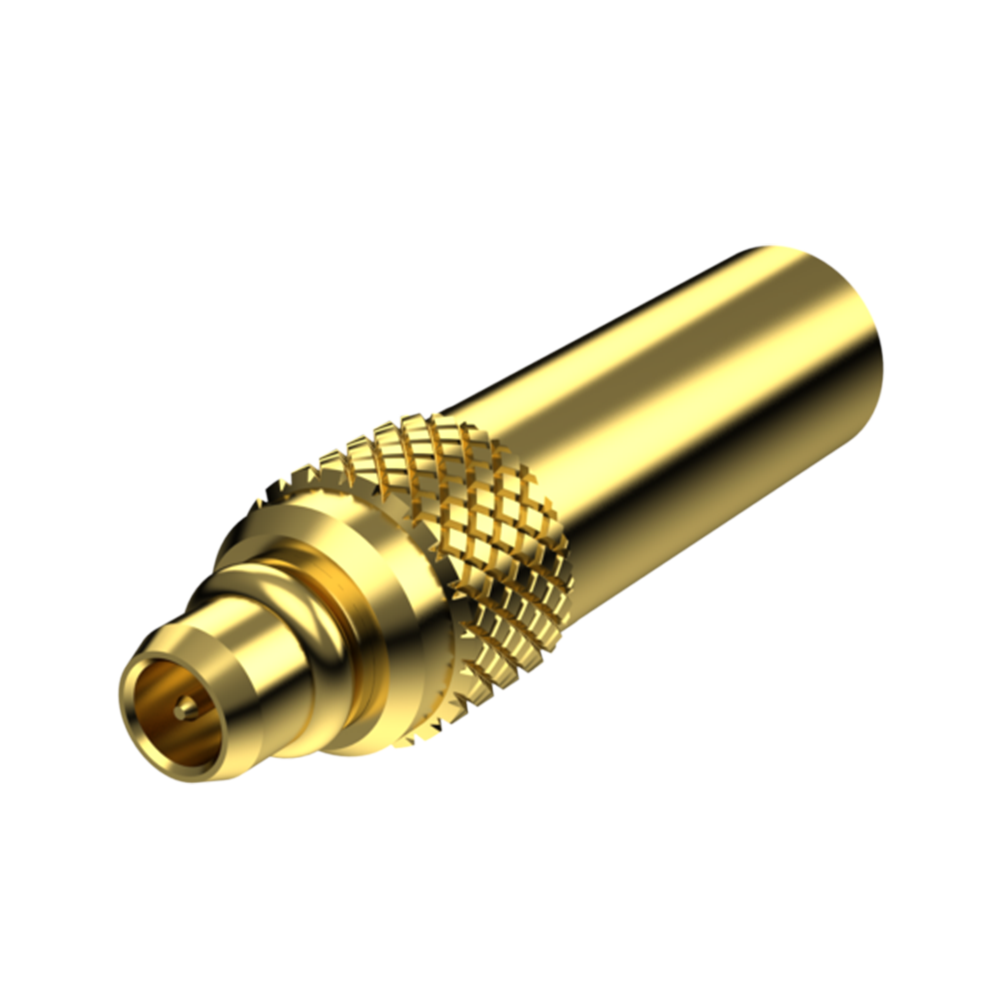

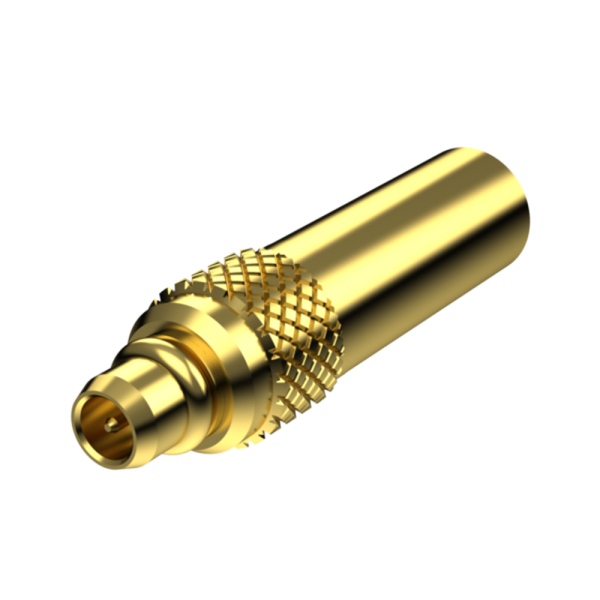

MMCX Male Straight
Gold Plated
RG-174/316
RoHS and REACH Compliant
MMCXMST.DK.J – MMCX(M)ST for RG174/RG316 Gold Plating
MMCXMST.DK.J
MMCXMST.DK.J
MMCXMST.DK.J – MMCX(M)ST for RG174/RG316 Gold Plating
Overview
Taoglas Connector Series
Taoglas is a leading provider of advanced technology for a smarter world. Our solutions include advanced components and technologies and help OEMs, enterprises, and communities to resolve the complexities of bringing digital transformation solutions to market quickly and cost effectively. Focused on best-in-class, high-performance antenna and RF design with advanced positioning, imaging, audio and artificial intelligence technologies, Taoglas understands the importance of high-performance connections.
Taoglas connectors, adaptors and receptacles are designed to provide superior performance. They are thoroughly tested and come in all mounting types including PCB, panel, and cable, providing the most flexibility for your design and we make all our 3D and 2D drawings available to help you with integration. Our portfolio of products include SMA, FAKRA, MMCX and NMO cable mount connectors for a variety of cable types and for PCB mount requirements, we have SMA, MCX and MMCX connectors.
As 5G development continues, the diversity of applications such as high-speed communications, satellite communications, military and aerospace, alongside the ever-changing demands for higher-frequency test systems are driving coaxial cable assemblies and connectors to the next level. Our series of 2.92 connectors and adaptors, which are all cross-mateable to other industry standard connectors, support DC and up to 40GHz frequencies.
For more information or for configurations not listed here, we can provide solutions based on your requirements pending an MOQ, please contact your local customer services department to discuss further.
Integration Instructions
The following Integration Instructions outline the general steps for preparing and assembling coaxial cables to antenna connectors. Following these guidelines ensures proper fit, secure connections, and reliable performance across a variety of antenna products.
Step 1:
Before beginning an installation, ensure your coaxial cable is stripped according to the recommended cable stripping guidelines. Using a precision stripping tool, remove the outer jacket, braided shielding, and dielectric layer to the specified lengths required for the connector system. Taoglas recommends that you refer to product-specific drawings or specifications for exact dimensions.
Step 2:
Once stripped, insert the prepared cable into the connector assembly, ensuring correct alignment with internal contact points. The center conductor should fit securely into the mating contact, while the braided shield engages fully with the grounding structure. Push the cable in until it is fully seated. Note that the pins need to be soldered on, and the ferrule must be crimped using a crimping tool with a 0.128 dye. A proper fit ensures stable signal transmission and effective shielding, both critical for high-frequency antenna applications.
Step 3:
After connection, visually inspect the cable and connector interface to confirm proper assembly. There should be no exposed or stray shielding strands, and the center conductor should be correctly positioned within the contact pin. The overall assembly length should match the intended design, supporting consistent electrical performance across different antenna models.
Step 4:
Once assembled, secure the connector as required by the application. For antennas used in environments subject to vibration or movement such as automotive, industrial, or wireless systems, additional strain relief may be necessary.
Technical Specification
| Name | Value |
|---|---|
| Connector Style | Straight |
| Connector Type | MMCX |
| Contact Termination | Cable Mount |
| Shield Termination | M |
| Impedance | 50 |
| Mounting Style | Cable Mount |
| Cable Group | RG-174/RG-316 |
| Frequency - Max (MHz) | 6000 |
| Number of Ports | 1 |
| Housing Color | Gold |
