Image FXR.3030.52.0075X.A.dg

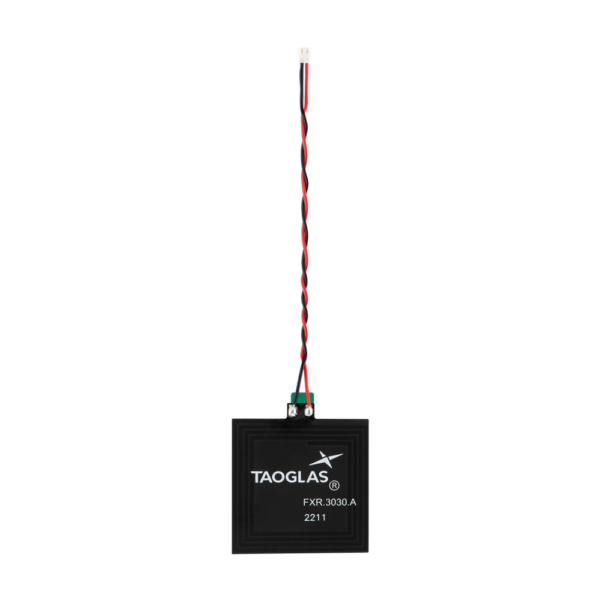

NFC Flex Antenna (30*30*0.355 mm) with 75mm Twisted Pair 28AWG Cable and ACH(F) Connector

The FXR.3030.52.0075X.A.dg from the Taoglas FXR / FXC series is an NFC (Near Field Communications) antenna designed for high-performance two-way read/write operations at 13.56MHz. The compact, flexible antenna is supplied with a ferrite flux director and adhesive backing for ease of installation inside a plastic device enclosure. The ferrite flux directors to provides isolation from the battery or other electronic components within the device. The 75mm twisted pair 28AWG cable and ACH(F) connector allows for flexible installation.

Typical NFC applications include:
    • Mobile devices
    • Wearable Smart Devices
    • Payment Terminals
    • Device tracking and ID systems
    • Air cargo tracking
    • Access Control and Electronic Keys

Customized antennas for specific applications, shape, and impedance match can also be provided for an NRE and subject to MOQ. Contact your regional Taoglas sales office for more information and support on our NFC antenna range.
