MA145 – Olympian II 3-in-1 GNSS, 5G/4G & Wi-Fi Permanent Mount Antenna

MA145.A.LBC.001

1*5G/4G Cellular Antenna
1*Dual-band Wi-Fi Antenna
1*Active GPS/Galileo and GLONASS
No Ground Plane Required
IP67 Rated Enclosure
Cables: 1m of RG-174
Connectors: GNSS and Cellular SMA(M), Wi-Fi RP-SMA(M)
Dimensions: 50mm Diameter x 48.5mm
Cables and Connectors Customizable
RoHS & REACH Compliant

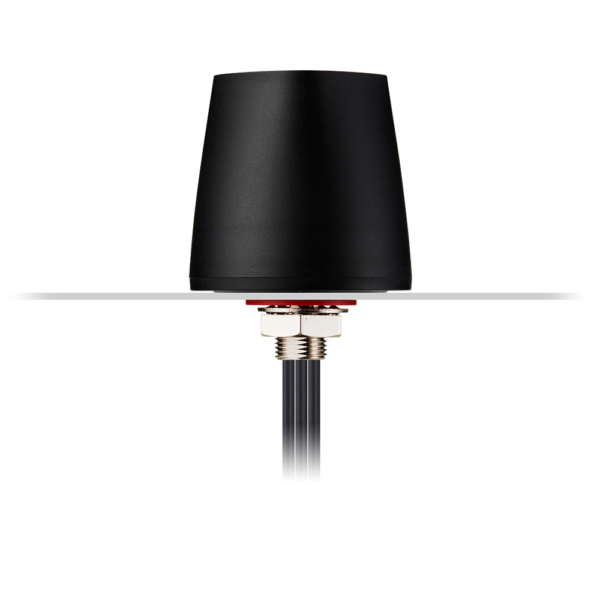

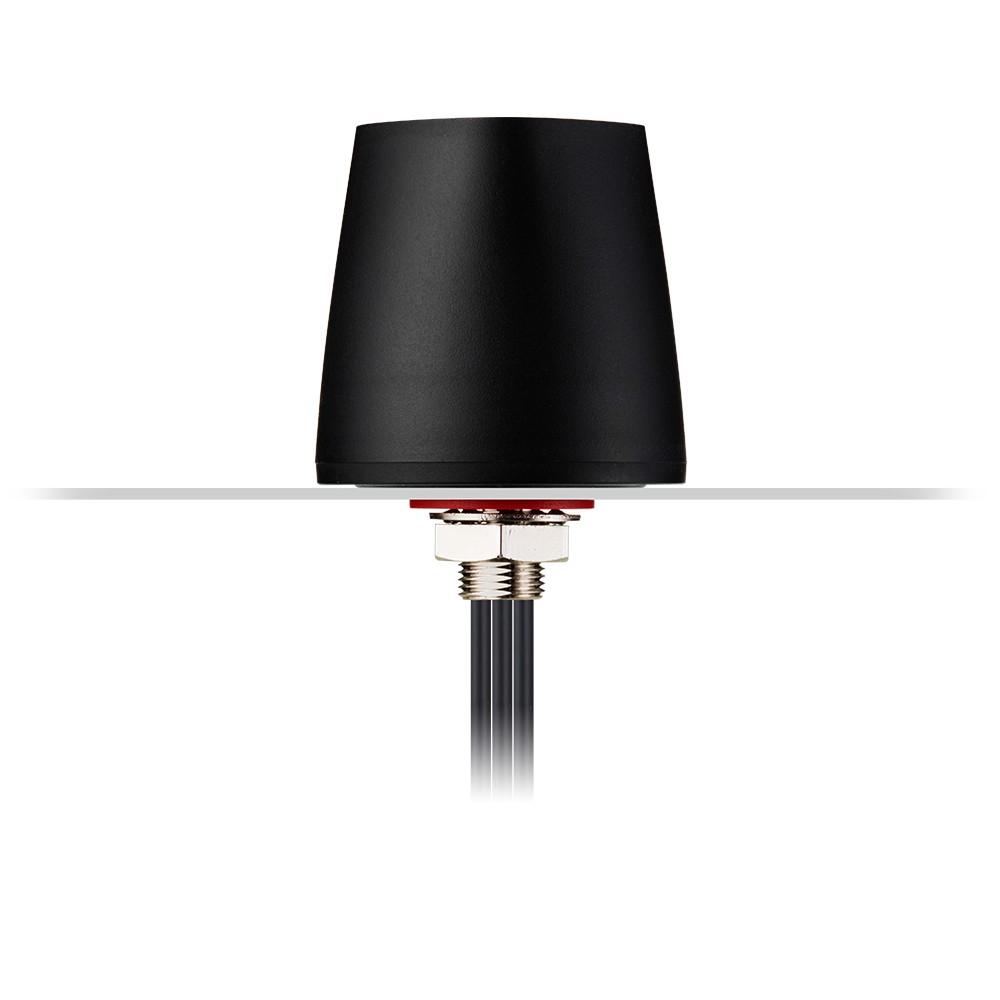

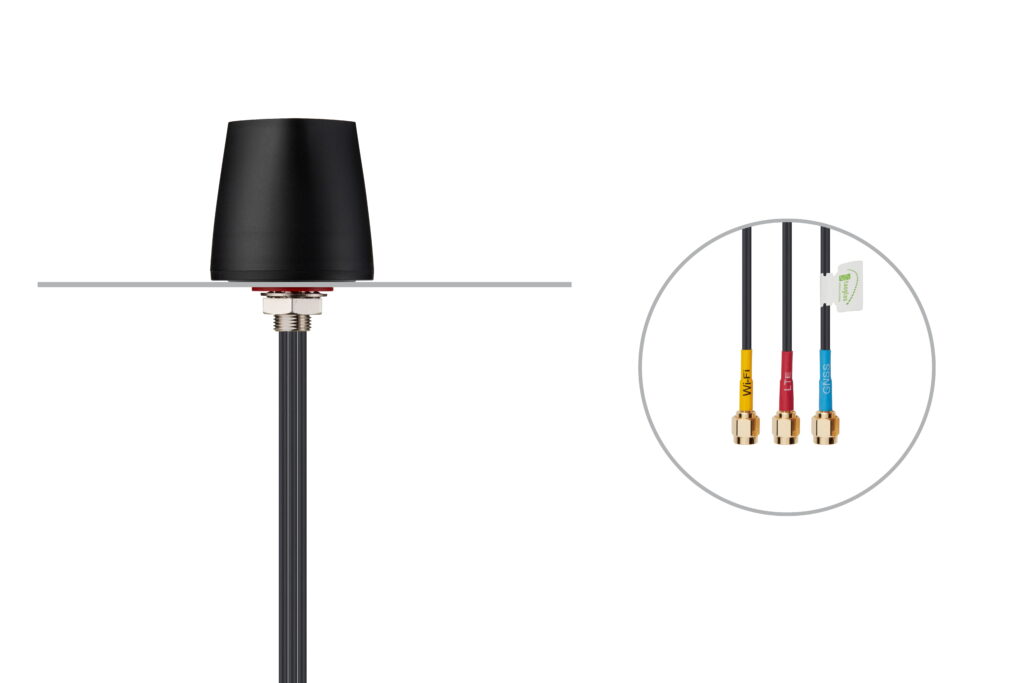

Image MA145.A.LBC.001

MA145.A.LBC.001

MA145 – Olympian II 3-in-1 GNSS, 5G/4G & Wi-Fi Permanent Mount Antenna

Overview

3-in-1 GNSS, 5G/4G & Wi-Fi Permanent Mount Antenna

The Taoglas Olympian II, MA145 is a high performance 3-in-1 combination GNSS, 5G/4G & Wi-Fi permanent mount antenna in a compact housing at only 48.5mm tall and 50mm in diameter. It is ideal for external use on vehicles and outdoor assets requiring GNSS, Cellular and Wi-Fi connectivity.

The GPS/GLONASS/Galileo antenna has stable gain and radiation patterns on all bands. The 5G/4G antenna, covers all worldwide LTE bands, includes many sub 6GHz, 5G FR1 bands and also includes fallback to 3G/2G bands where required. The Wi-Fi antenna is dual band covering both 2.4 and 5.8GHz. The MA145 antenna can be mounted on metal and plastic structures but if the lower frequency bands are required, it functions best when mounted on a metal ground-plane.

The antenna does work well with short cable lengths below 1m on plastic structures, however, Taoglas recommend a minimum of 1m cable lengths for stable antenna performance. When mounted on a ground-plane, the MA145 functions well at all frequencies with cables up to 3 meters in length.

The IP67 rated enclosure is made from a durable, UV resistant ABS material that makes it resistant to vandalism. An integrated rubber O-ring under the enclosure prevents water ingress under the antenna. It is mounted from the inside of the user device enclosure and the small thread allows for installation in situations where space is minimal.

Typical applications include:
– Smart Metering and Remote Monitoring
– Digital Signage
– Transportation and Telematics

Customized cable length and connectors are available, contact your regional Taoglas Customer Support Team for further information.

Note: The MA145 can be mounted on a metal enclosure but it is not suitable for mounting on a metal enclosure where the cable will be located inside the enclosure.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 3.31
Length (mm) 50
Width (mm) 50
Height (mm) 48.5
Weight (g) 100
